Instruments And Warning System

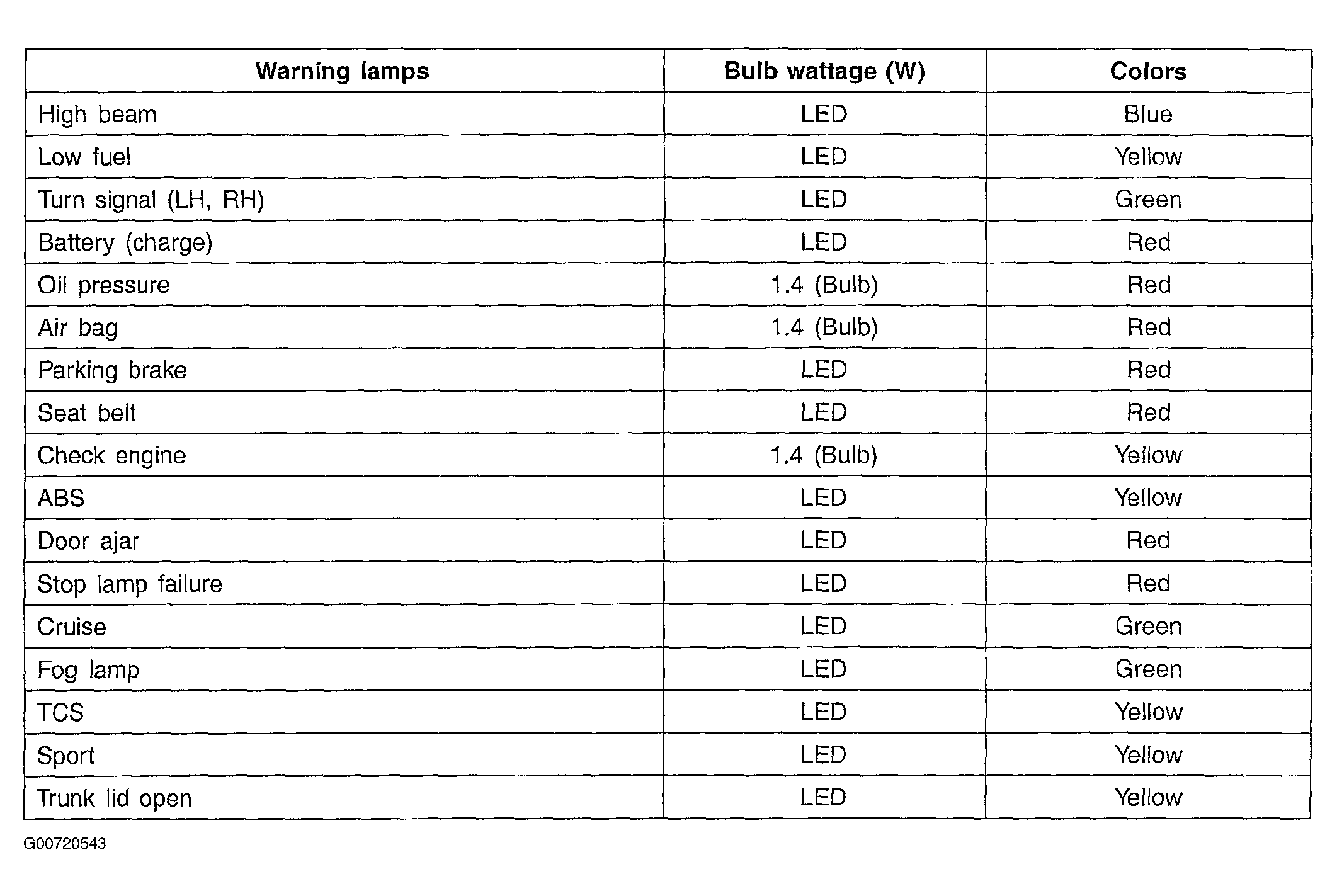

Fig 1: Warning Lamp Bulb & Color Identification Table (1 Of 2)
G00720543Courtesy of HYUNDAI MOTOR CO.

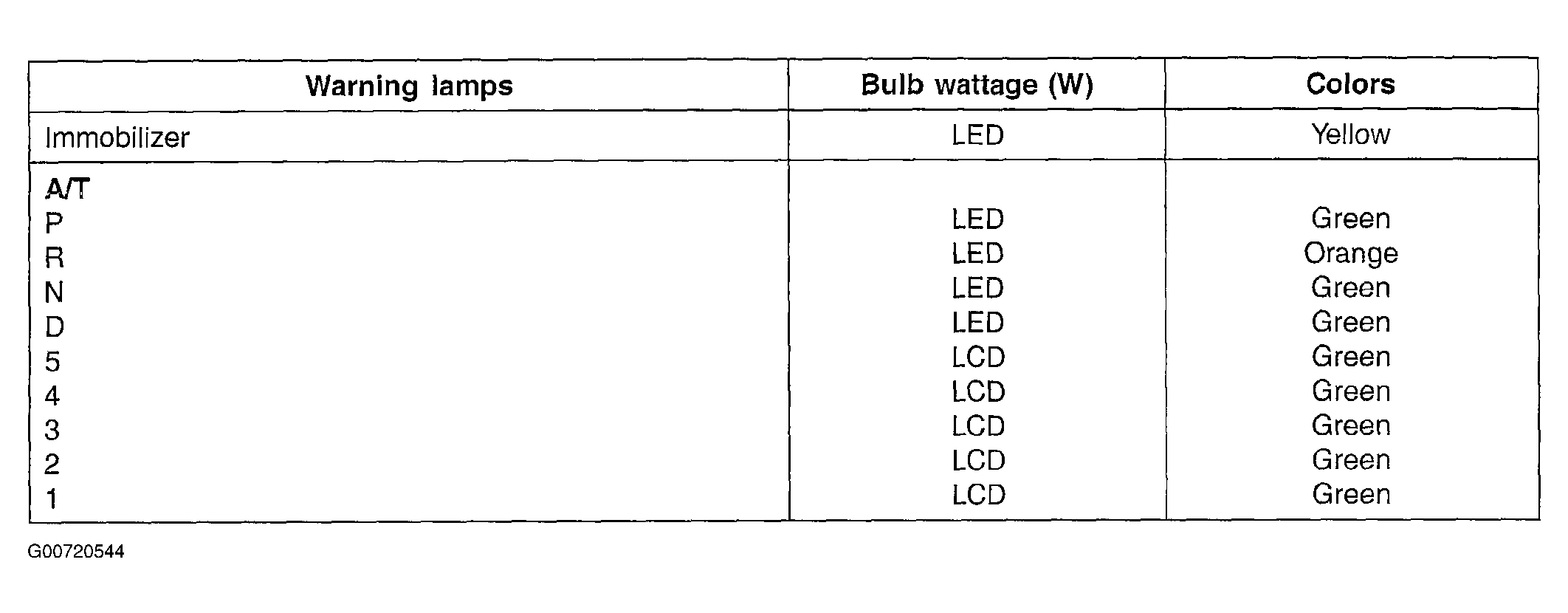

Fig 2: Warning Lamp Bulb & Color Identification Table (2 Of 2)
G00720544Courtesy of HYUNDAI MOTOR CO.
