Home
>>
Hyundai
>>
2003
>>
Tiburon GT, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transaxle System
>>
General
>>
Inspection Process For Trouble Symptoms
>>
Inspection Procedure 4
Inspection Procedure 4

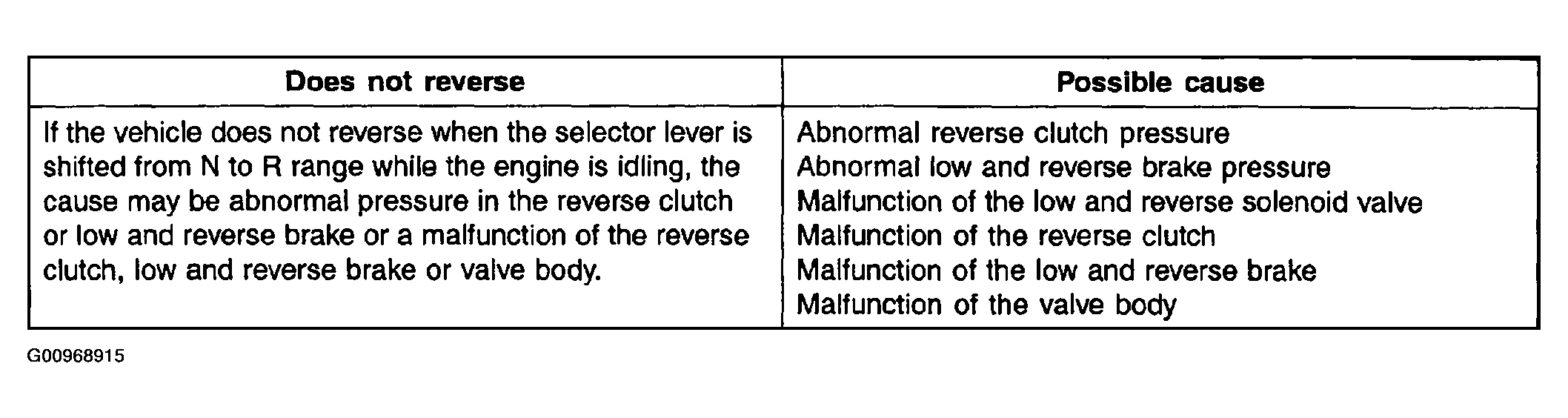

Fig 1: Vehicle Will Not Reverse Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

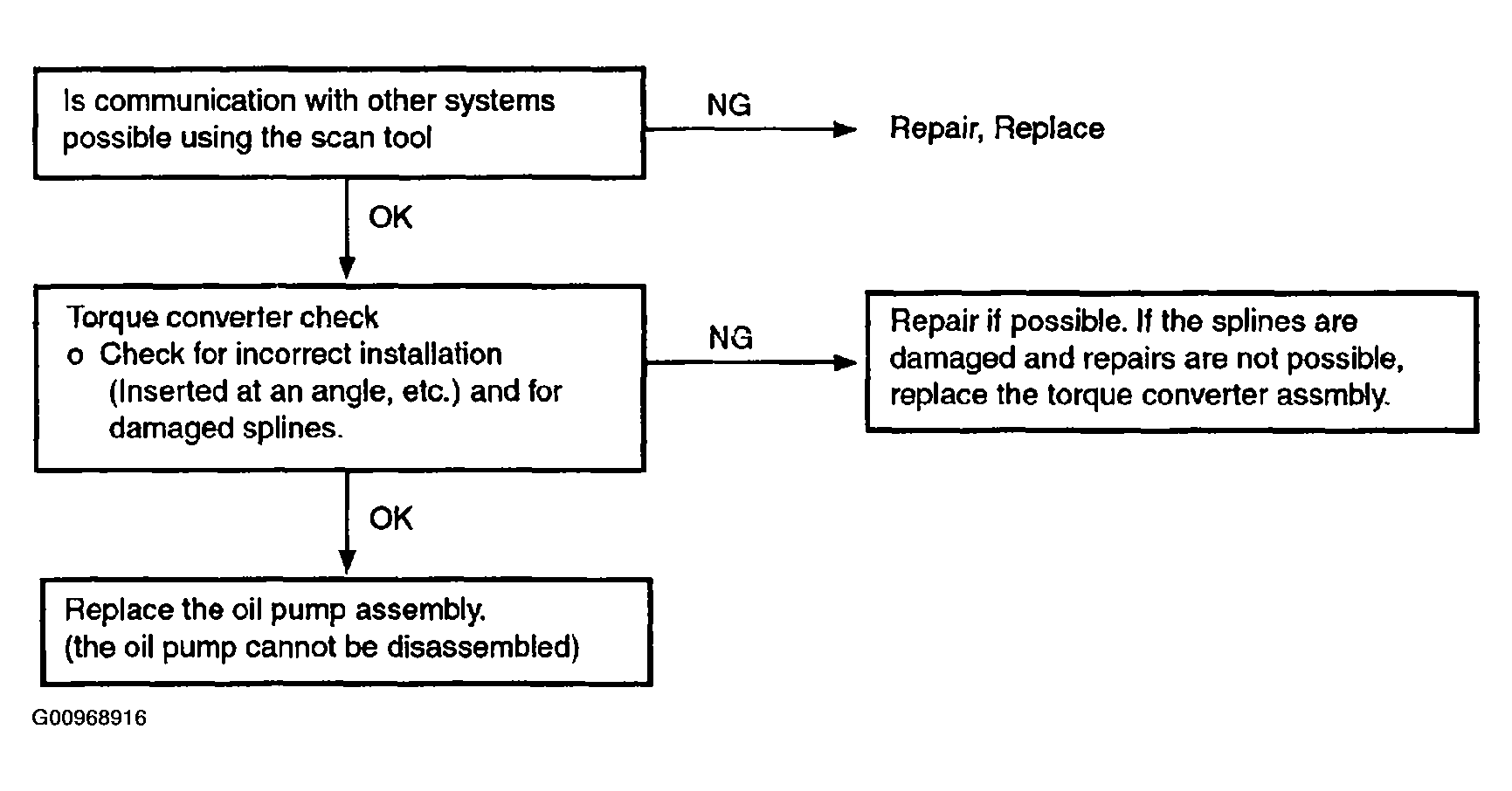

Fig 2: Vehicle Will Not Reverse Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
