Inspection Process For Trouble Symptoms
>>
Inspection Procedure 3
Inspection Procedure 3

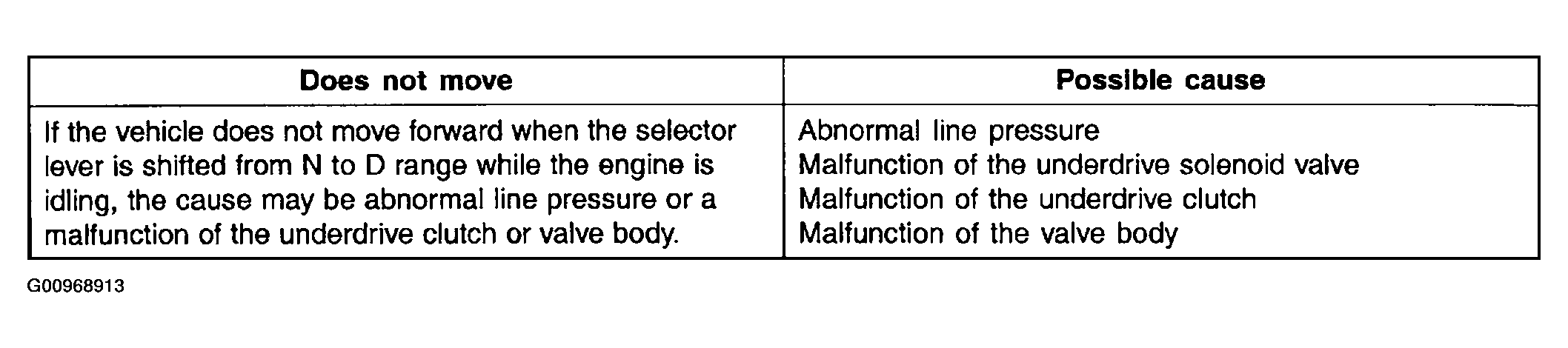

Fig 1: Vehicle Does Not Move Forward Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

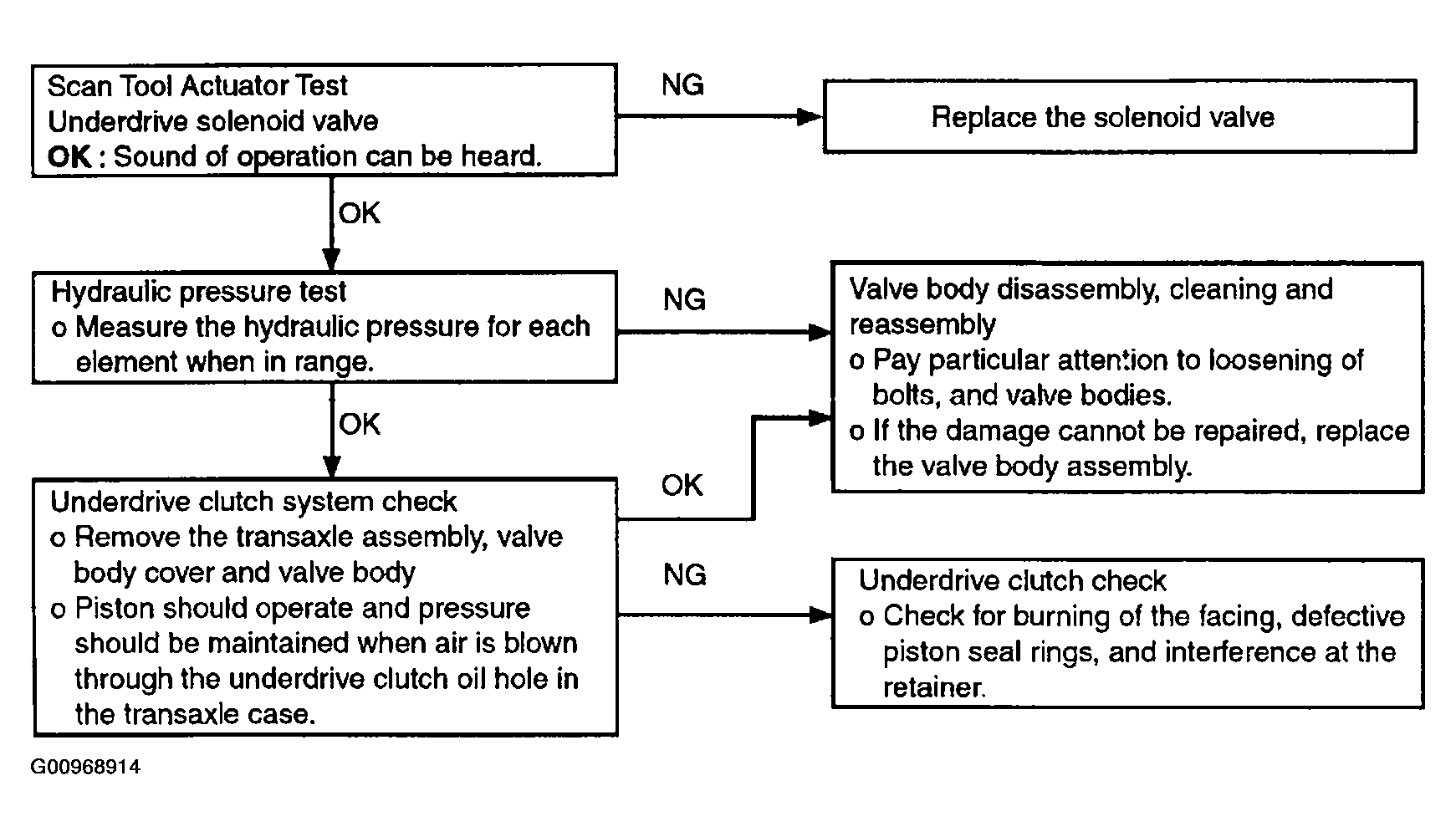

Fig 2: Vehicle Does Not Move Forward Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
