Inspection Process For Trouble Symptoms
>>
Inspection Procedure 2
Inspection Procedure 2

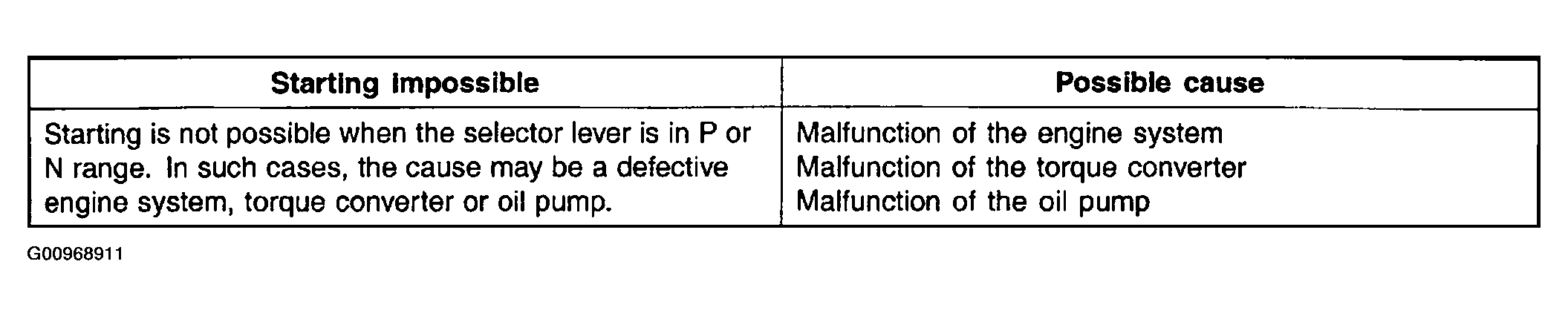

Fig 1: No Start Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

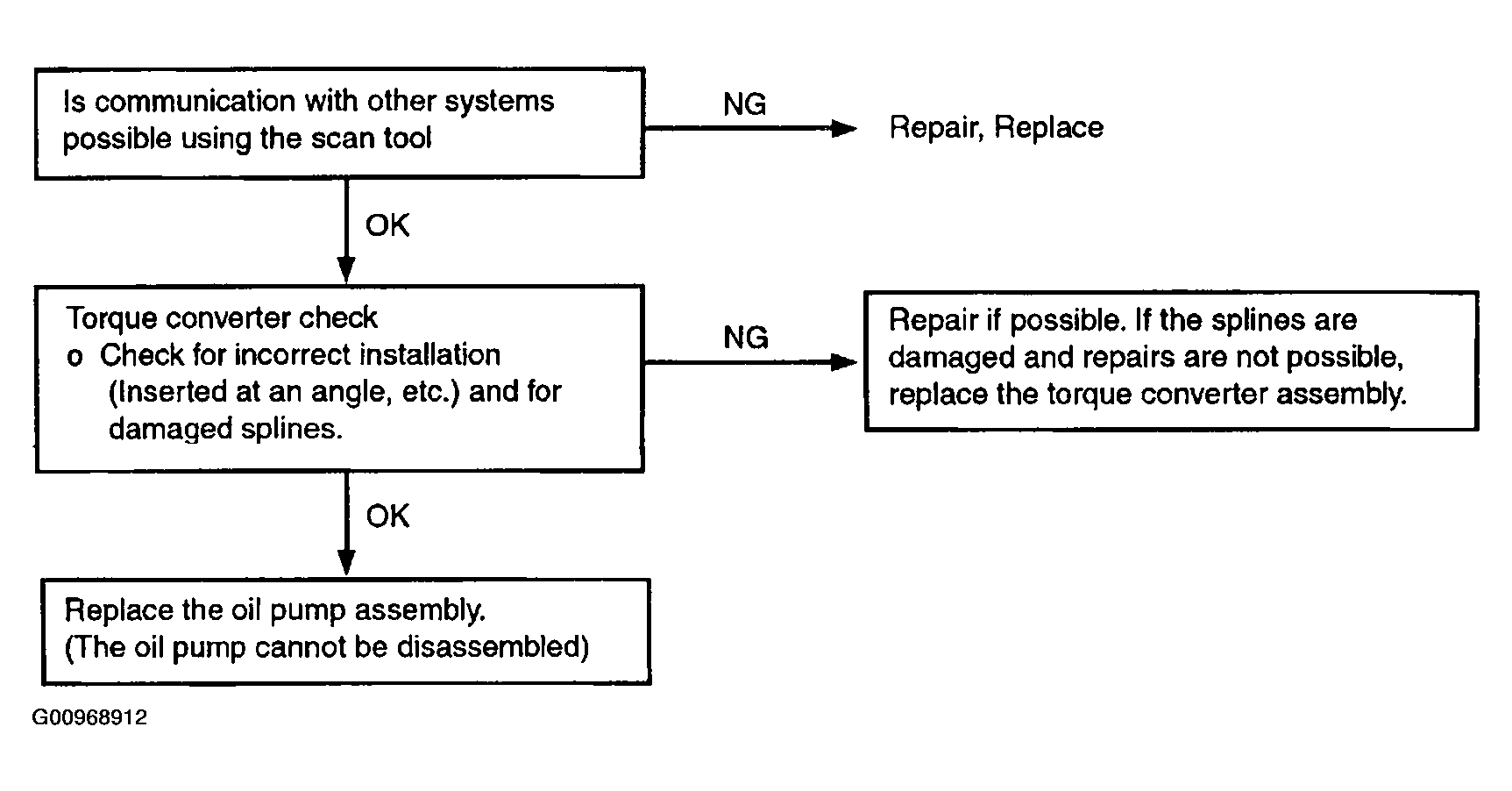

Fig 2: No Start Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
