Inspection Process For Trouble Symptoms
>>
Inspection Procedure 15
Inspection Procedure 15

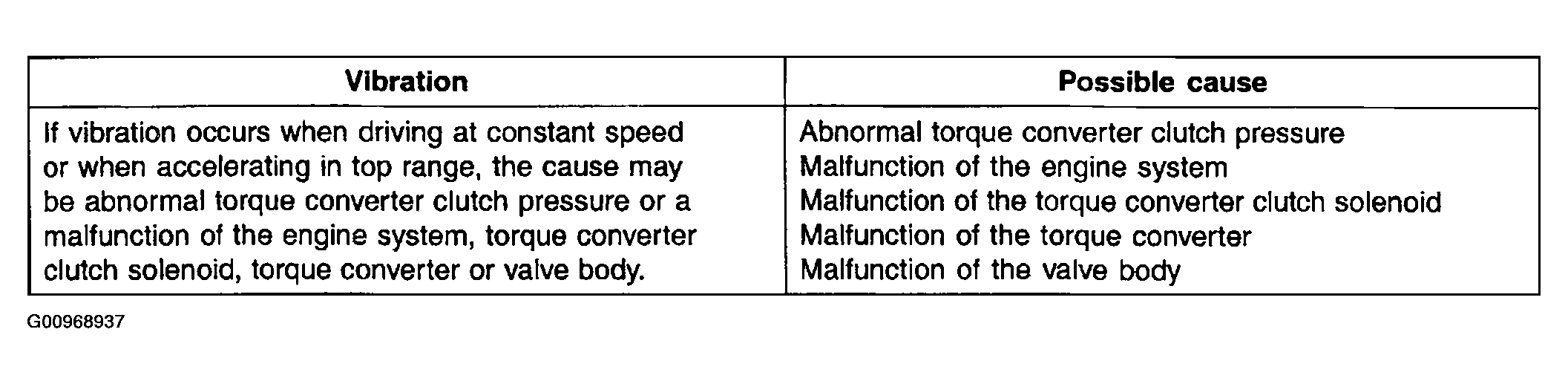

Fig 1: Vibration Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

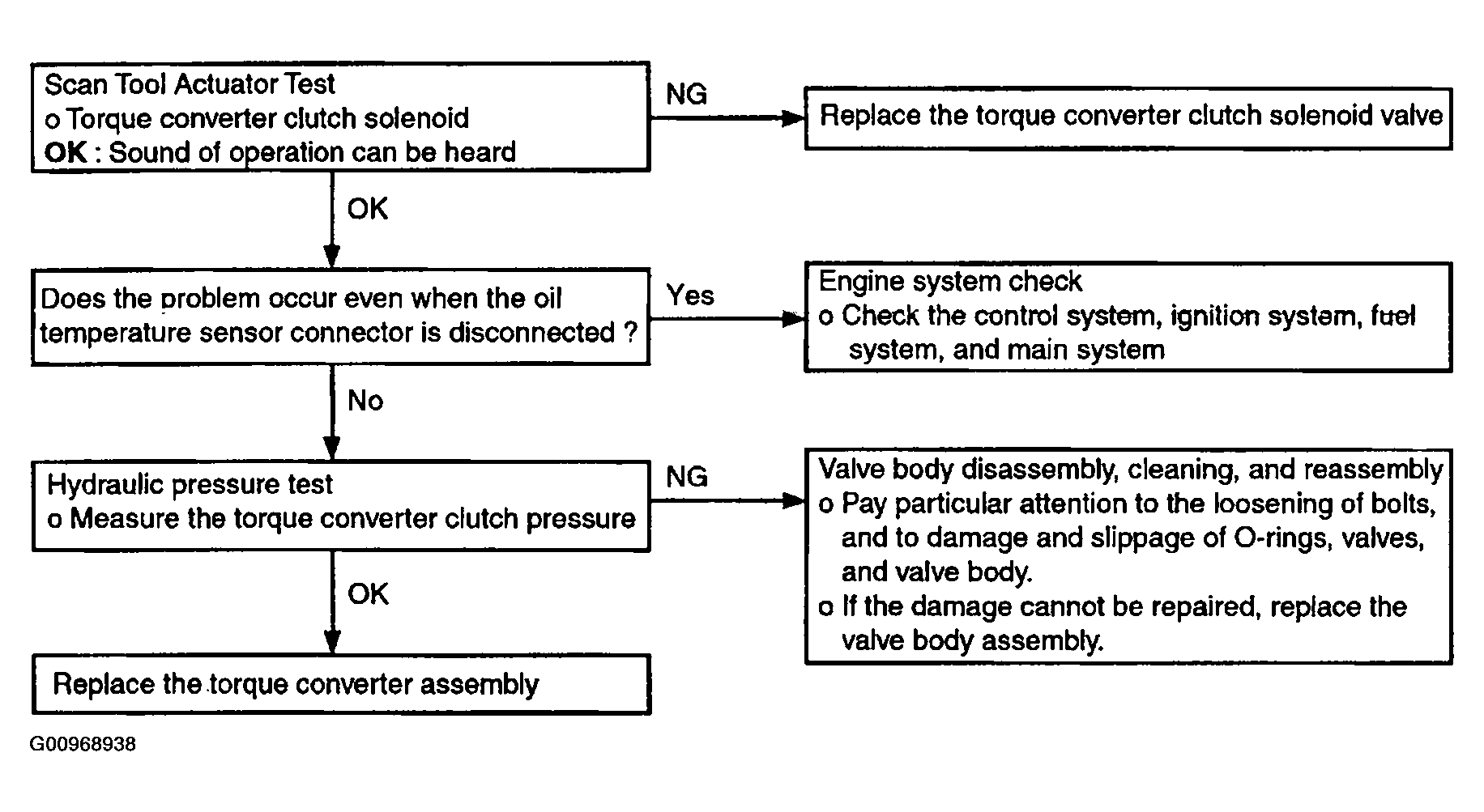

Fig 2: Vibration Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
