Inspection Process For Trouble Symptoms
>>
Inspection Procedure 14
Inspection Procedure 14

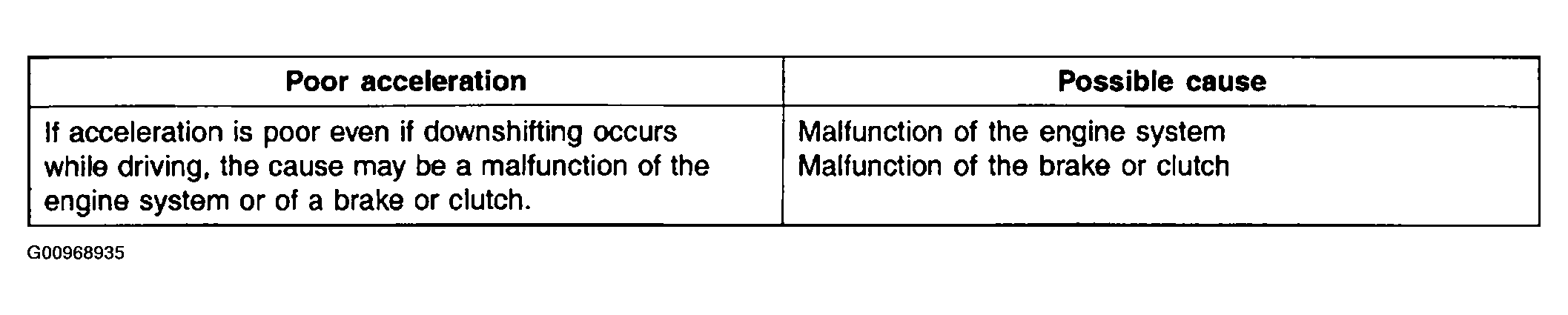

Fig 1: Poor Acceleration Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

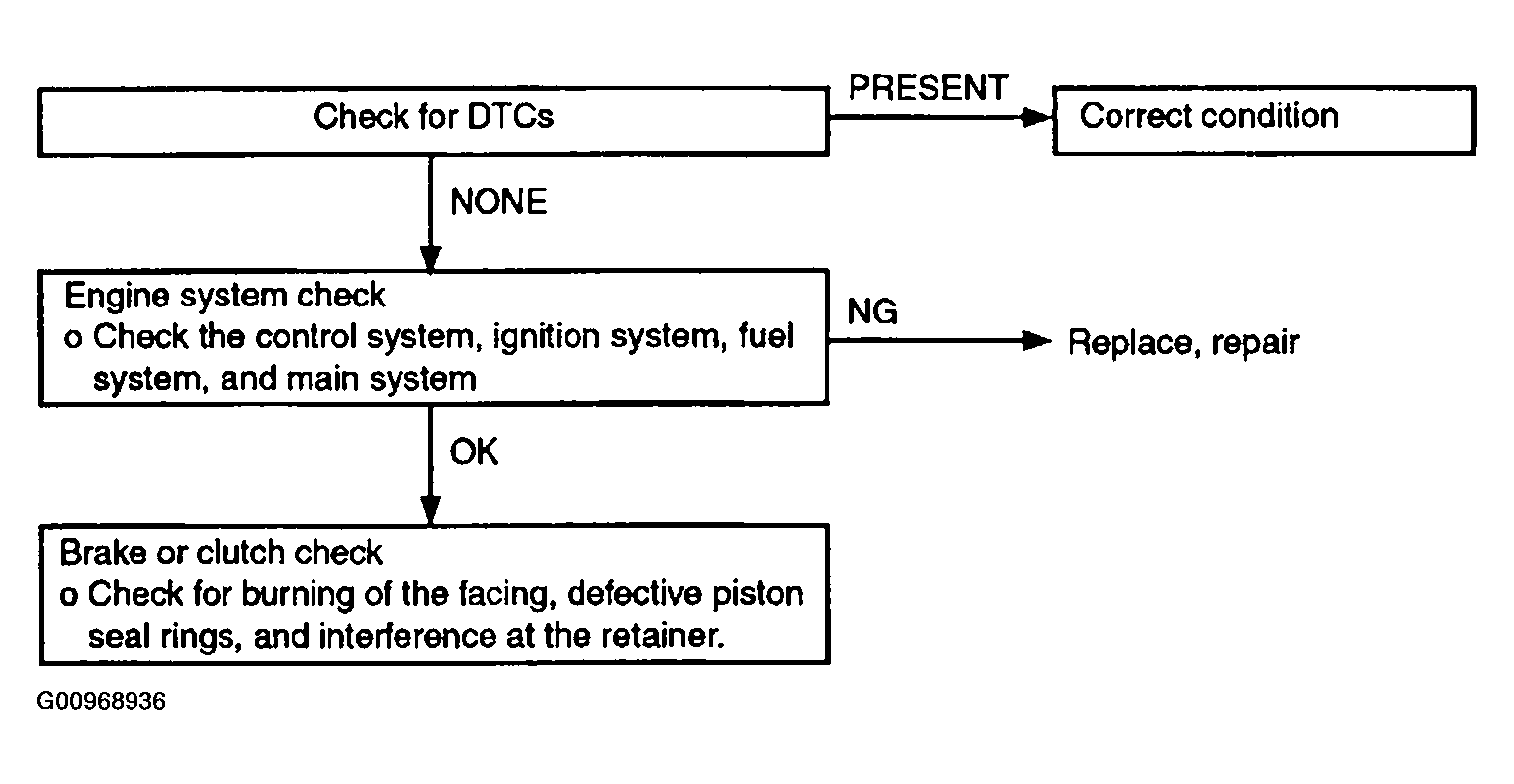

Fig 2: Poor Acceleration Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
