Inspection Procedure 13

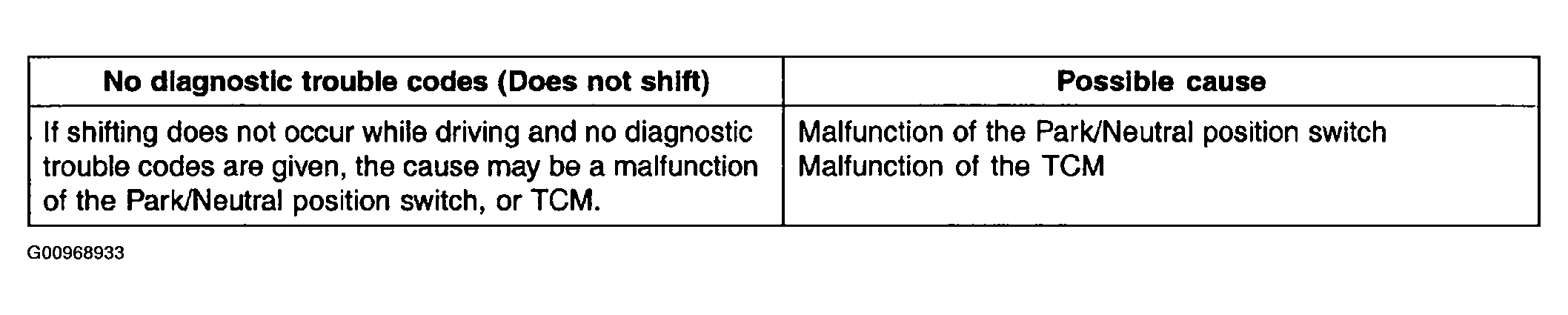

Fig 1: No Diagnostic Trouble Codes (Does Not Shift) Possible Causes Table
G00968933Courtesy of HYUNDAI MOTOR CO.

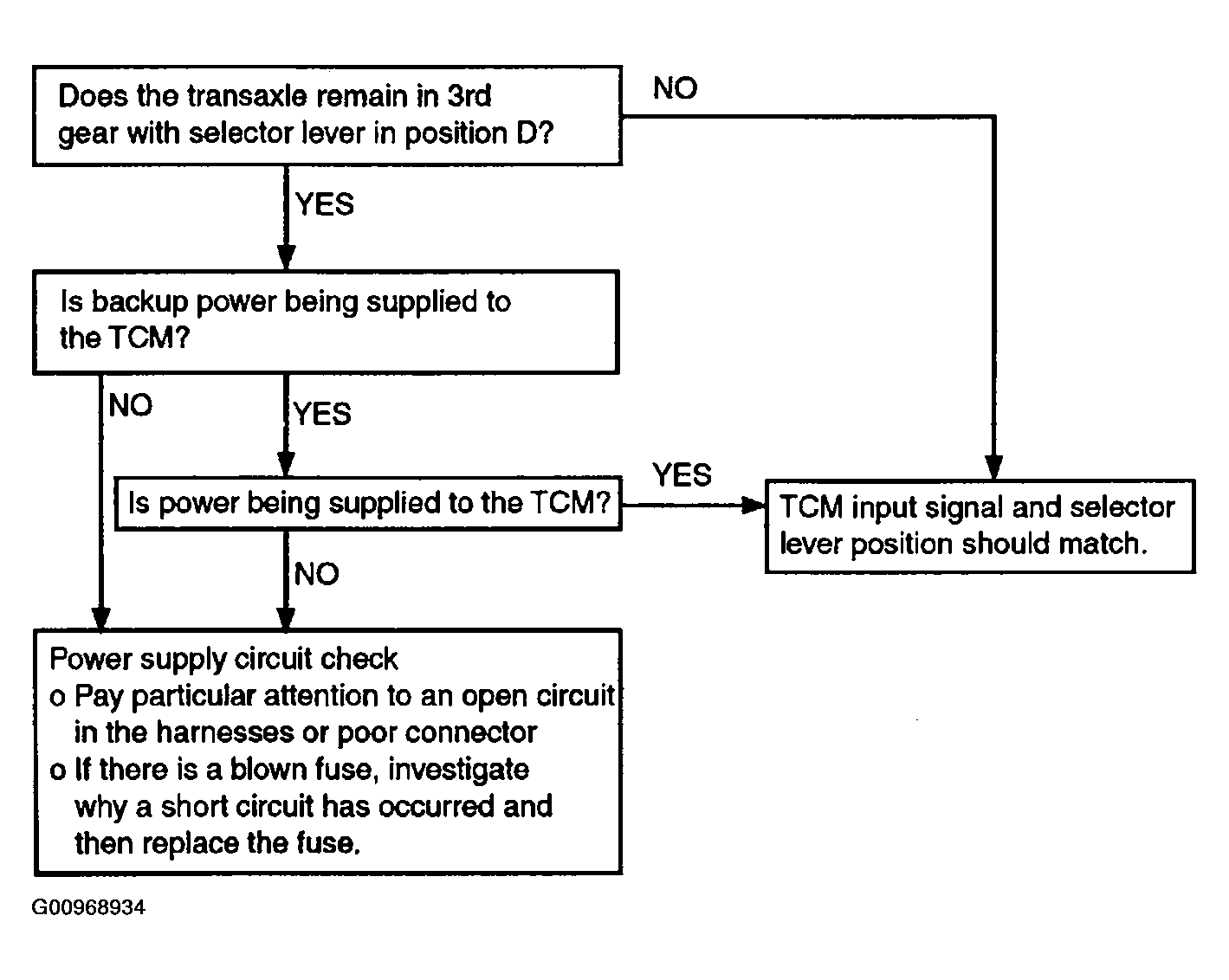

Fig 2: No Diagnostic Trouble Codes (Does Not Shift) Diagnostic Flow Chart
G00968934Courtesy of HYUNDAI MOTOR CO.
