Inspection Procedure 1

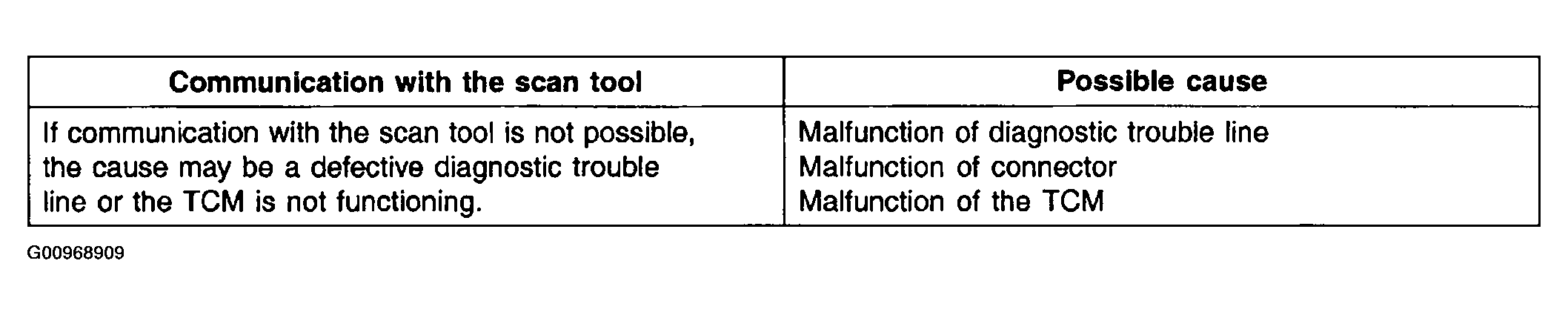

Fig 1: No Communication With Scan Tool Possible Causes Table
G00968909Courtesy of HYUNDAI MOTOR CO.

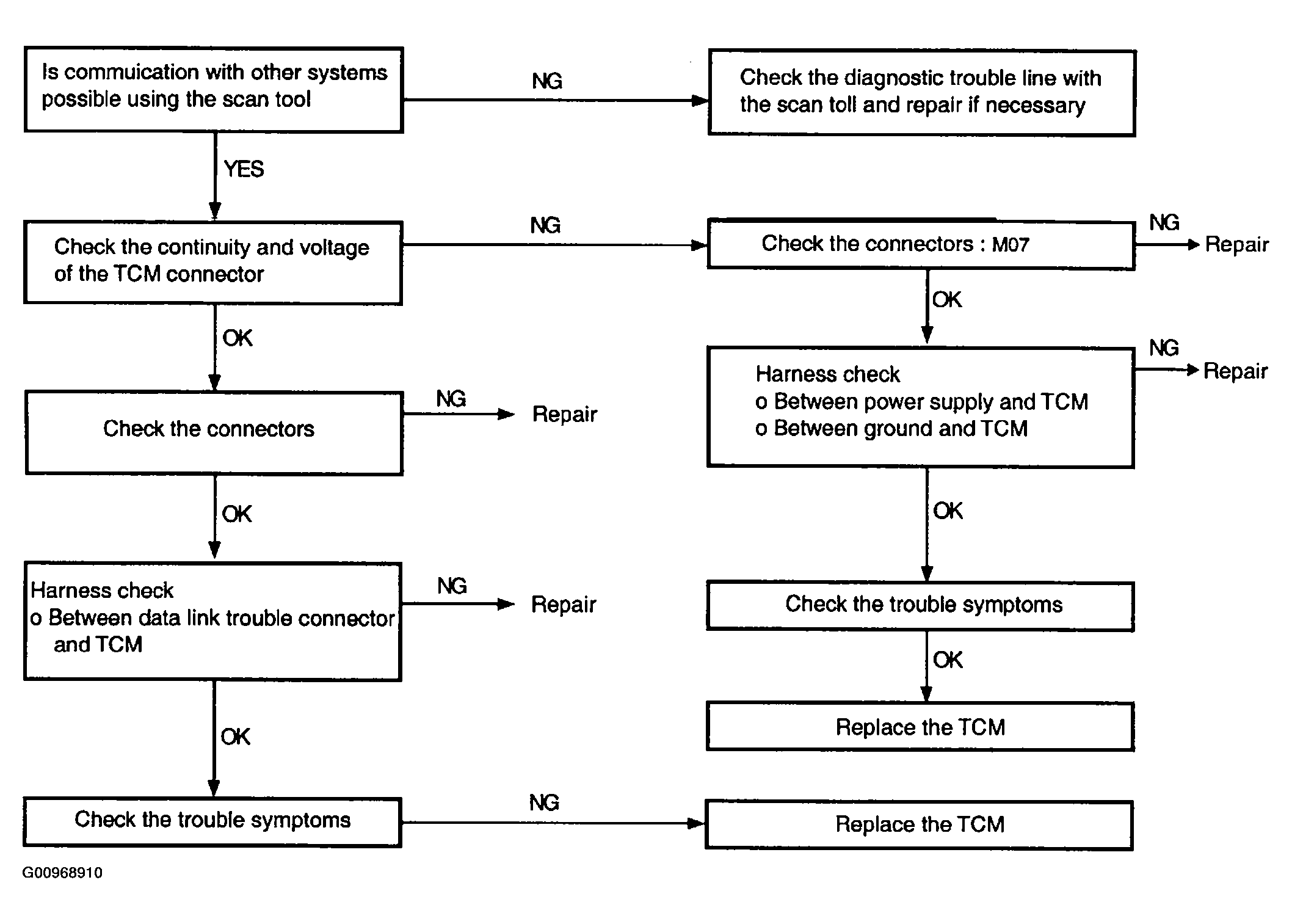

Fig 2: No Communication With Scan Tool Diagnostic Flow Chart
G00968910Courtesy of HYUNDAI MOTOR CO.
