Manual Transaxles: Overhaul: Differential: Reassembly

  1. Press on the differential side bearing using special tool (09431-2C500).
    Fig 1: Pressing On The Differential Side Bearing
    G00969181Courtesy of HYUNDAI MOTOR CO.
  2. Assemble the differential case assembly to differential ring gear.

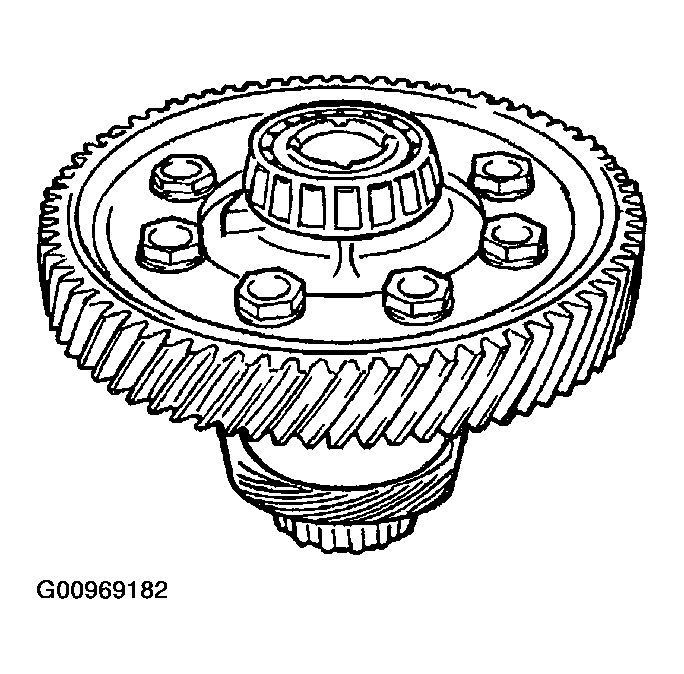

    Fig 2: Assembling Differential Case Assembly-To-Differential Ring Gear
    G00969182Courtesy of HYUNDAI MOTOR CO.
