Manual Transaxles: Overhaul: Differential: Component

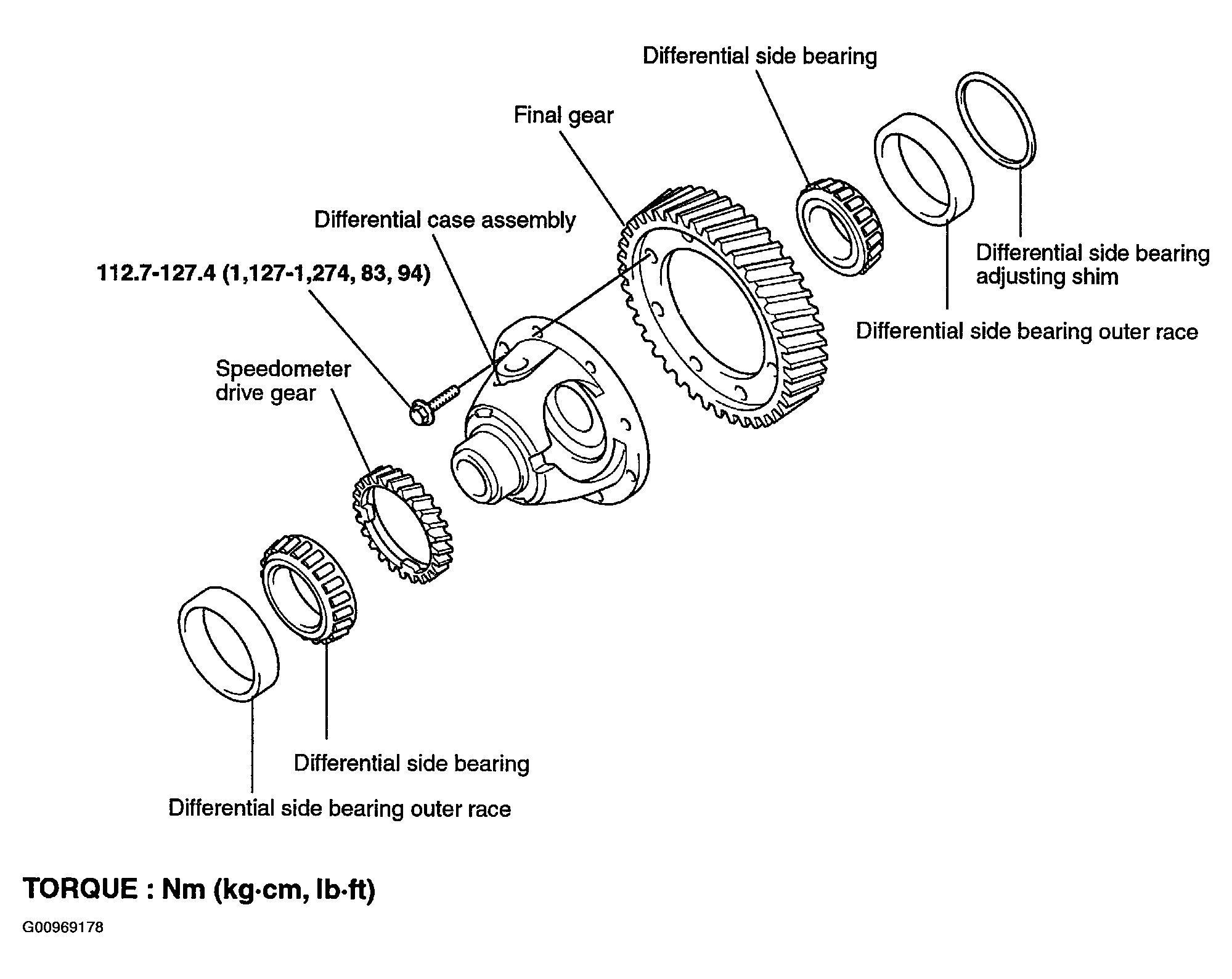

Fig 1: Differential Component

G00969178

Courtesy of HYUNDAI MOTOR CO.
