Evaporative Emission Control System: Components

WARNING: This page is about a different car, the 2004 Hyundai Tiburon. However, it is still accessible from the selected car via links, so may be relevant.

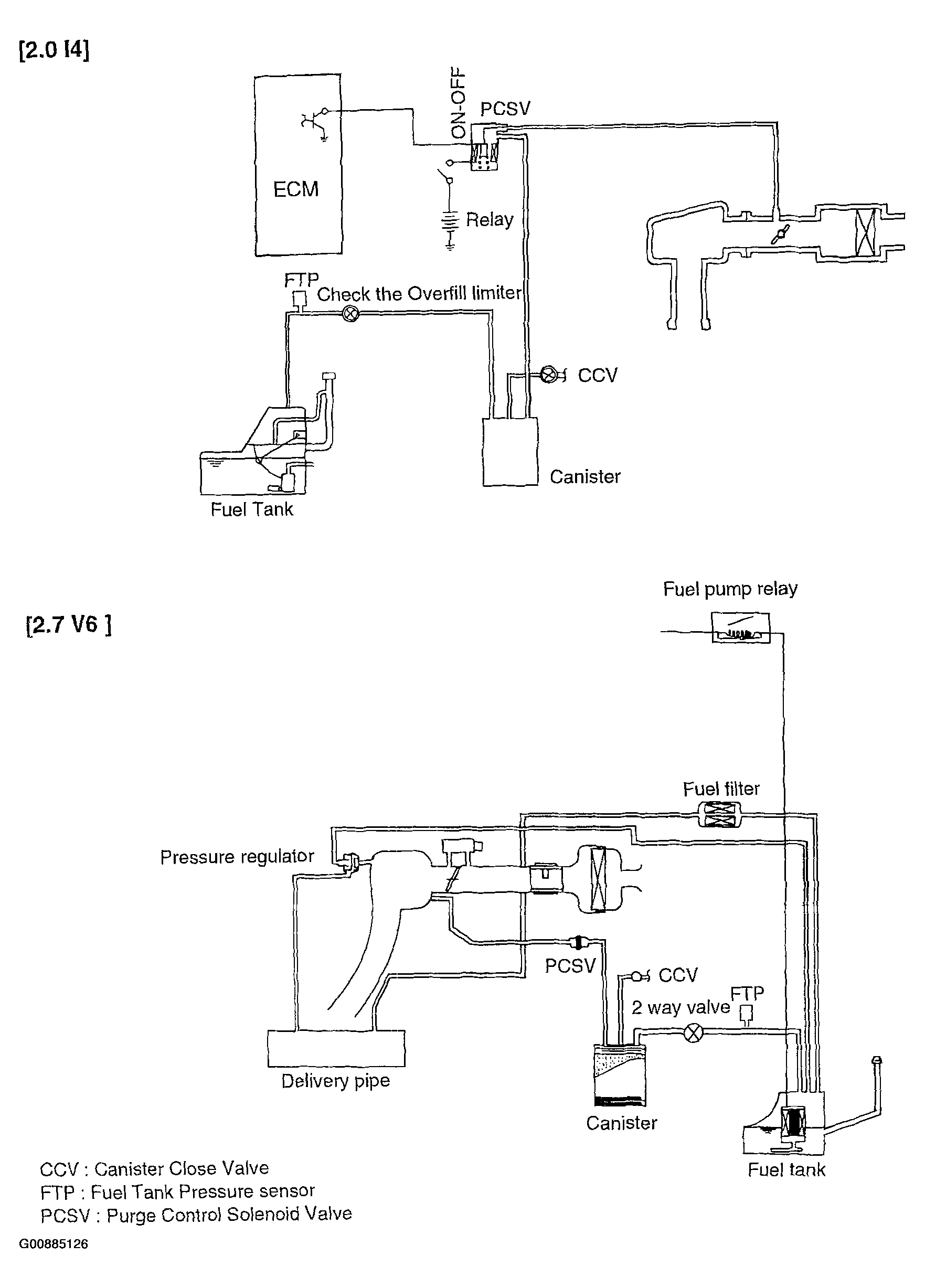

Fig 1: Identifying Evaporative Emission Control System
G00885126Courtesy of HYUNDAI MOTOR CO.
