Transaxle Range Switch Test (A/T)

For transaxle range switch continuity test, see Fig 1 .

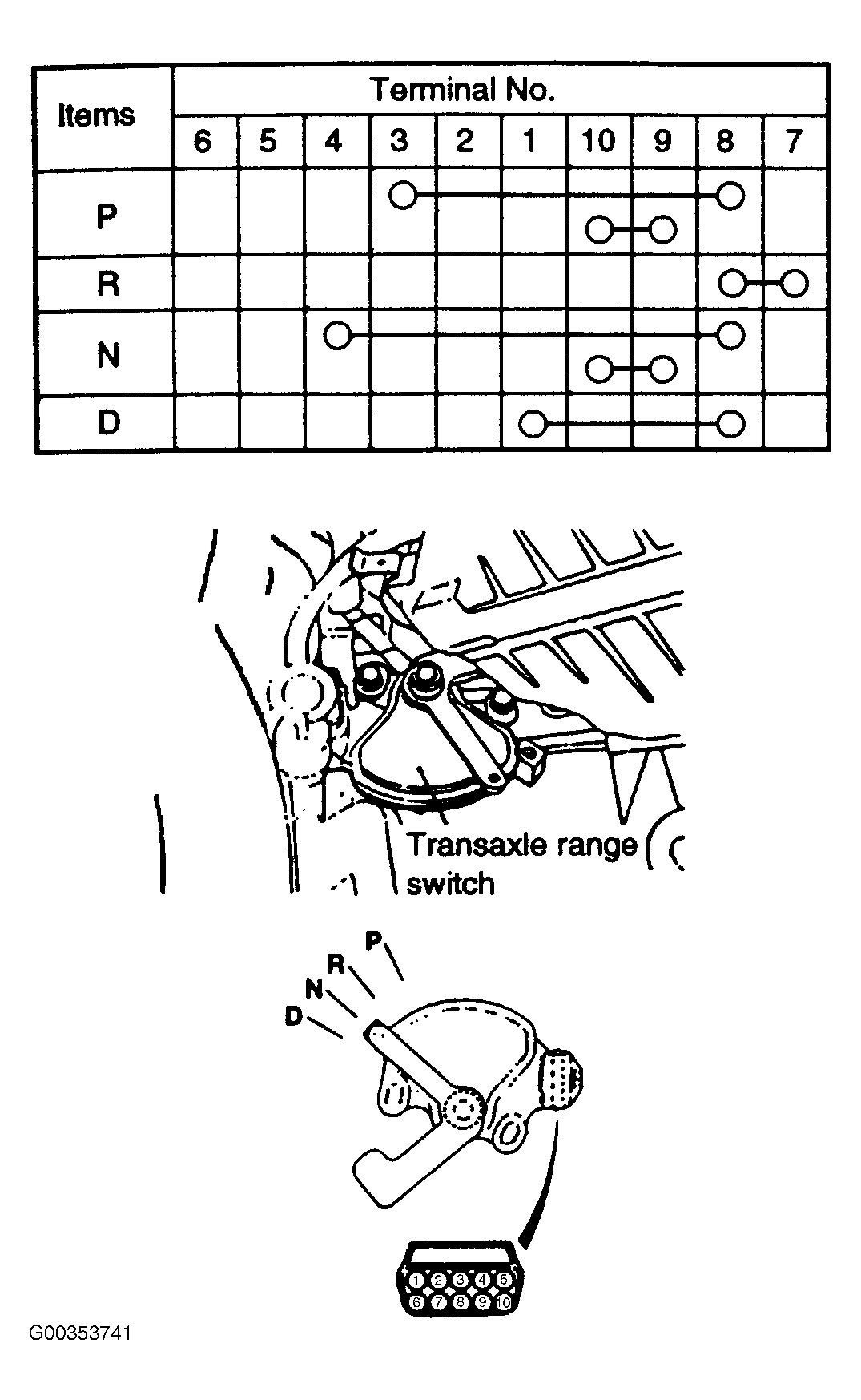

Fig 1: Testing Transaxle Range Switch

G00353741

Courtesy of HYUNDAI MOTOR CO.
