Rear Wheel Speed Sensor

  1. Remove the rear wheel speed sensor mounting bolt.

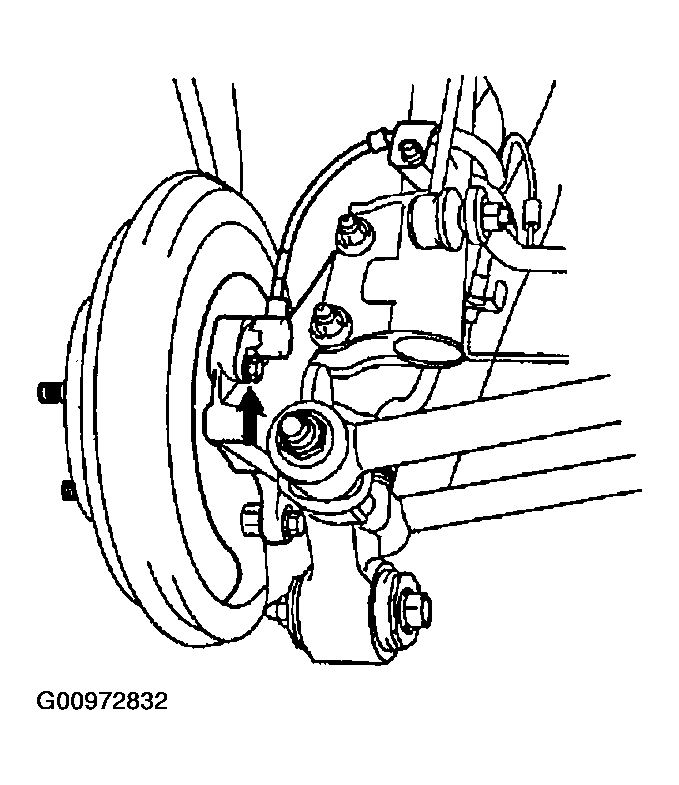

    Fig 1: Identifying Rear Wheel Speed Sensor Mounting Bolt
    G00972832Courtesy of HYUNDAI MOTOR CO.
  2. Remove the luggage trim and disconnect the wire connector from the rear wheel speed sensor.
    Fig 2: Identifying Wire Connector For The Rear Wheel Speed Sensor
    G00972833Courtesy of HYUNDAI MOTOR CO.
