Abs (Anti-Lock Brake System): Removal

Disconnect the double lock connector from the HECU.

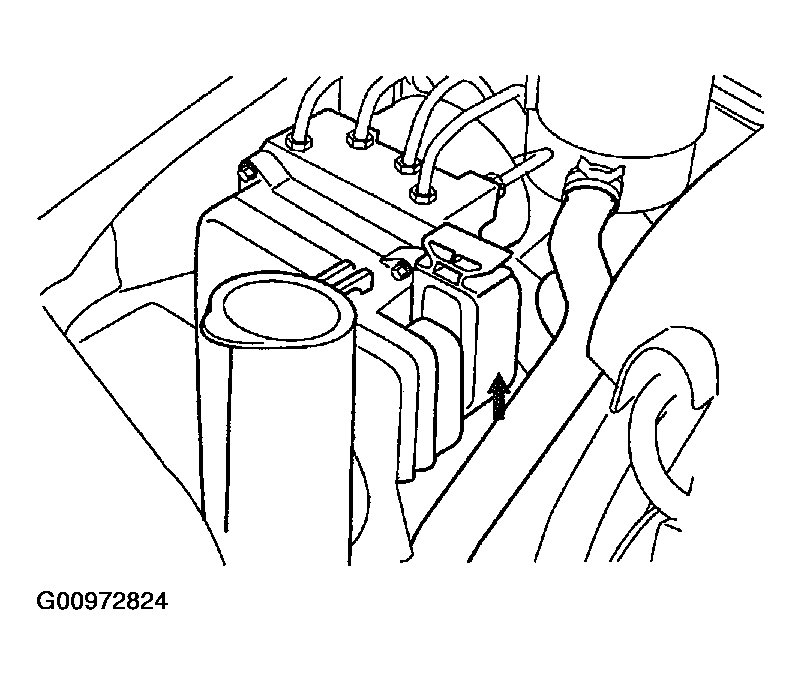

Fig 1: Identifying HECU Double Lock Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the brake tubes from the HECU.

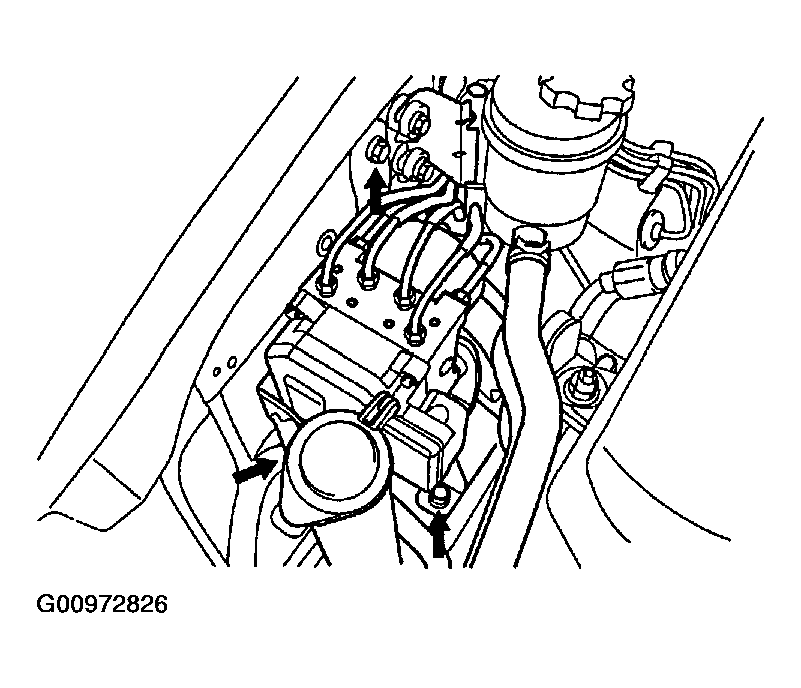

Fig 2: View Of HECU
Courtesy of HYUNDAI MOTOR CO.
Remove the HECU bracket mounting bolts and remove the HECU.
CAUTION:
1. Never attempt to disassemble the HECU.
2. The HECU must be transported and stored in an upright position and with the ports sealed. The HECU must not be drained.
Fig 3: Identifying HECU Bracket Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

Tightening torque
1. HECU bracket mounting bolts: 17-26 N.m (170-260 kg.cm, 12.5-19.1 lb.ft)
