Inspection At HECU Terminals

Fig 1: Identifying HECU Connector Terminals
G00972818Courtesy of HYUNDAI MOTOR CO.

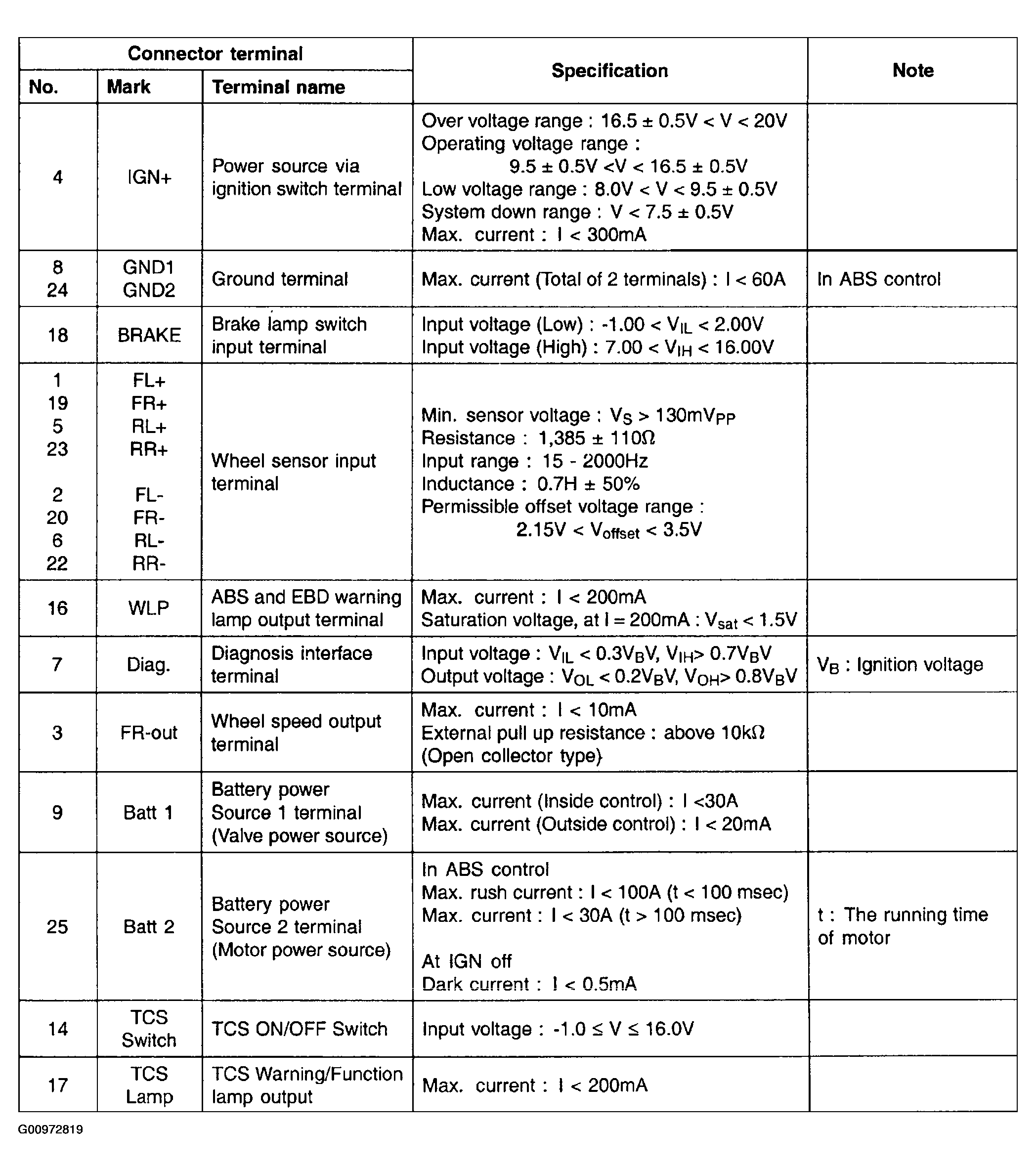

Fig 2: HECU Inspection Table (1 Of 2)
G00972819Courtesy of HYUNDAI MOTOR CO.

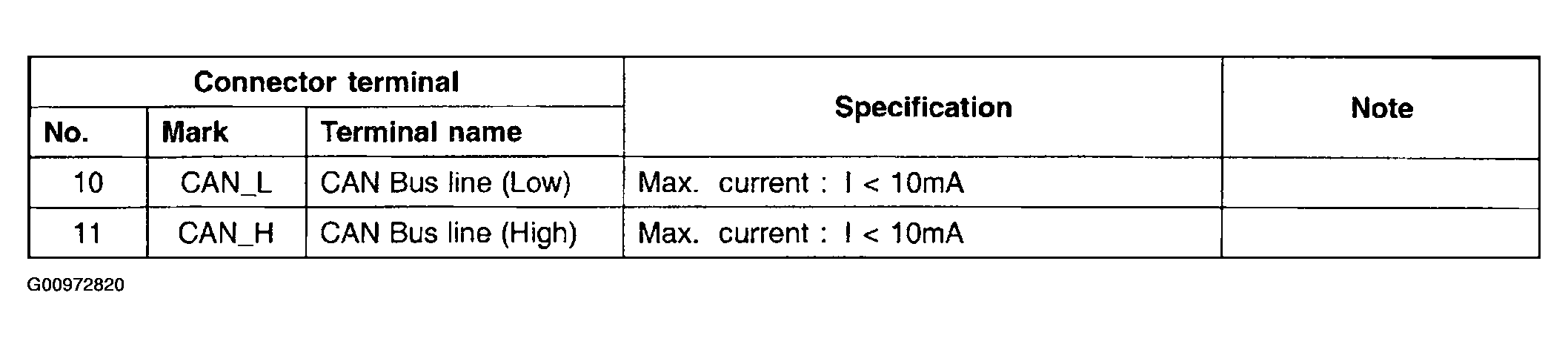

Fig 3: HECU Inspection Table (2 Of 2)
G00972820Courtesy of HYUNDAI MOTOR CO.
