HECU Block Diagram

  1. INPUT/OUTPUT DIAGRAM

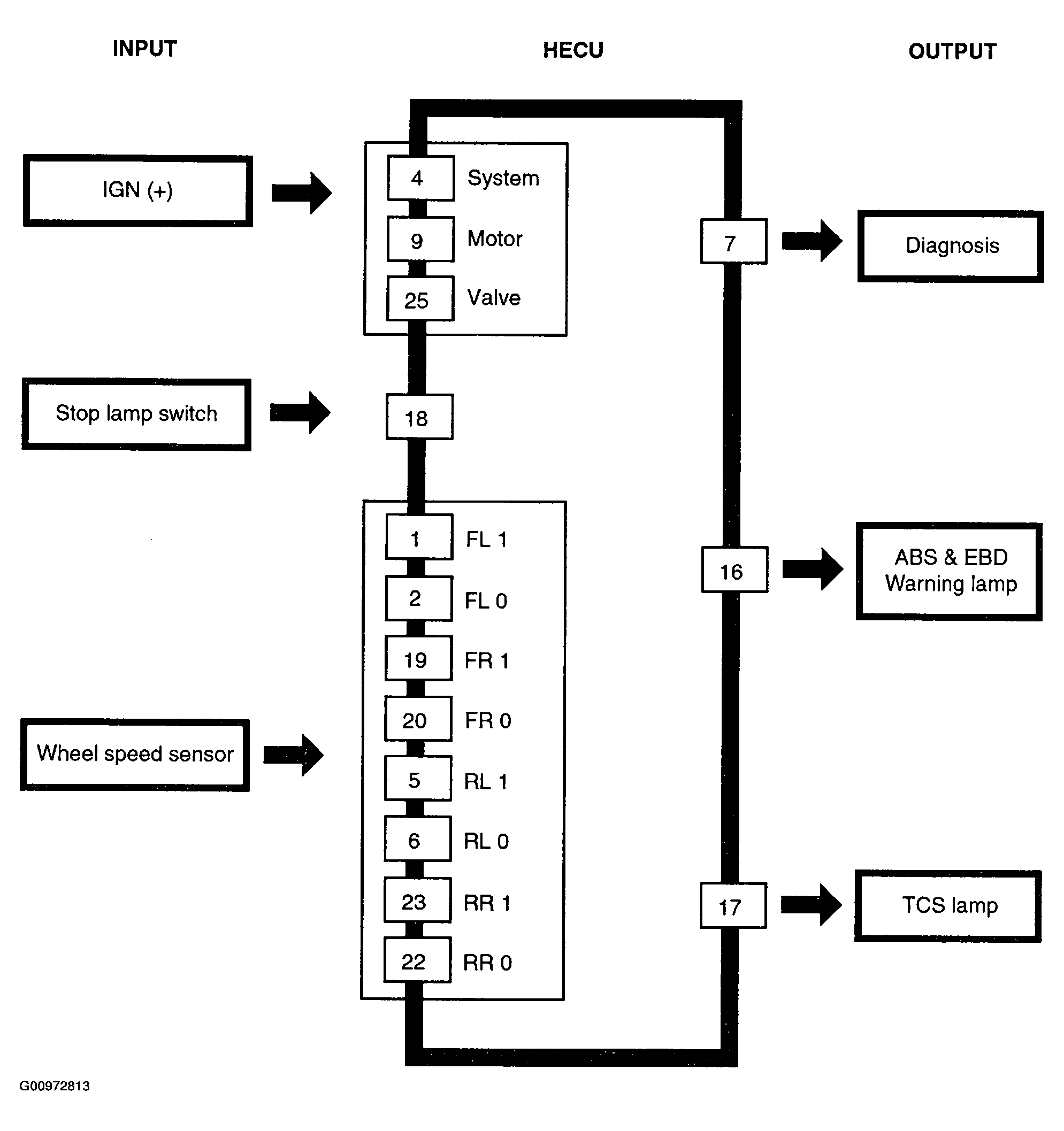

    Fig 1: HECU Input/Output Diagram
    G00972813Courtesy of HYUNDAI MOTOR CO.
  2. ABS ECU BLOCK DIAGRAM

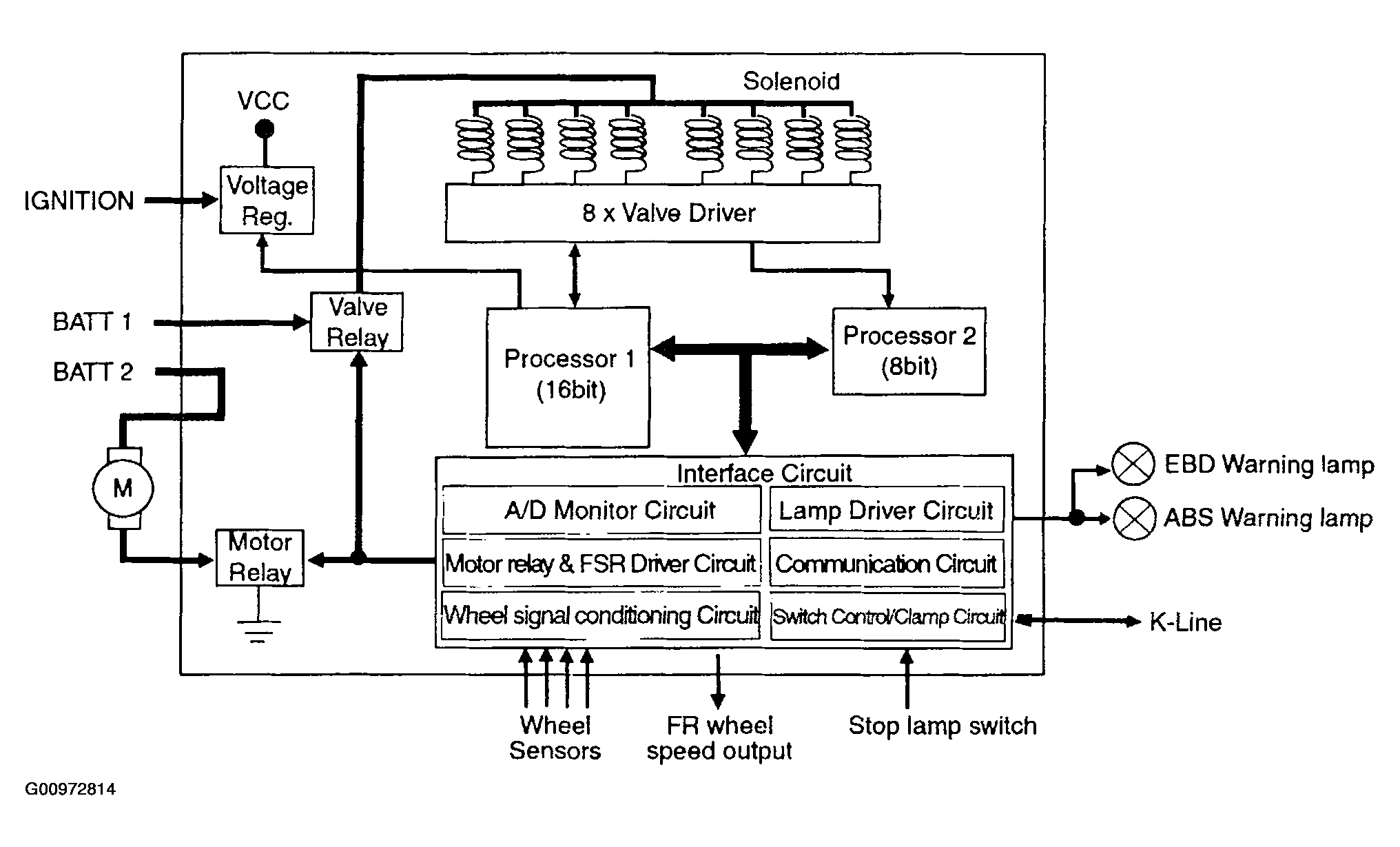

    Fig 2: ABS ECU Diagram
    G00972814Courtesy of HYUNDAI MOTOR CO.
  3. TCS ECU BLOCK DIAGRAM

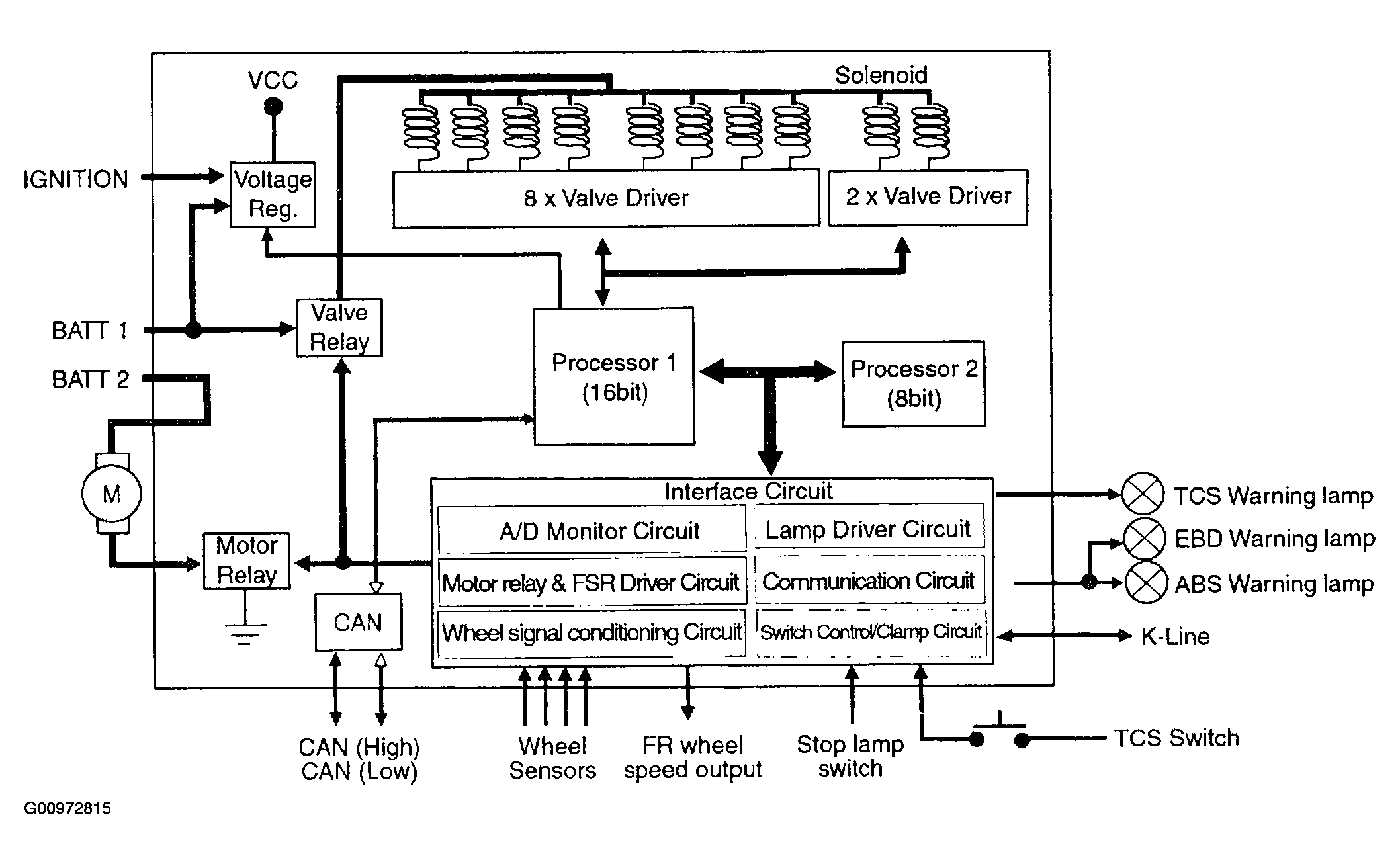

    Fig 3: TCS ECU Diagram
    G00972815Courtesy of HYUNDAI MOTOR CO.
