Head Lining

  1. To remove the headlining, first remove the following parts:
    1. Rear seat cushion.
    2. Rear seat back.
    3. Rear seat belt upper anchor mounting bolt.
    4. Rear seat back lower side bracket.
    5. Quarter inner trim.
    6. Front seat belt upper anchor mounting bolt.
    7. Center pillar upper trim.
    8. Front pillar trim.
  2. Remove the mounting screws from the over head console lamp.

    Disconnect the over head console lamp.

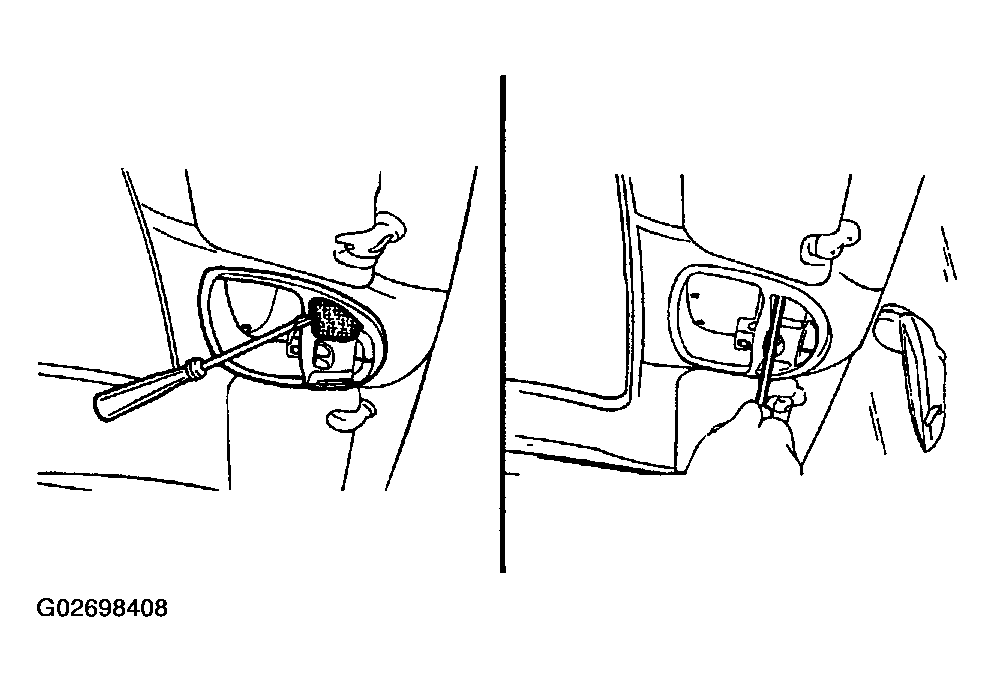

    Fig 1: Removing Overhead Console Lamp
    G02698408Courtesy of HYUNDAI MOTOR CO.
  3. Remove the mounting screws from the sun visor.
    Fig 2: Removing Sun Visor Mounting Screws
    G02698409Courtesy of HYUNDAI MOTOR CO.
  4. Remove the mounting clips from the roof rear cover trim.
    Fig 3: Removing Rear Roof Trim Cover
    G02698410Courtesy of HYUNDAI MOTOR CO.
  5. Remove the headlining mounting clips and remove the headlining.
    Fig 4: Removing Headliner
    G02698411Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
