Removal And Installation

1. Remove the tailgate frame upper trim.
   Fig 1: Removing Tailgate Frame Upper Trim

   Courtesy of HYUNDAI MOTOR CO.
2. Remove the tailgate glass side trim.
   Fig 2: Removing Tailgate Glass Side Trim

   Courtesy of HYUNDAI MOTOR CO.
3. Remove the tailgate trim panel.
   Fig 3: Removing Tailgate Trim Panel

   Courtesy of HYUNDAI MOTOR CO.
4. Remove the rear wiper arm.
   Fig 4: Removing Rear Wiper Arm

   Courtesy of HYUNDAI MOTOR CO.
5. Remove the hexagonal nut.
   Fig 5: Identifying Hexagonal Nut

   Courtesy of HYUNDAI MOTOR CO.
6. Remove the rear wiper motor mounting 3 bolts and disconnect the wire connector.

   Remove the rear wiper motor.

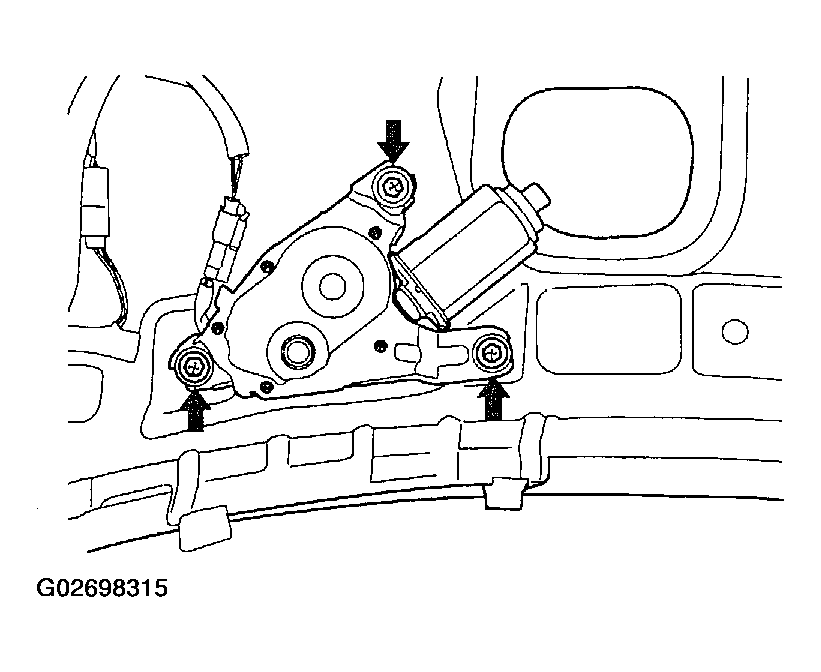

   Fig 6: Removing Wiper Motor Mounting Bolts

   Courtesy of HYUNDAI MOTOR CO.
7. Remove the tailgate lifter with ball joint.
   Fig 7: Removing Tailgate Lifter With Ball Joint

   Courtesy of HYUNDAI MOTOR CO.

Tightening torque:

1. 11-16 Nm (110-160 kg.cm, 8-12 lb.ft)
