Sun Roof: Reassembly

Install the spring base.

Fig 1: Installing Spring Base
Courtesy of HYUNDAI MOTOR CO.
Install the deflector assembly. After installing the clip, install the link base stopper.

Fig 2: Installing Deflector Assembly
Courtesy of HYUNDAI MOTOR CO.
Insert the shutting into the rail.

Fig 3: Installing Shutting Into Rail
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Do not confuse the left and right sides.
Install the cable to the guide assembly.

Fig 4: Installing Cable To Guide
Courtesy of HYUNDAI MOTOR CO.
Move the timing front edge to be aligned with the slide of the guide assembly.
Align the protrusion of the slide with the groove of the shutting.

Fig 5: Aligning Protrusion Of Slide With Groove Of Shutting
Courtesy of HYUNDAI MOTOR CO.
Grab the pin by finger to avoid interference with other parts.

Fig 6: Securing Pin With Finger
Courtesy of HYUNDAI MOTOR CO.
Face the protrusion of "shoe A" upward, the cushion of "shoe B" downward.

Fig 7: Facing Protrusion Of "Shoe A" Upward & Cushion Of "Shoe B" Downward
Courtesy of HYUNDAI MOTOR CO.
Fully insert the guide assembly into the rail.

Fig 8: Inserting Guide Assembly Into Rail
Courtesy of HYUNDAI MOTOR CO.
Completely push the slide until it touches the timing front using a screw driver.

Fig 9: Pushing Slide Until It Touches Timing Front
Courtesy of HYUNDAI MOTOR CO.
Insert the motor cable into the drive unit assembly tube.

Fig 10: Inserting The Motor Cable Into Drive Unit Assembly Tube
Courtesy of HYUNDAI MOTOR CO.
Install the drive unit assembly to the rail.

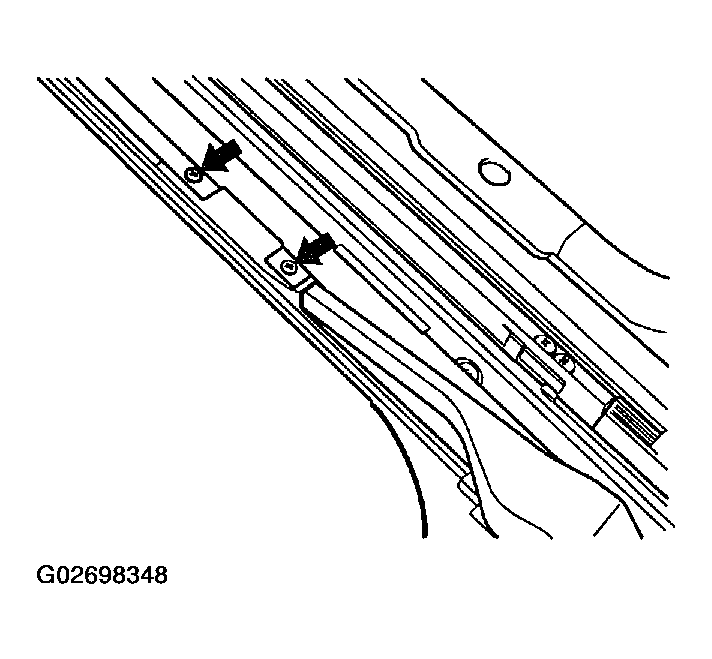

Fig 11: Installing Drive Unit Assembly To Rail
Courtesy of HYUNDAI MOTOR CO.
Install the sun shade.

Fig 12: Installing Sun Shade
Courtesy of HYUNDAI MOTOR CO.
Install the sun shade cam to the groove of the sun-roof rail.

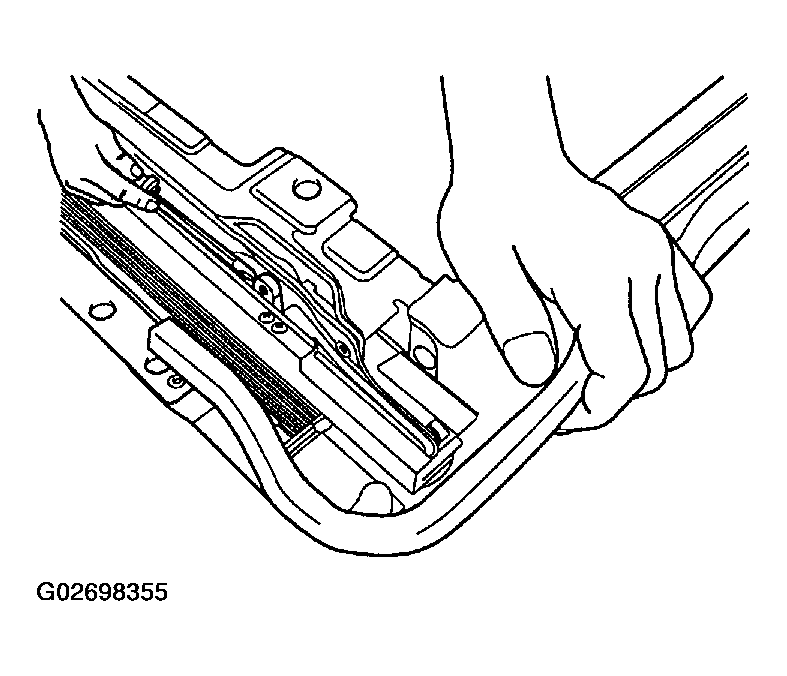

Fig 13: Installing Sun Shade Cam To Groove Of Sun-Roof Rail
Courtesy of HYUNDAI MOTOR CO.
Install the front drip.

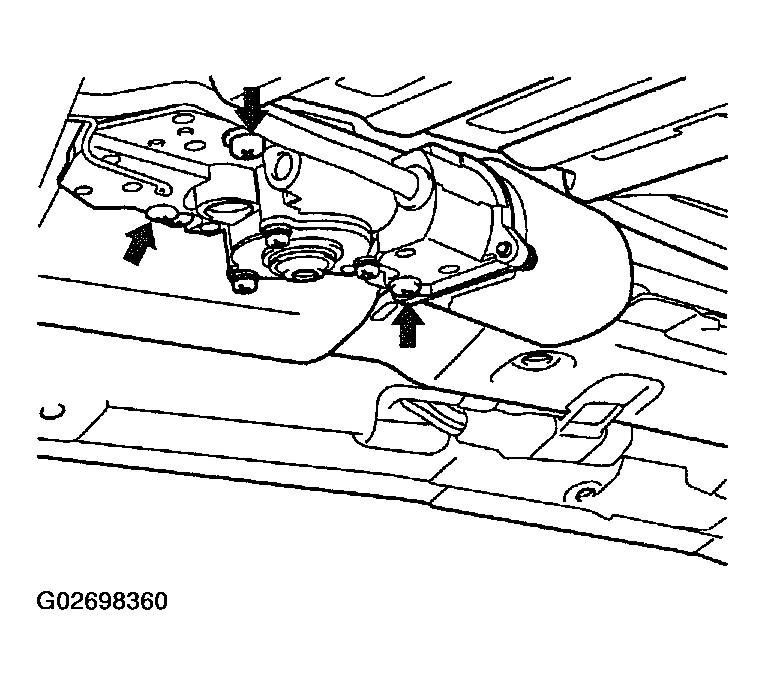

Install the motor and controller, and connect the connector.

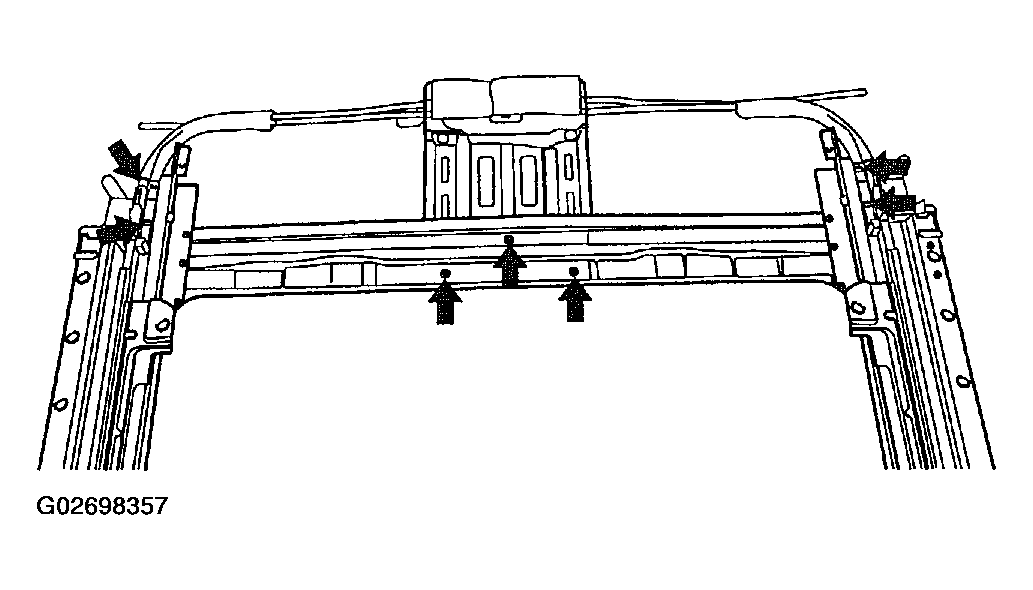

Fig 14: Installing Motor & Controller
Courtesy of HYUNDAI MOTOR CO.
