Sun Roof: Disassembly

  1. Remove the motor.

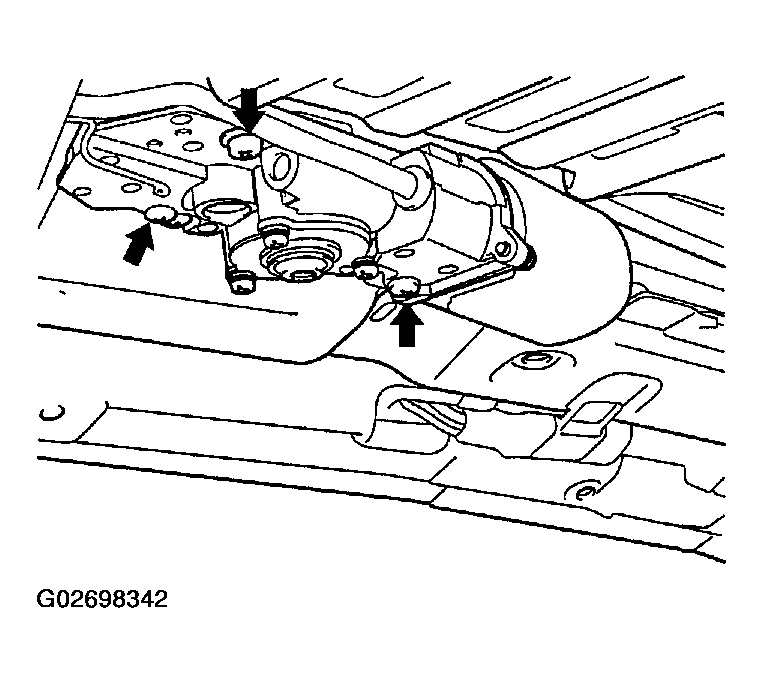

    Fig 1: Removing Sun Roof Motor
    G02698342Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front drip.
  3. Remove the sun shade.
    Fig 2: Removing Sun Shade
    G02698343Courtesy of HYUNDAI MOTOR CO.
  4. Remove the drive unit and the guide assembly.
    Fig 3: Removing Drive Unit & Guide Assembly
    G02698344Courtesy of HYUNDAI MOTOR CO.
  5. Remove the deflector.
    Fig 4: Removing Deflector
    G02698345Courtesy of HYUNDAI MOTOR CO.
  6. Remove the spring.
    Fig 5: Removing Spring
    G02698346Courtesy of HYUNDAI MOTOR CO.
