Removal And Installation

Remove the front mud guard and wheel guard.

Fig 1: Removing Front Mud Guard
Courtesy of HYUNDAI MOTOR CO.
Remove the 3 bolts holding the head lamp and disconnect the wire connector.
Remove the head lamp assembly.

Fig 2: Removing Head Lamp Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the front bumper. Refer to FRONT BUMPER .
Remove the fender mounting bolts and remove the fender panel assembly.
CAUTION: Use care to avoid damaging the paint.

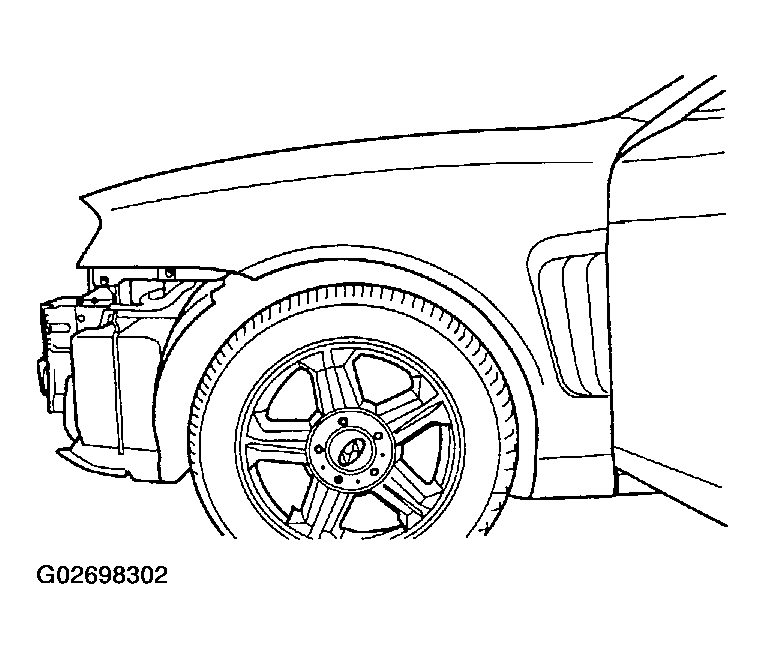

Fig 3: View Of Fender
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of the removal.

NOTE: In order to prevent the fender mounting bolt area from forming rust, apply tape sealer between the fender and the body panel.
