DTC P0703: Stop Light Switch System
DTC P0703: Stop Light Switch System

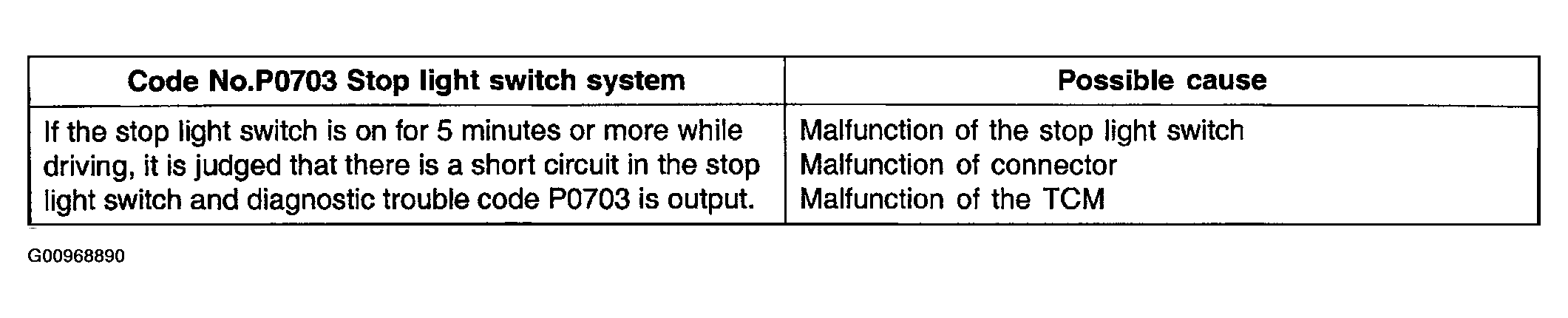

Fig 1: DTC P0703 Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

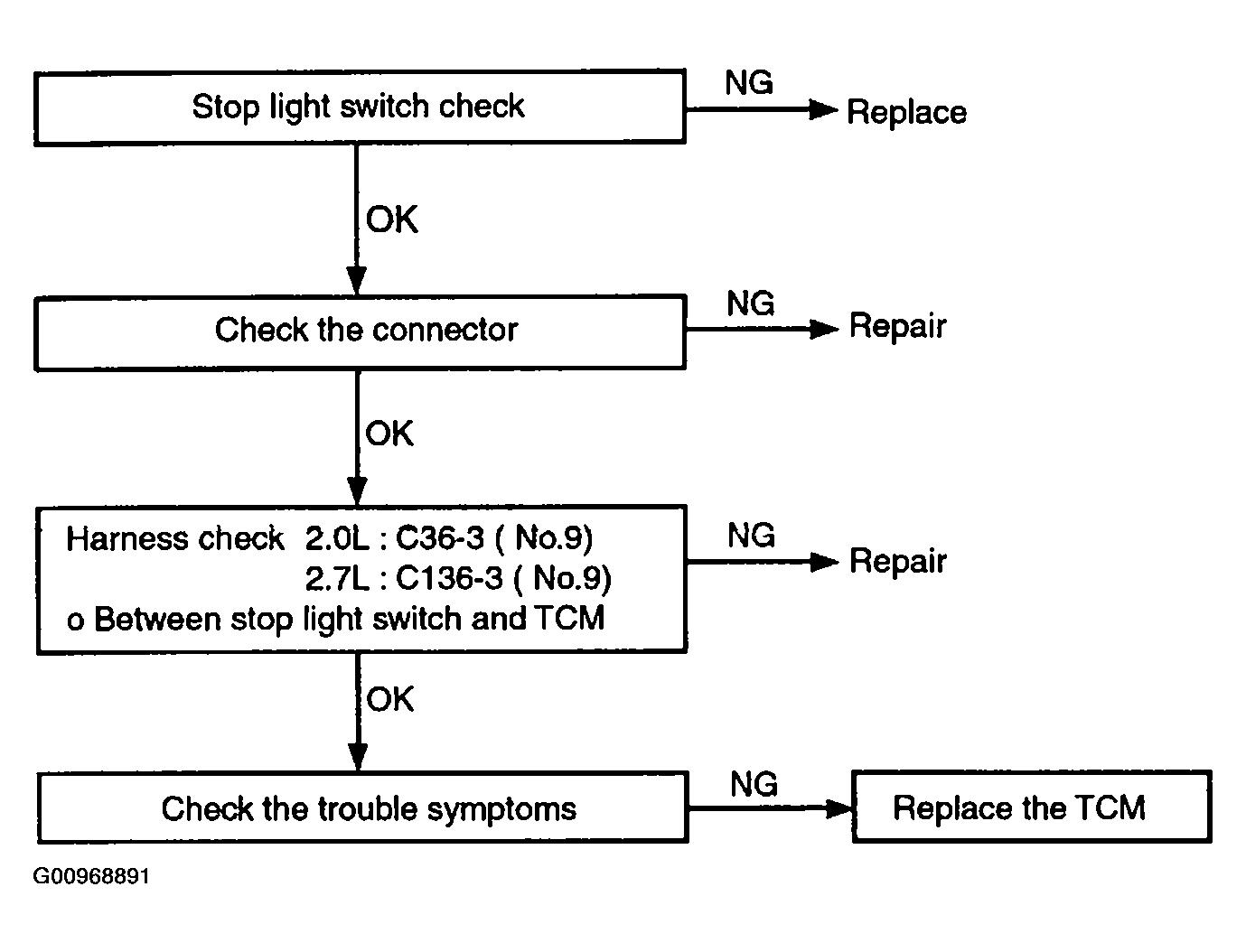

Fig 2: DTC P0703 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
