Main Moving System: Camshaft: Notes

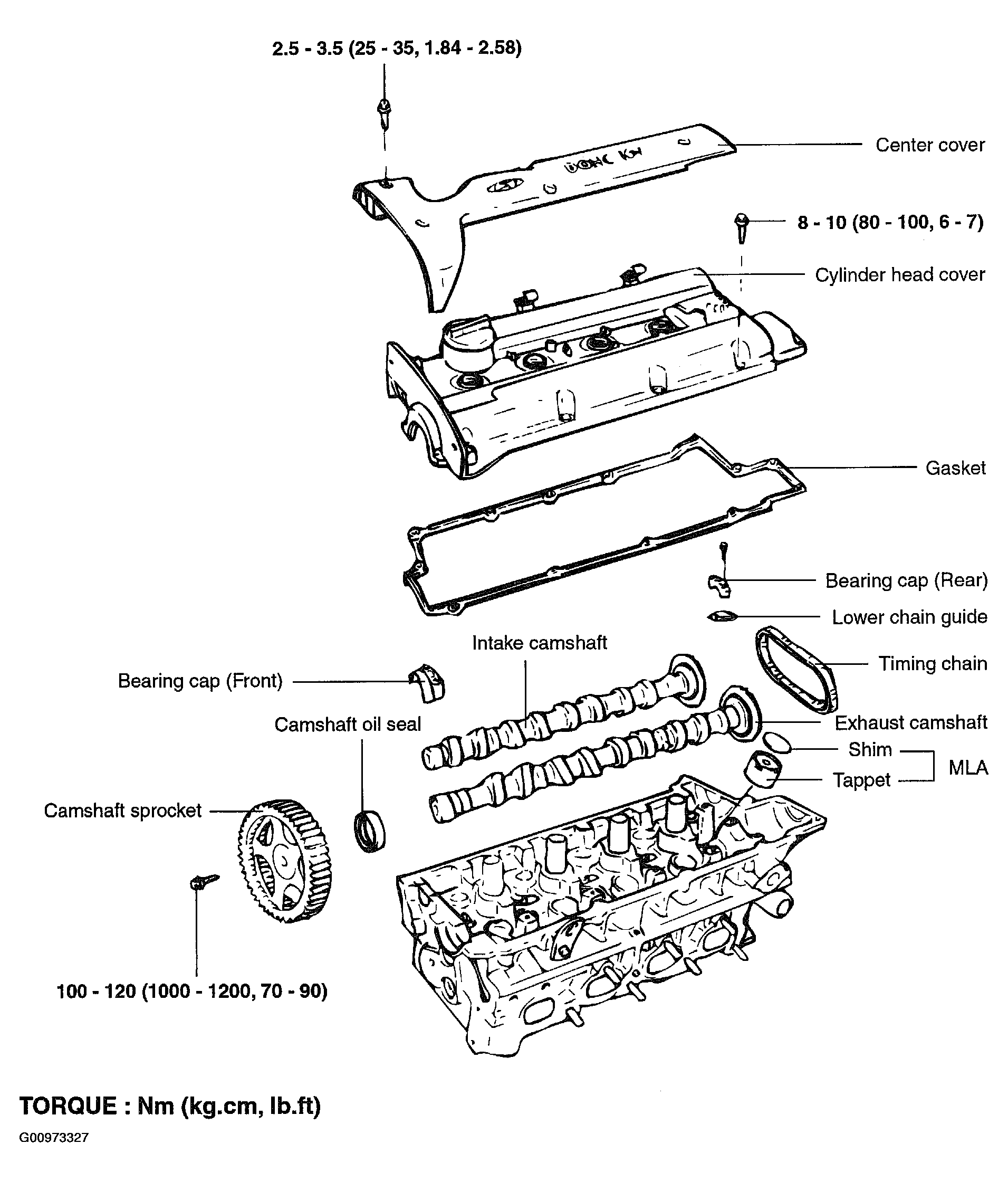

Fig 1: Camshaft Components
G00973327Courtesy of HYUNDAI MOTOR CO.
