Multi Function Switch: Notes

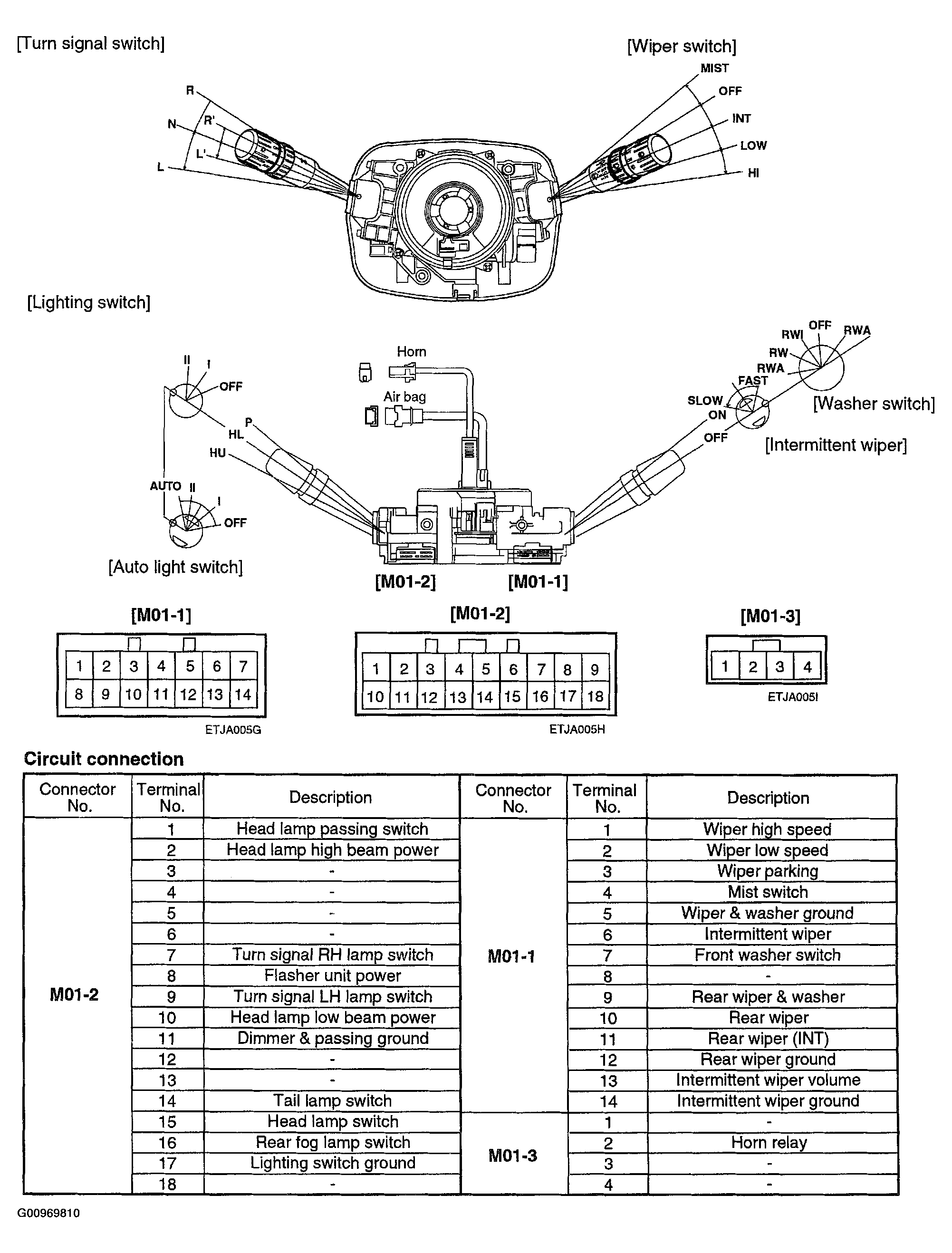

Fig 1: Multi Function Switch Components (With Air Bag)

G00969810

Courtesy of HYUNDAI MOTOR CO.
