HECU Terminal Inspection

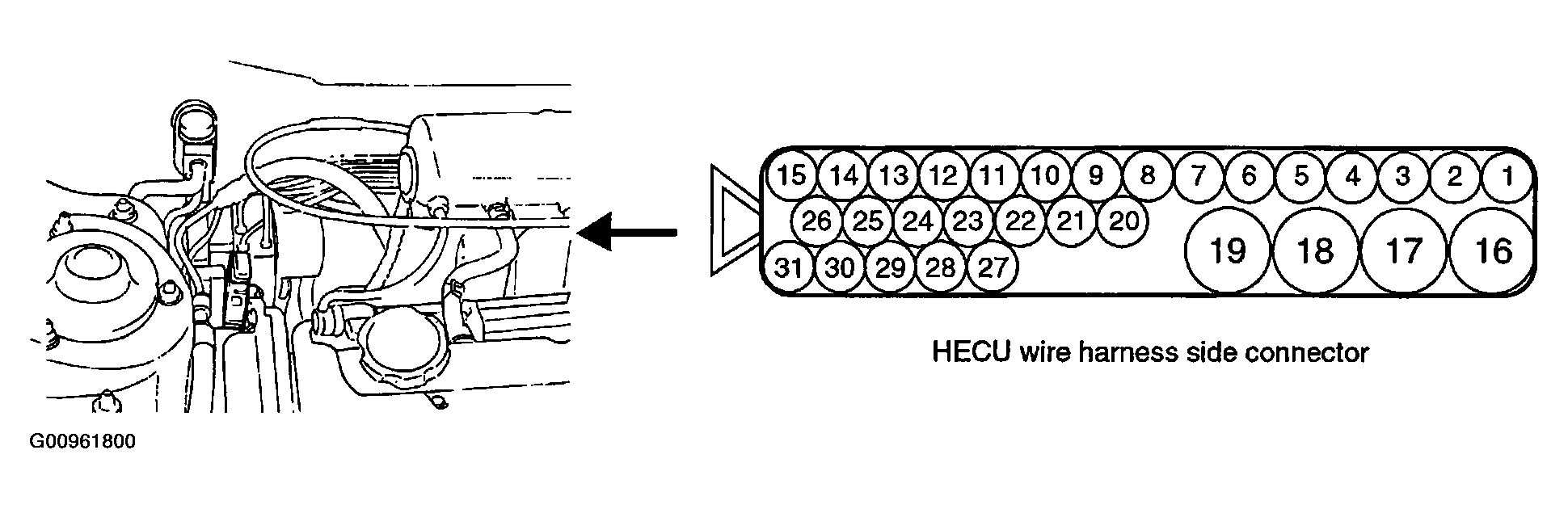

Fig 1: View Of HECU Location & Connector Terminals
Courtesy of HYUNDAI MOTOR CO.

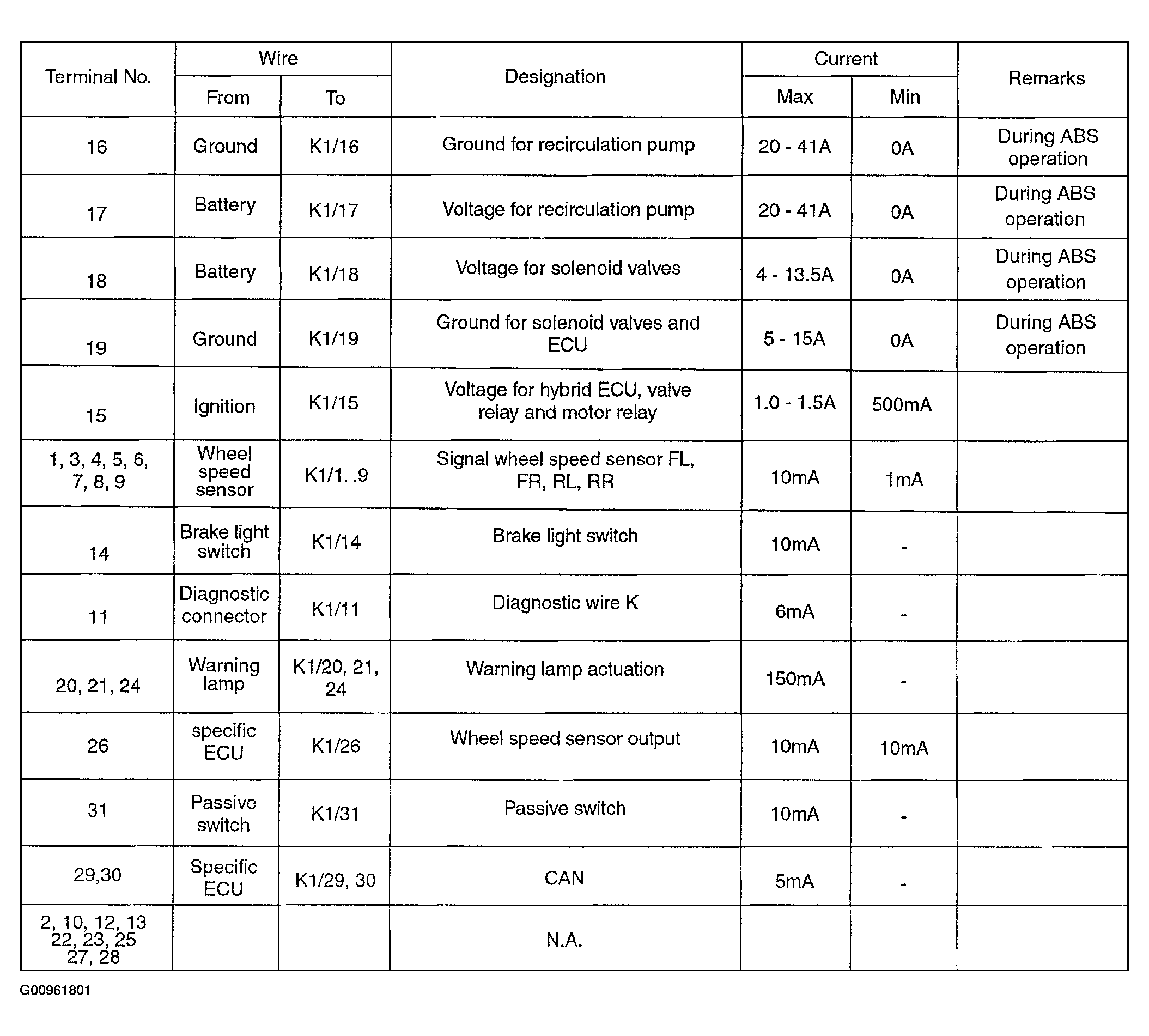

Fig 2: Identifying HECU Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
