Transaxle Range Switch Continuity Check

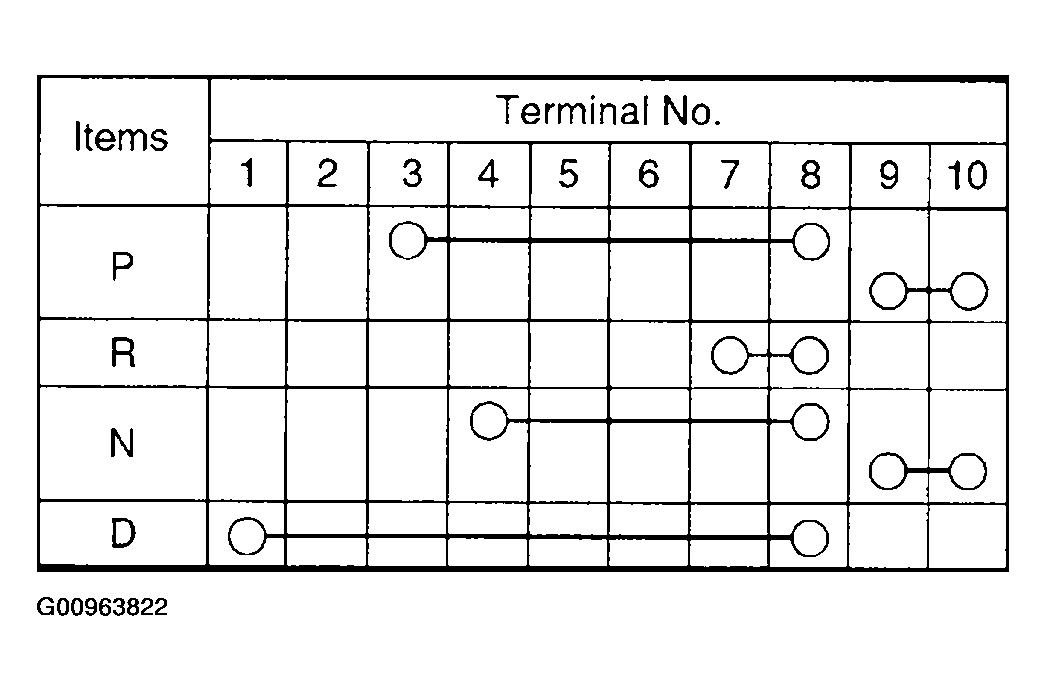

Fig 1: TR Switch Continuity Table
G00963822Courtesy of HYUNDAI MOTOR CO.

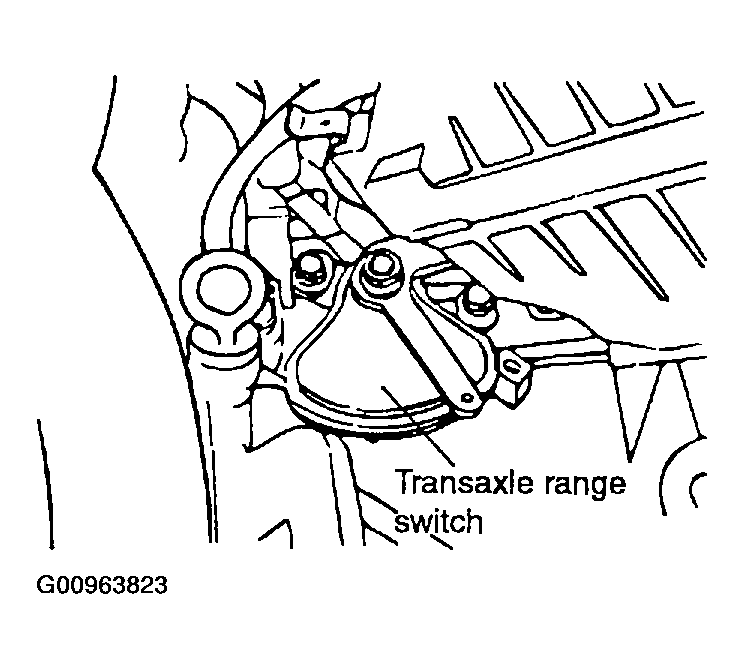

Fig 2: Identifying TR Switch
G00963823Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying TR Switch Positions & Connector Terminals
G00963824Courtesy of HYUNDAI MOTOR CO.
