Automatic Transaxle Hydraulic Circuit: First

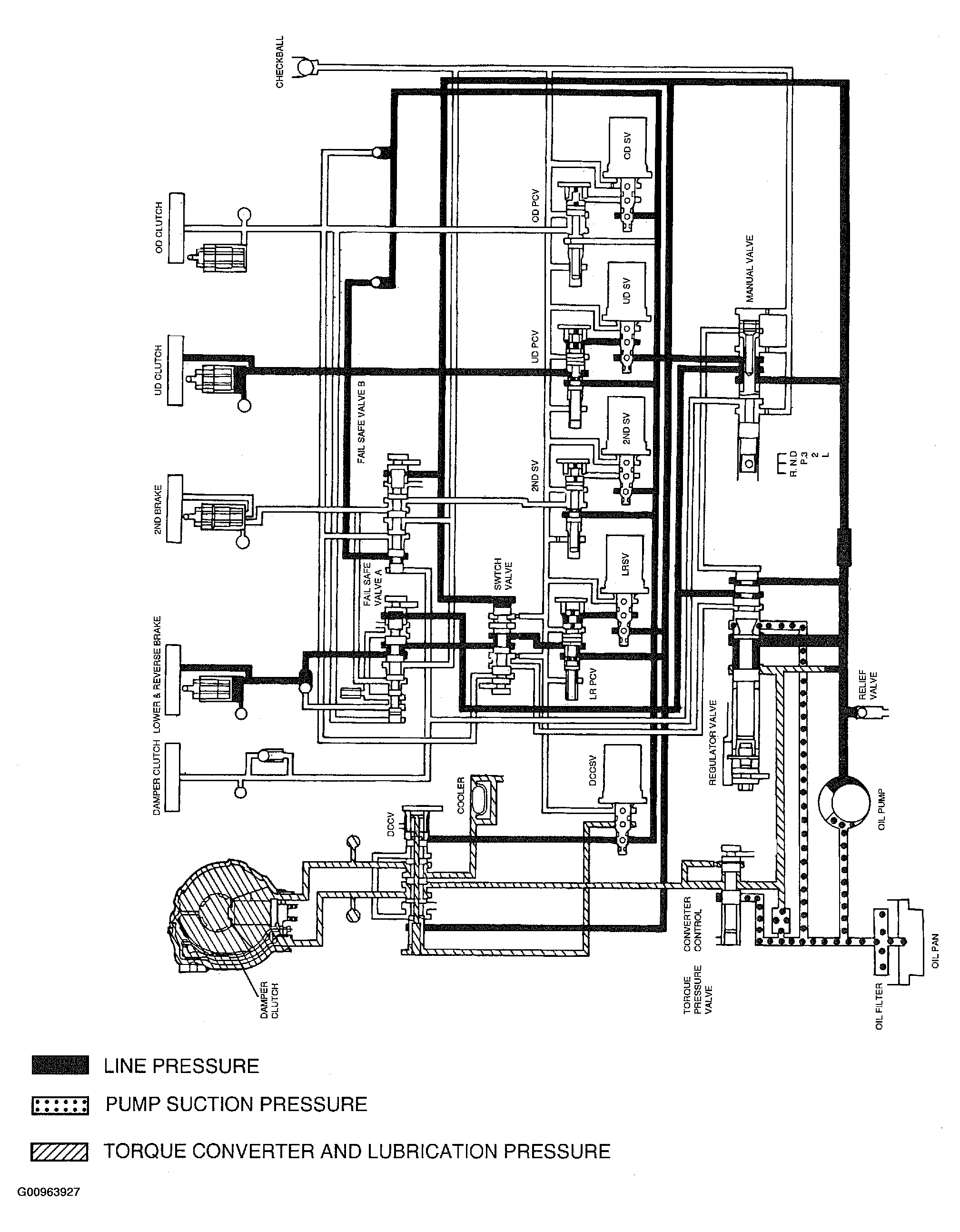

Fig 1: Identifying Hydraulic Circuit In First Gear

G00963927

Courtesy of HYUNDAI MOTOR CO.
