Section 3 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Operating Elements & Their Function
Operating Elements & Their Function
WARNING:
This page is about a different variant/trim than selected.

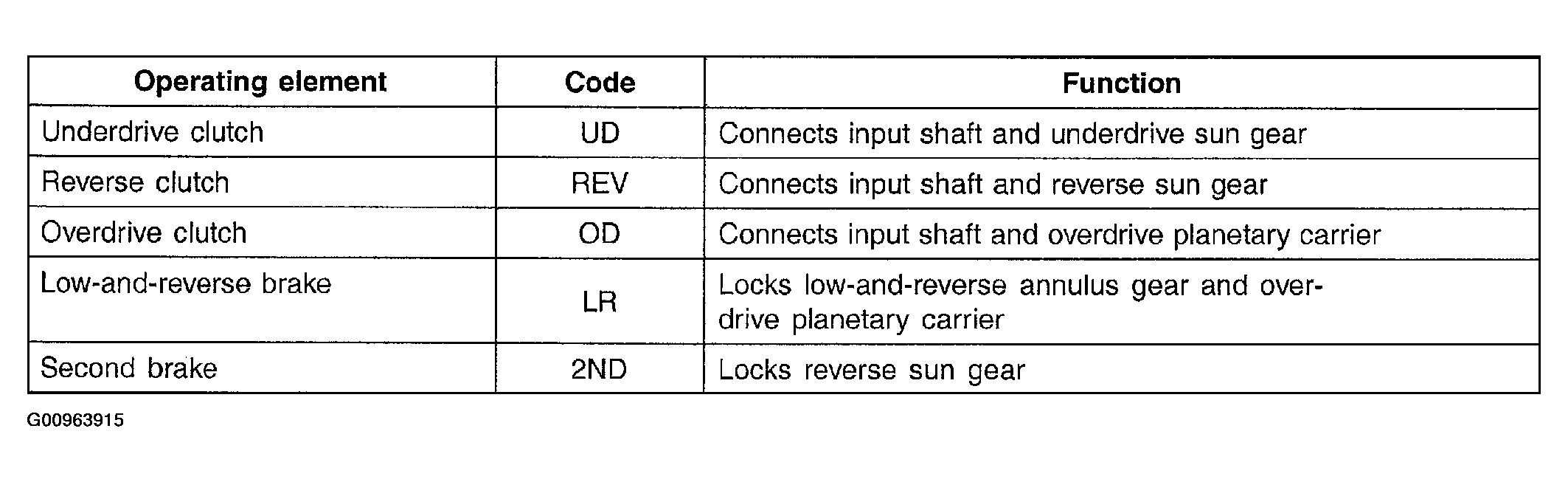

Fig 1: Operating Elements & Function Table
Courtesy of HYUNDAI MOTOR CO.
