Home >> Hyundai >> 2003 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> General >> Troubleshooting

Anti-Lock Brake System: General: Troubleshooting

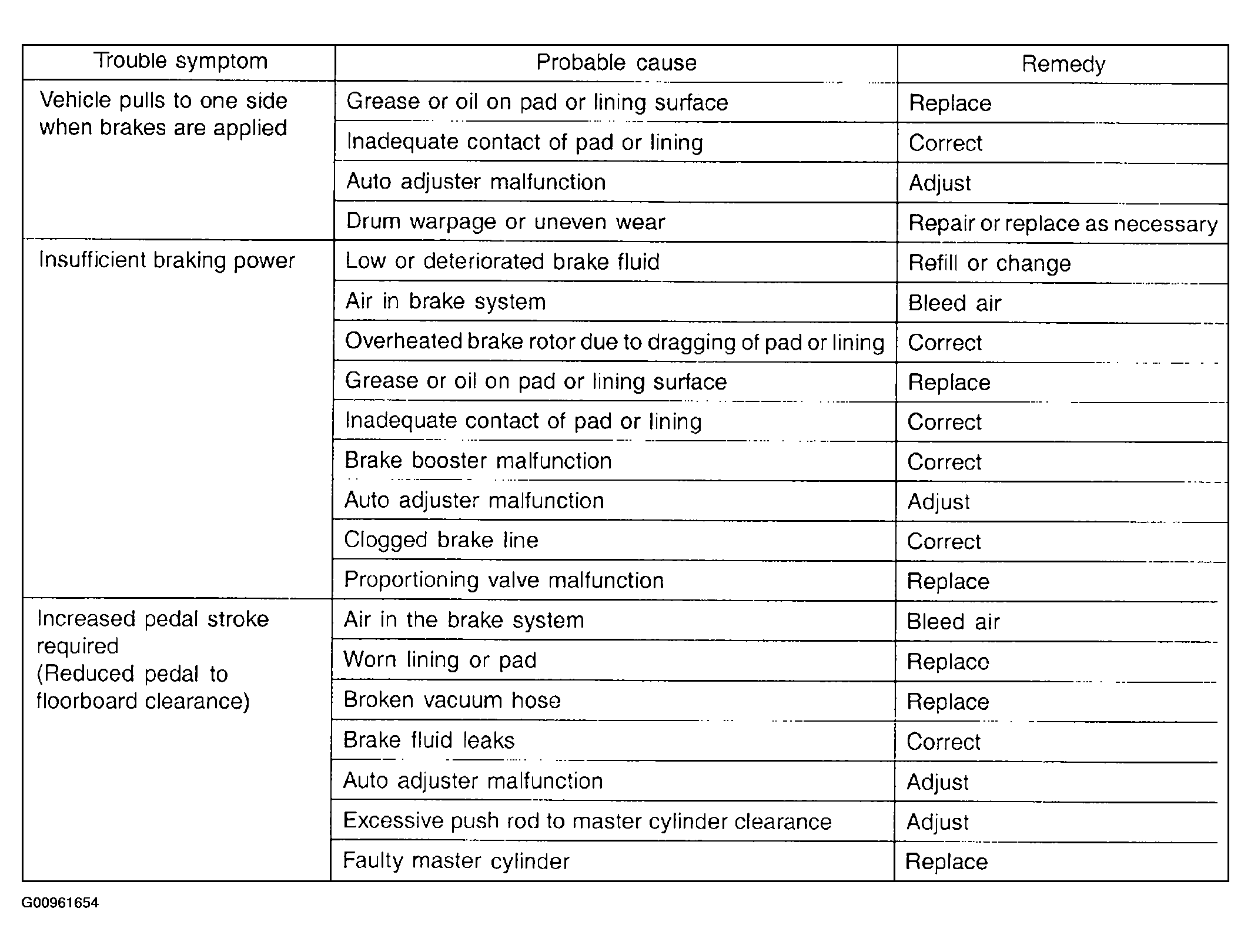

Fig 1: Troubleshooting Symptom Chart (1 Of 3)
G00961654Courtesy of HYUNDAI MOTOR CO.

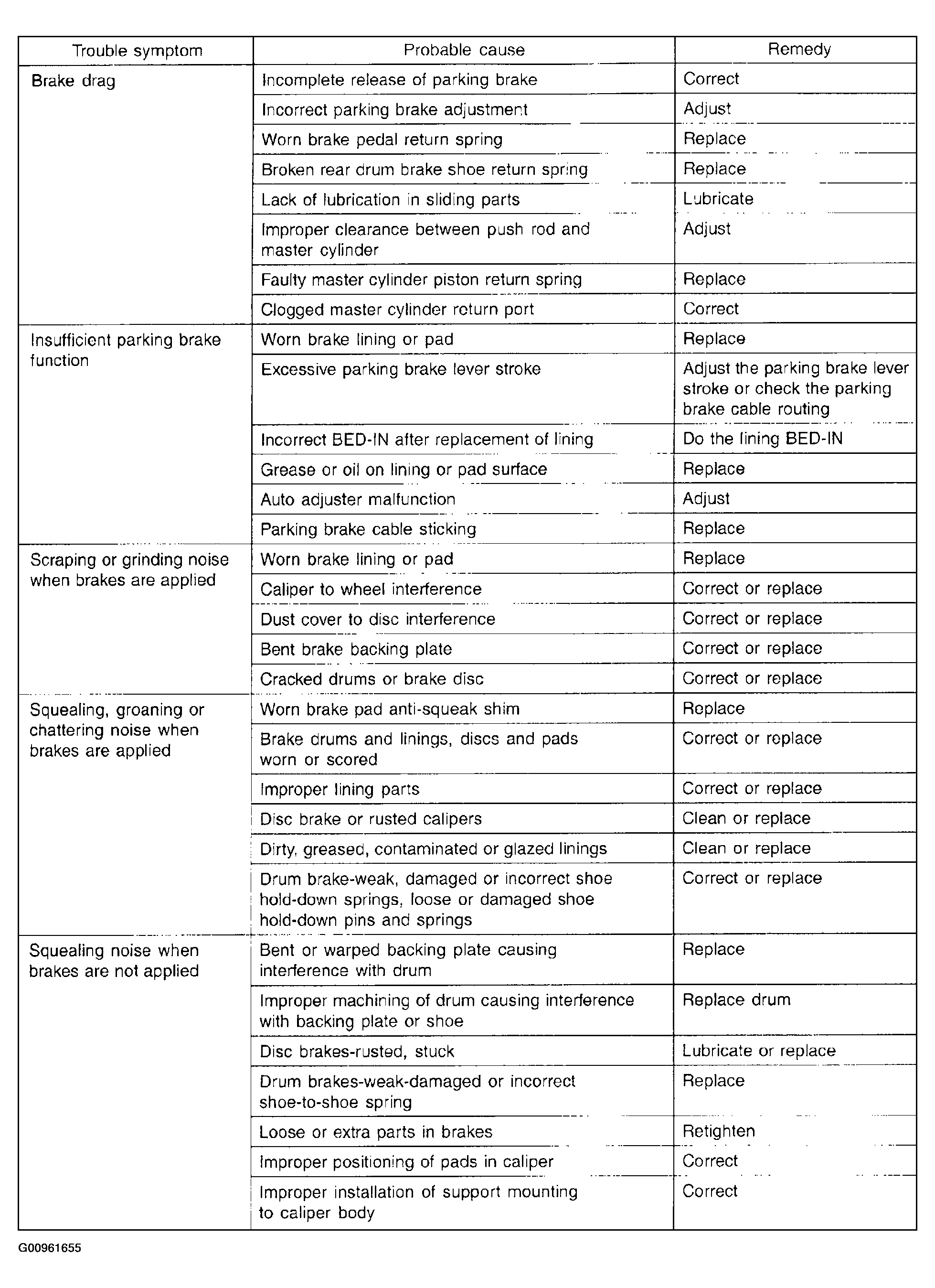

Fig 2: Troubleshooting Symptom Chart (2 Of 3)
G00961655Courtesy of HYUNDAI MOTOR CO.

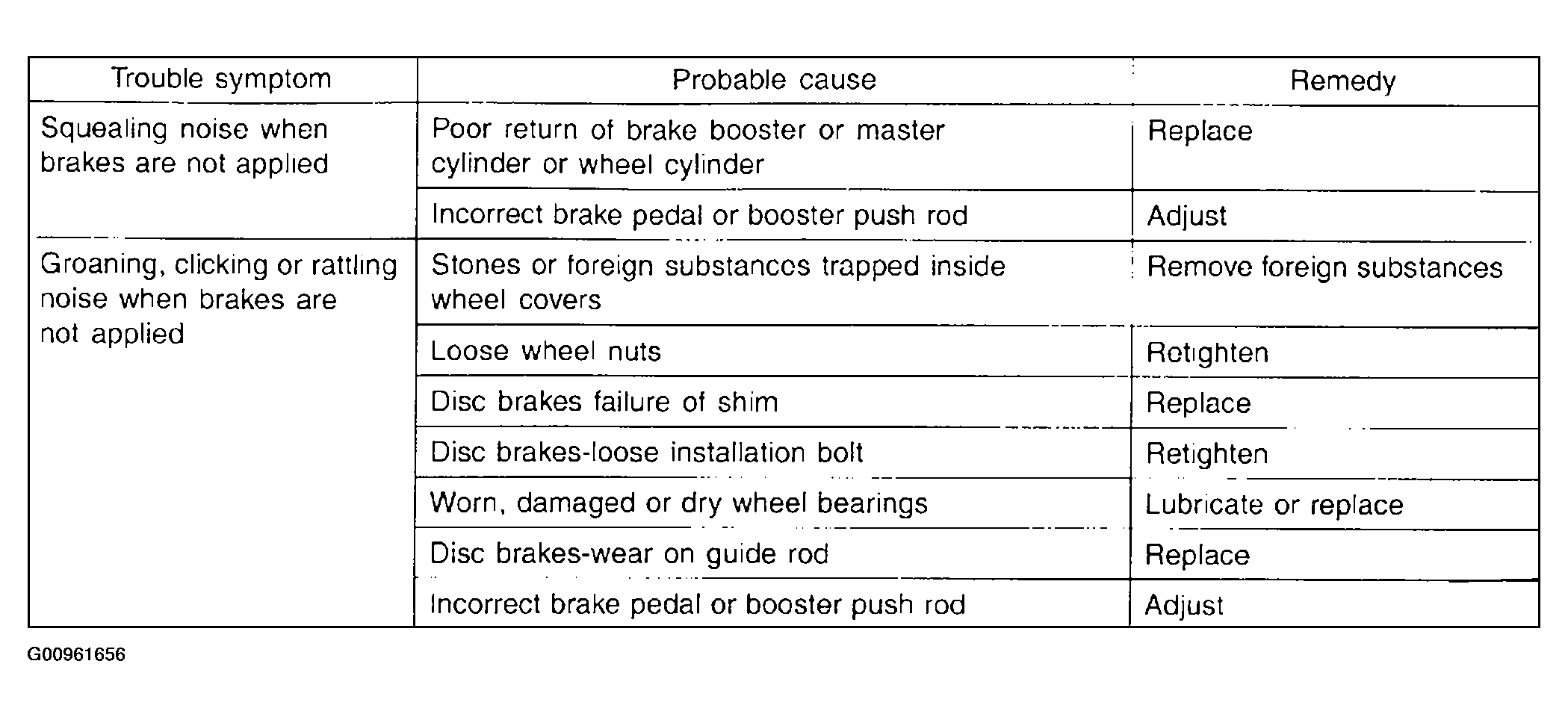

Fig 3: Troubleshooting Symptom Chart (3 Of 3)
G00961656Courtesy of HYUNDAI MOTOR CO.
