Home >> Hyundai >> 2003 >> Santa Fe Base, Standard >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Front Suspension System >> Front Lower Arm >> Components

Front Lower Arm: Components

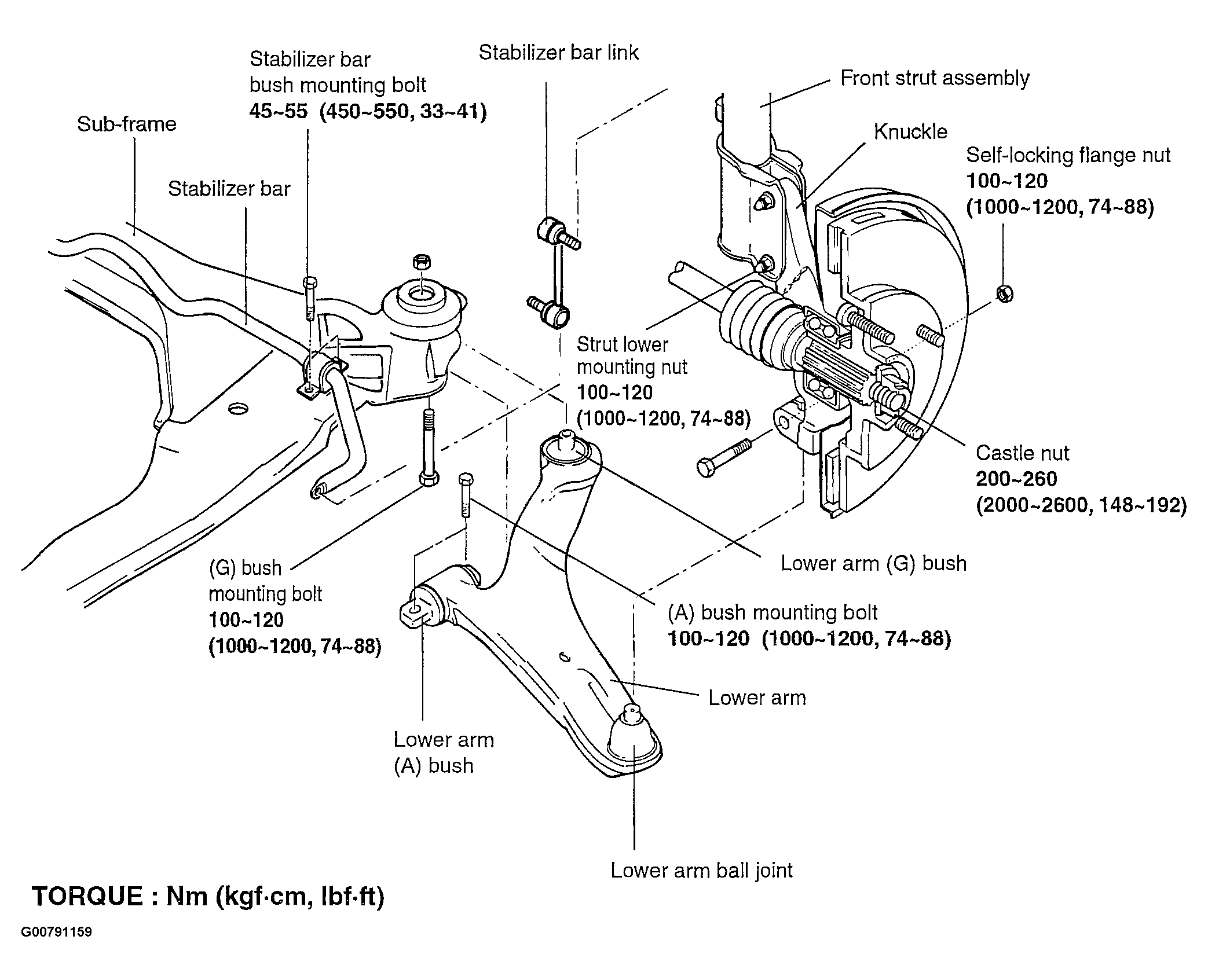

Fig 1: Front Lower Arm Components

G00791159

Courtesy of HYUNDAI MOTOR CO.
