Home
>>
Hyundai
>>
2003
>>
Santa Fe Base, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Mechanical Power Steering System
>>
General
>>
Special Tools
Special Tools

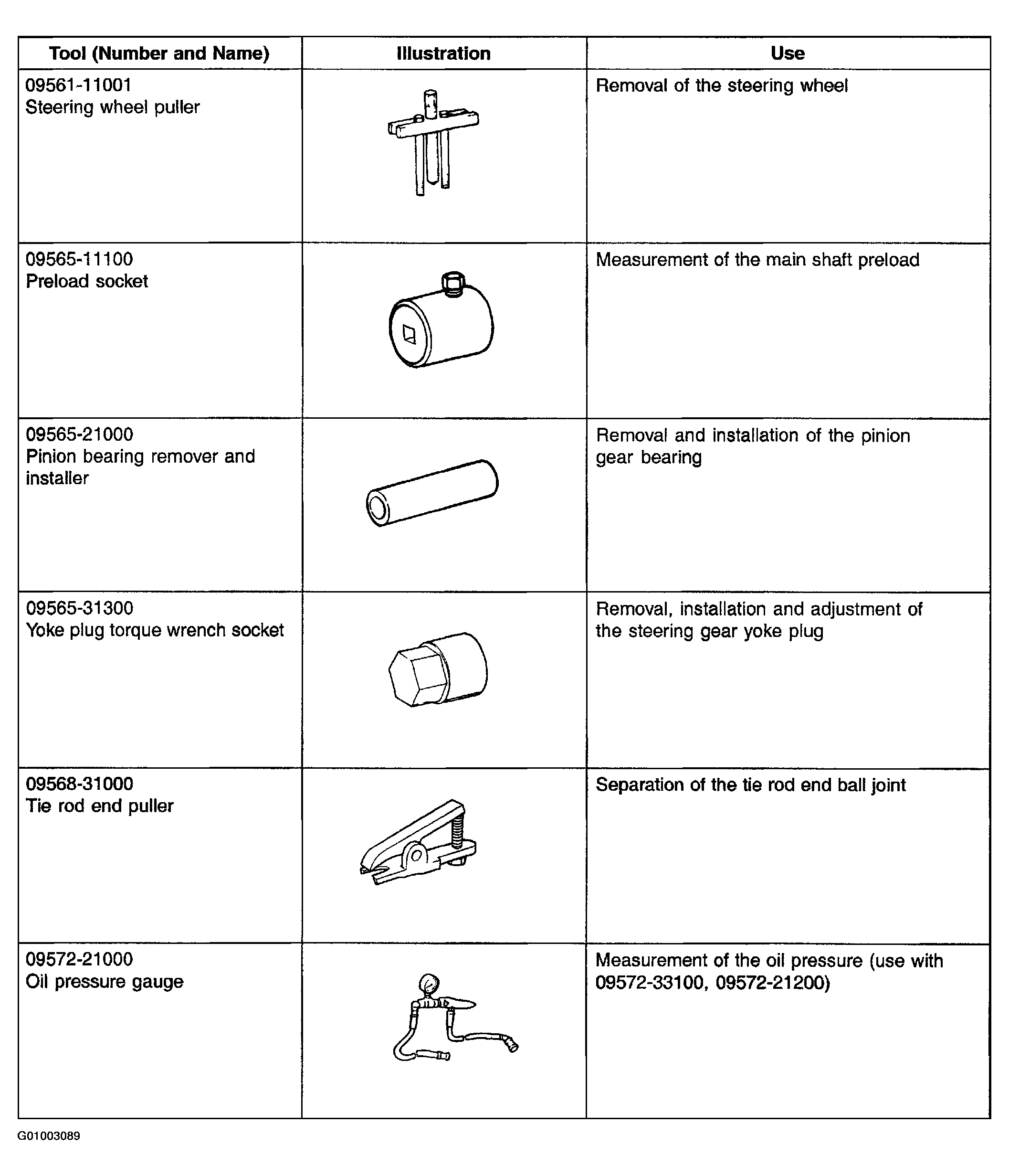

Fig 1: Identifying Special Tools (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

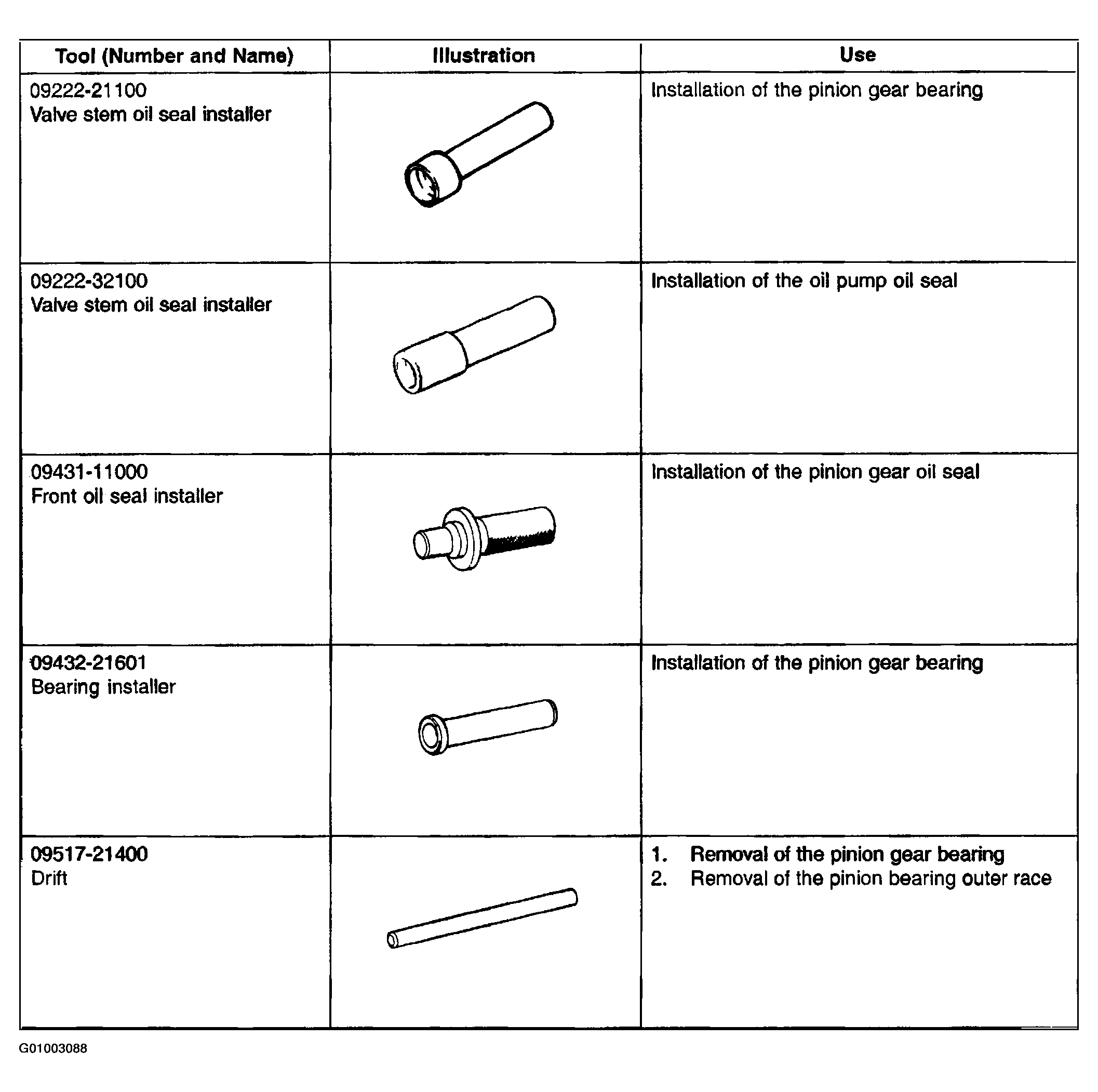

Fig 2: Identifying Special Tools (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying Special Tools (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
