Intake Manifold: Removal

  1. Remove the air breather hose connected to the throttle body.
    Fig 1: Removing Air Breather Hose
    G00790092Courtesy of HYUNDAI MOTOR CO.
  2. Remove the accelerator cable.

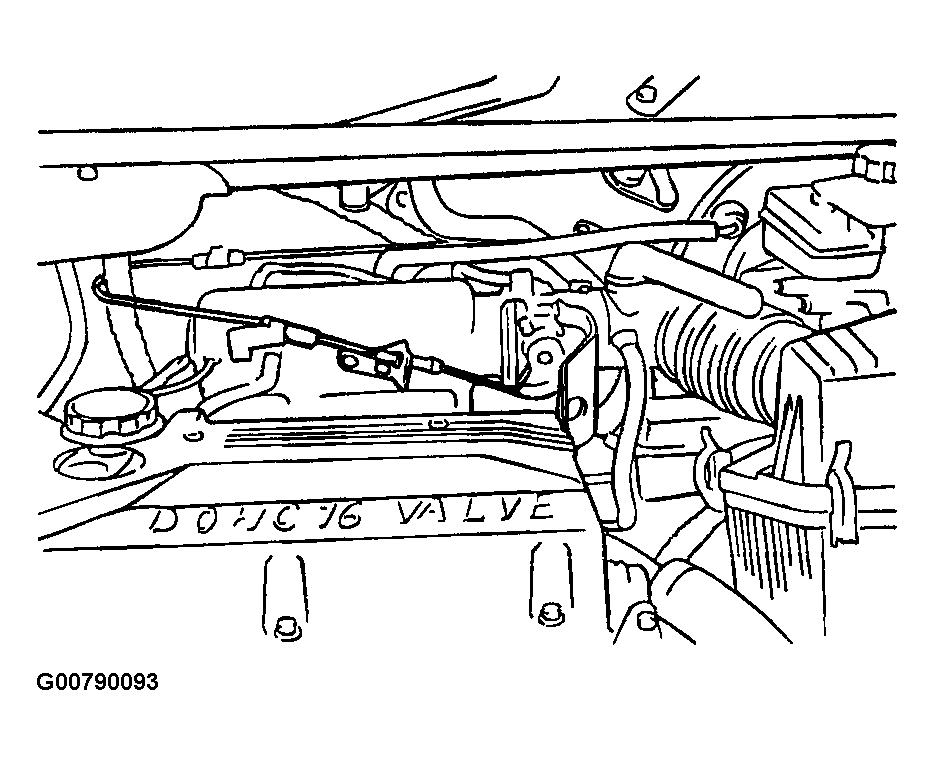

    Fig 2: Identifying Accelerator Cable
    G00790093Courtesy of HYUNDAI MOTOR CO.
  3. Remove the engine coolant hose and throttle body.
  4. Remove the P.C.V. valve and brake boost vacuum hose.
    Fig 3: Identifying Brake Booster Vacuum Hose
    G00790094Courtesy of HYUNDAI MOTOR CO.
  5. Disconnect the vacuum hose connector.
  6. Remove the injector cover.
    Fig 4: Removing Injector Cover
    G00790095Courtesy of HYUNDAI MOTOR CO.
  7. Bleed off pressure in the fuel pipe line to prevent fuel from spilling and then disconnect the high pressure hose.
  8. Disconnect the fuel injector harness connector.
    Fig 5: View Of Injector Harness Connector
    G00790096Courtesy of HYUNDAI MOTOR CO.
  9. Remove the delivery pipe with fuel injectors and the pressure regulator.
    NOTE: When the delivery pipe is removed, do not drop the injectors.
    Fig 6: Removing Fuel Delivery Pipe
    G00790097Courtesy of HYUNDAI MOTOR CO.
  10. Remove the intake manifold stay.
    Fig 7: Identifying Intake Manifold Stay
    G00790098Courtesy of HYUNDAI MOTOR CO.
  11. Remove the intake manifold.
