Radiator Fan Relay

  1. Remove the radiator fan motor relay (High and Low) from the relay box in the engine room.
  2. Check the continuity between relay terminals. See RADIATOR FAN RELAY CONTINUITY  table. See Fig 1 . If continuity is not as specified, replace relay.
    RADIATOR FAN RELAY CONTINUITY

    Current Terminals Continuity
    On 1 & 3 Yes
    Off 1 & 3 No
    Off 2 & 4 Yes

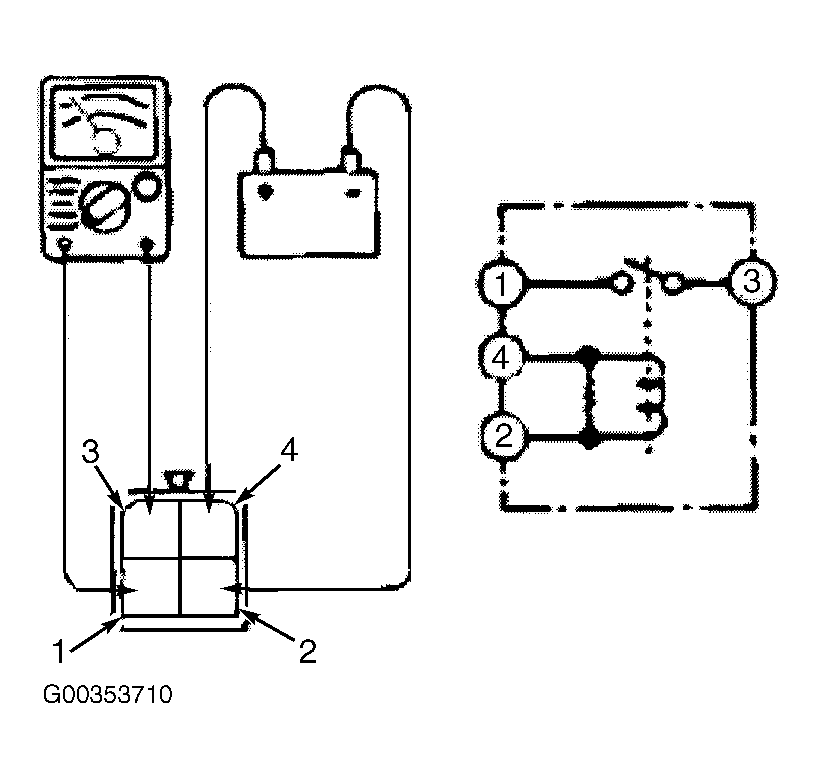

    Fig 1: Testing Radiator Fan Relay
    G00353710Courtesy of HYUNDAI MOTOR CO.
