Rear Suspension System: General: Specification: Notes

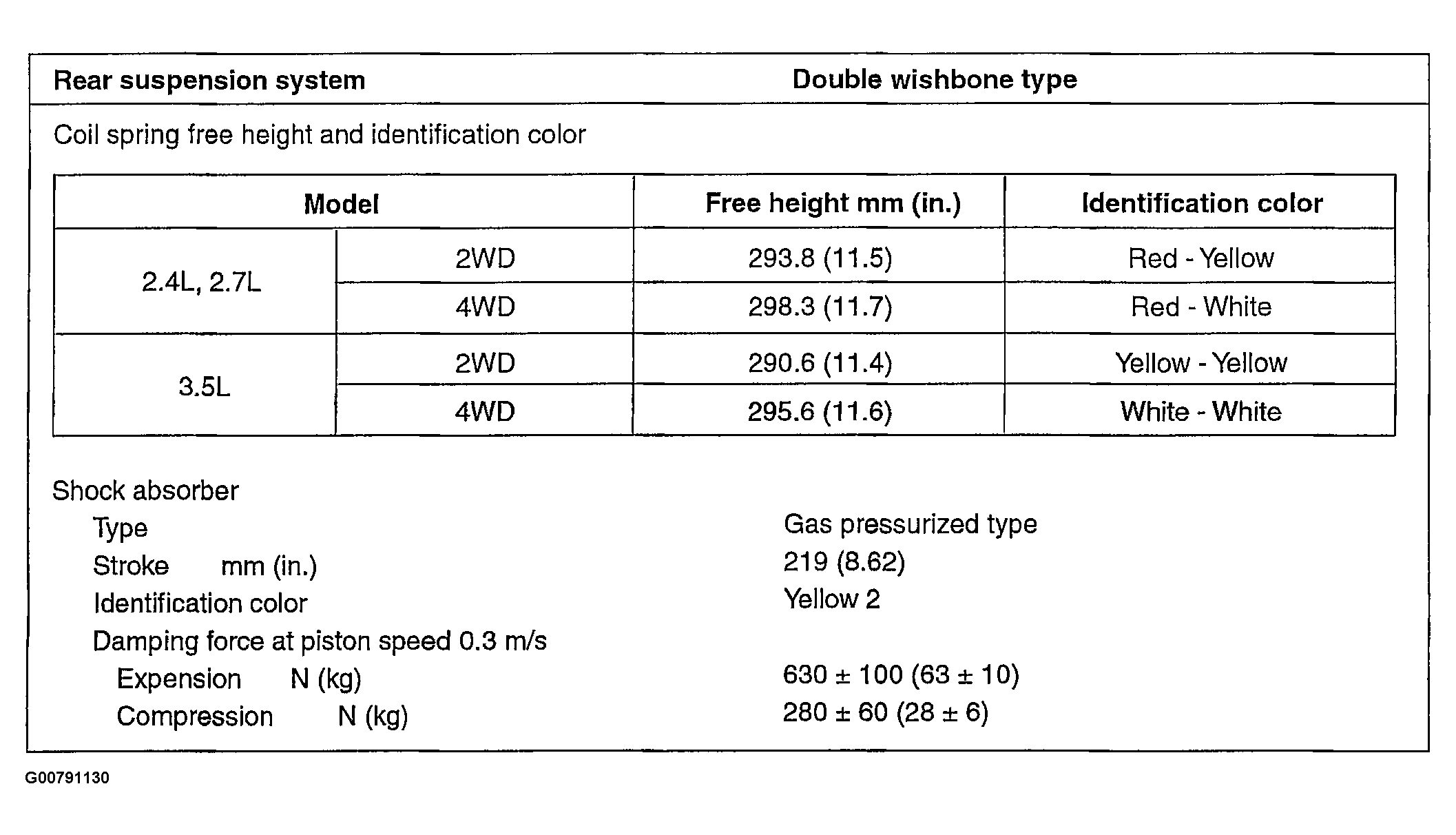

Fig 1: Rear Suspension System Specifications

G00791130

Courtesy of HYUNDAI MOTOR CO.
