Home >> Hyundai >> 2003 >> Santa Fe Base, Standard >> Repair and Diagnosis (Single Page) >> Suspension >> Front Suspension System >> General >> Specification >> Notes

Front Suspension System: General: Specification: Notes

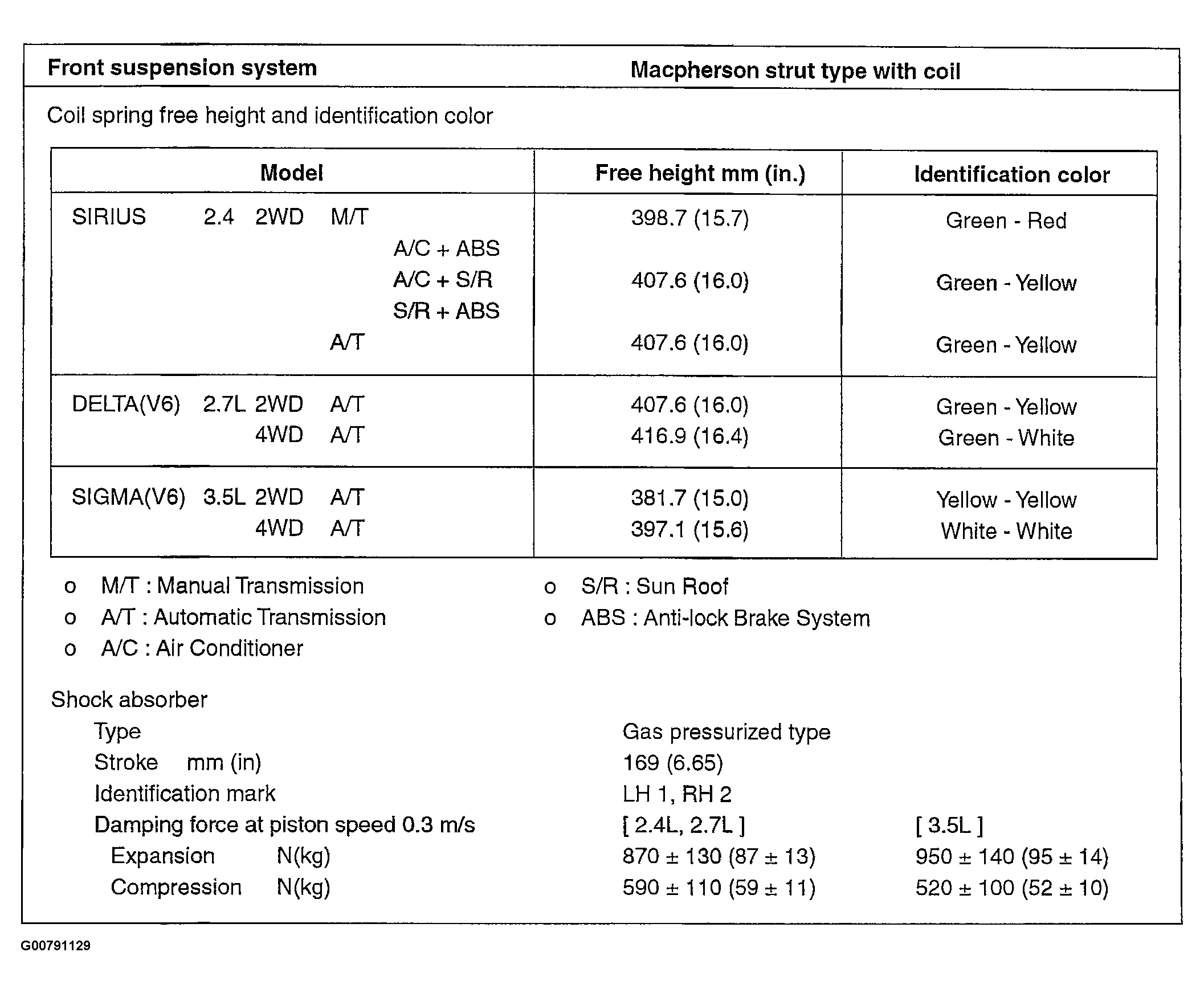

Fig 1: Front Suspension Specifications

G00791129

Courtesy of HYUNDAI MOTOR CO.
