Front Hub/Knuckle: Components

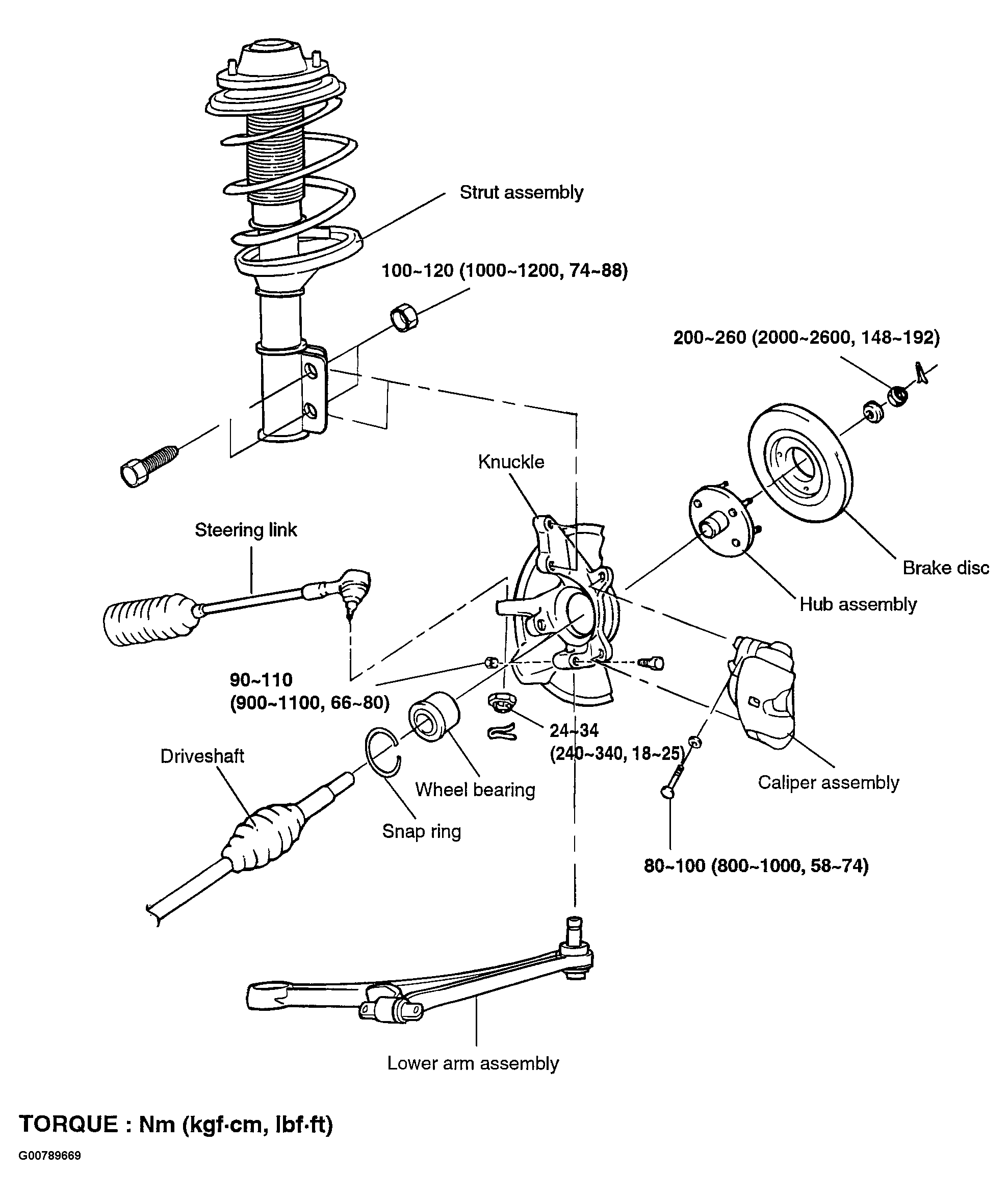

Fig 1: Front Hub/Knuckle Components

G00789669

Courtesy of HYUNDAI MOTOR CO.
