Manual A/C Compressor Controls: Compressor: Components

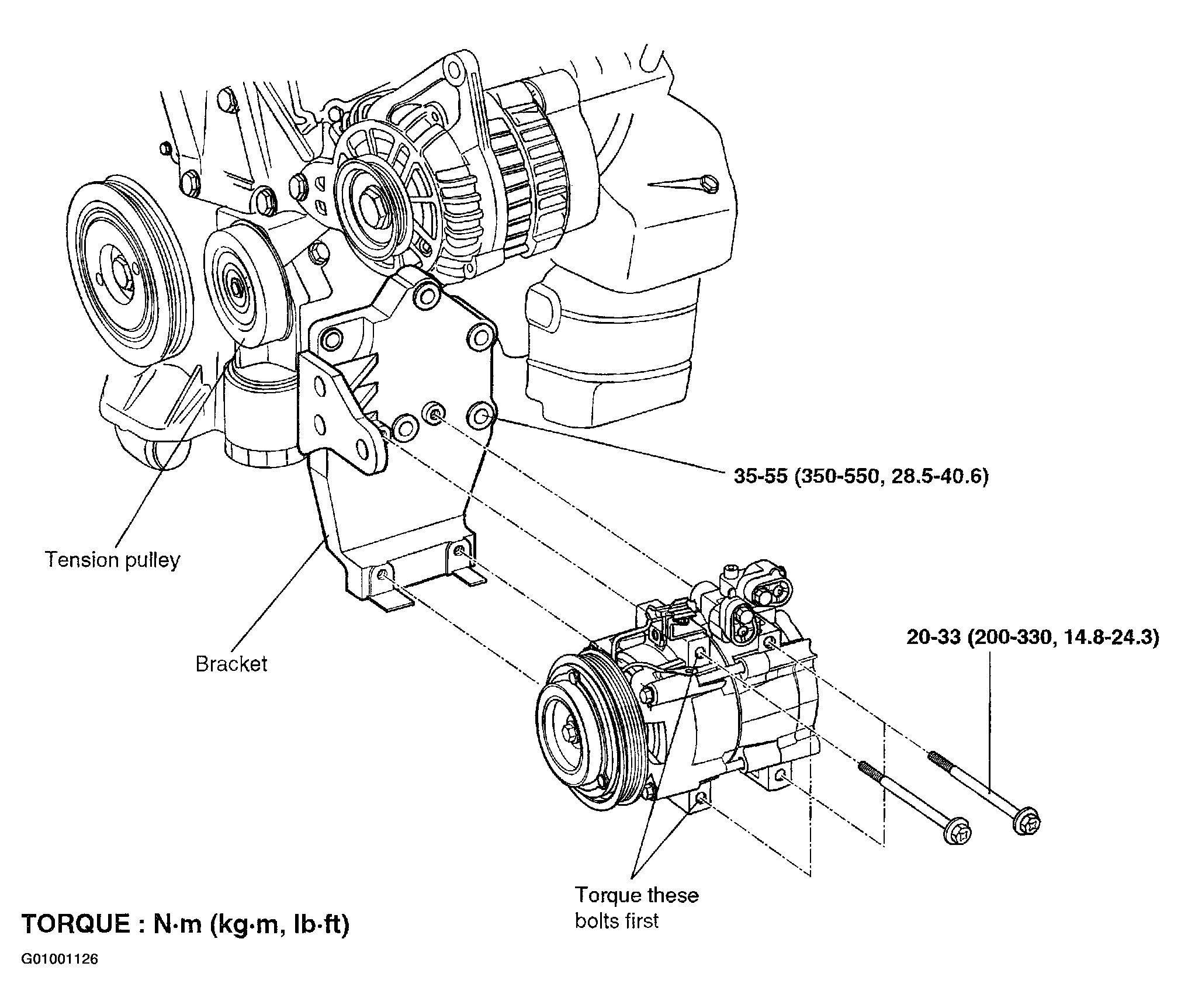

Fig 1: Compressor Components

G01001126

Courtesy of HYUNDAI MOTOR CO.

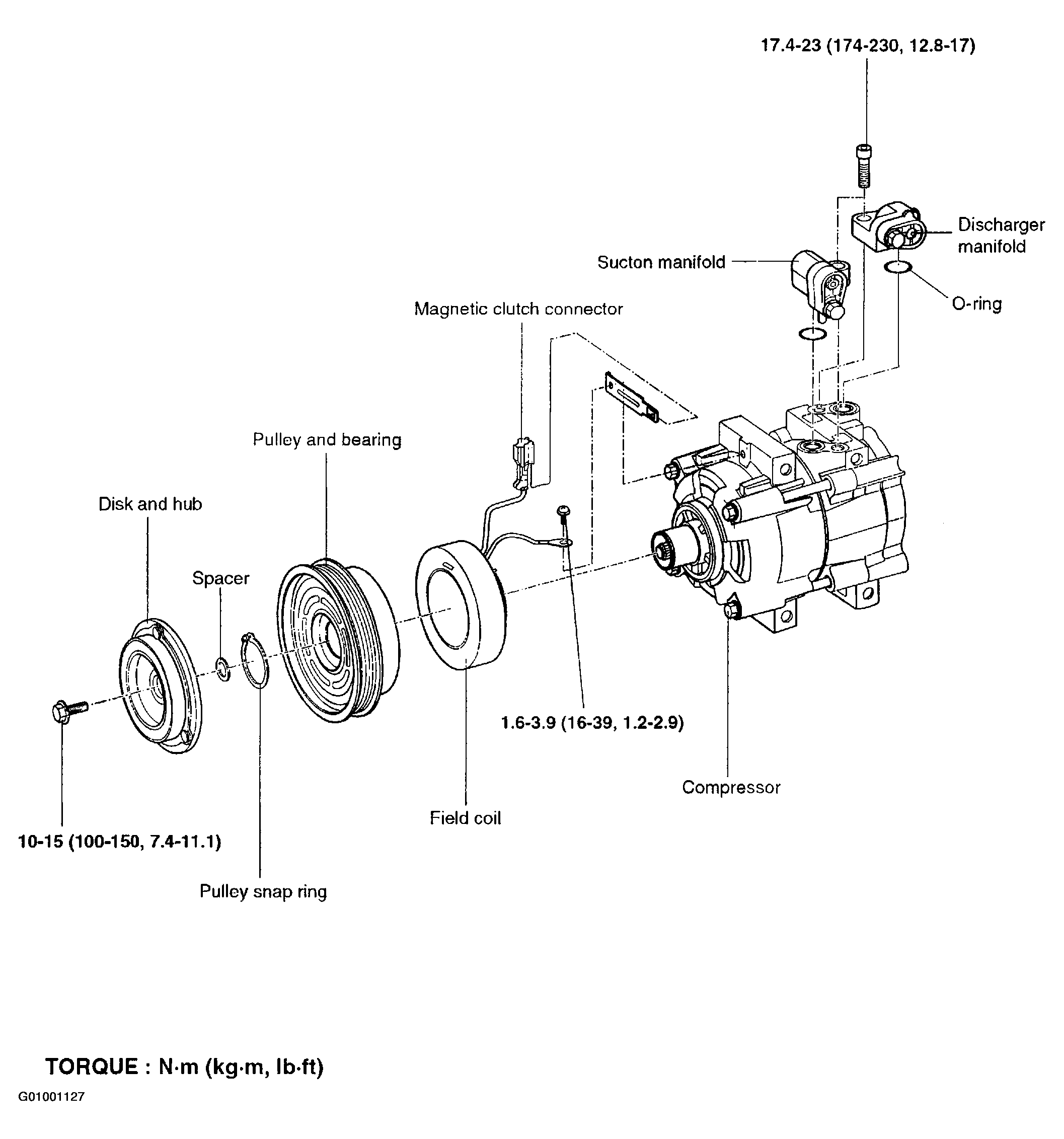

Fig 1: Exploded View Of Compressor Components

G01001127

Courtesy of HYUNDAI MOTOR CO.
