Front Case And Lubrication System: Components

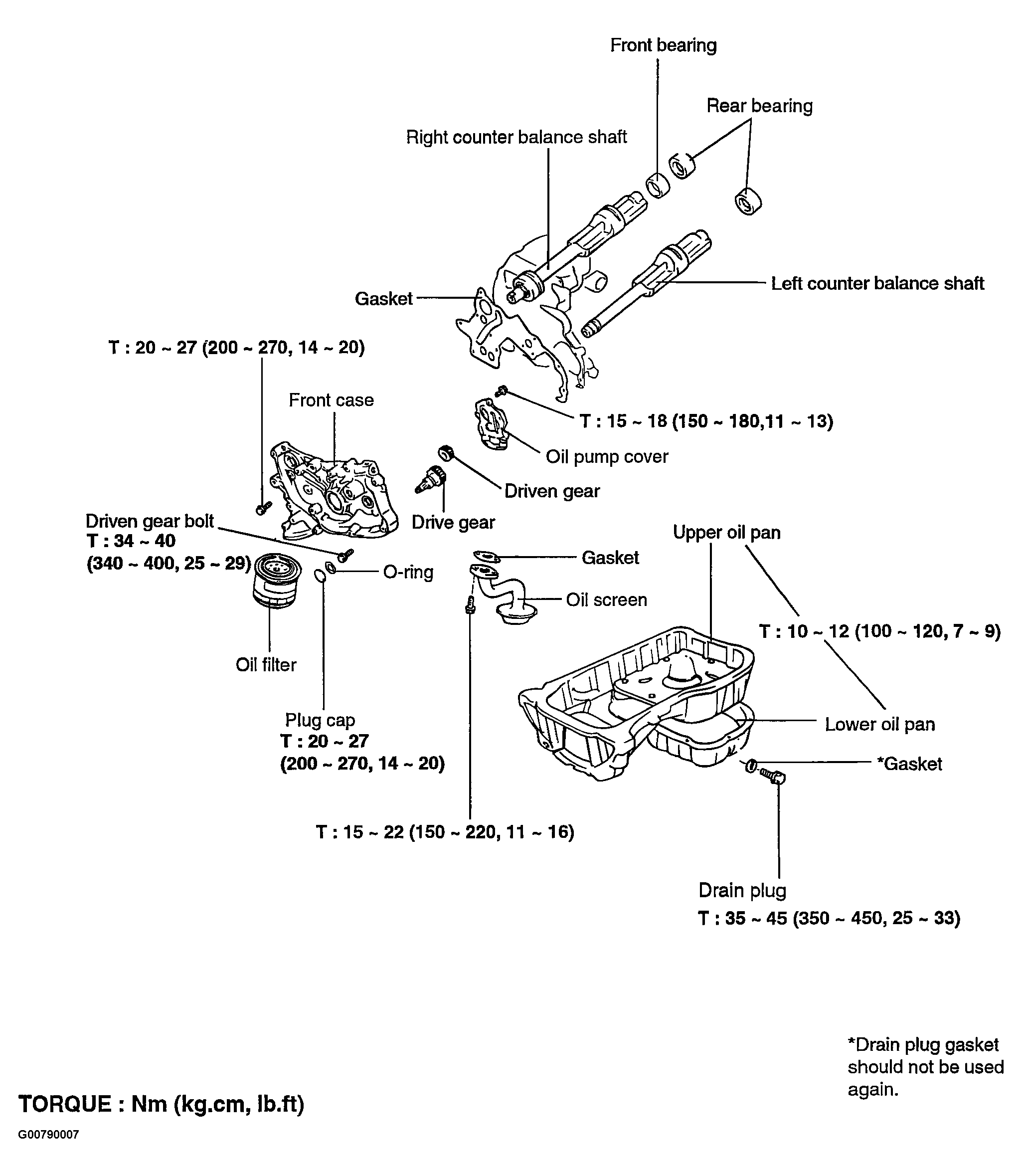

Fig 1: Front Case Components

G00790007

Courtesy of HYUNDAI MOTOR CO.
