Immobilizer Control Module Connector End View

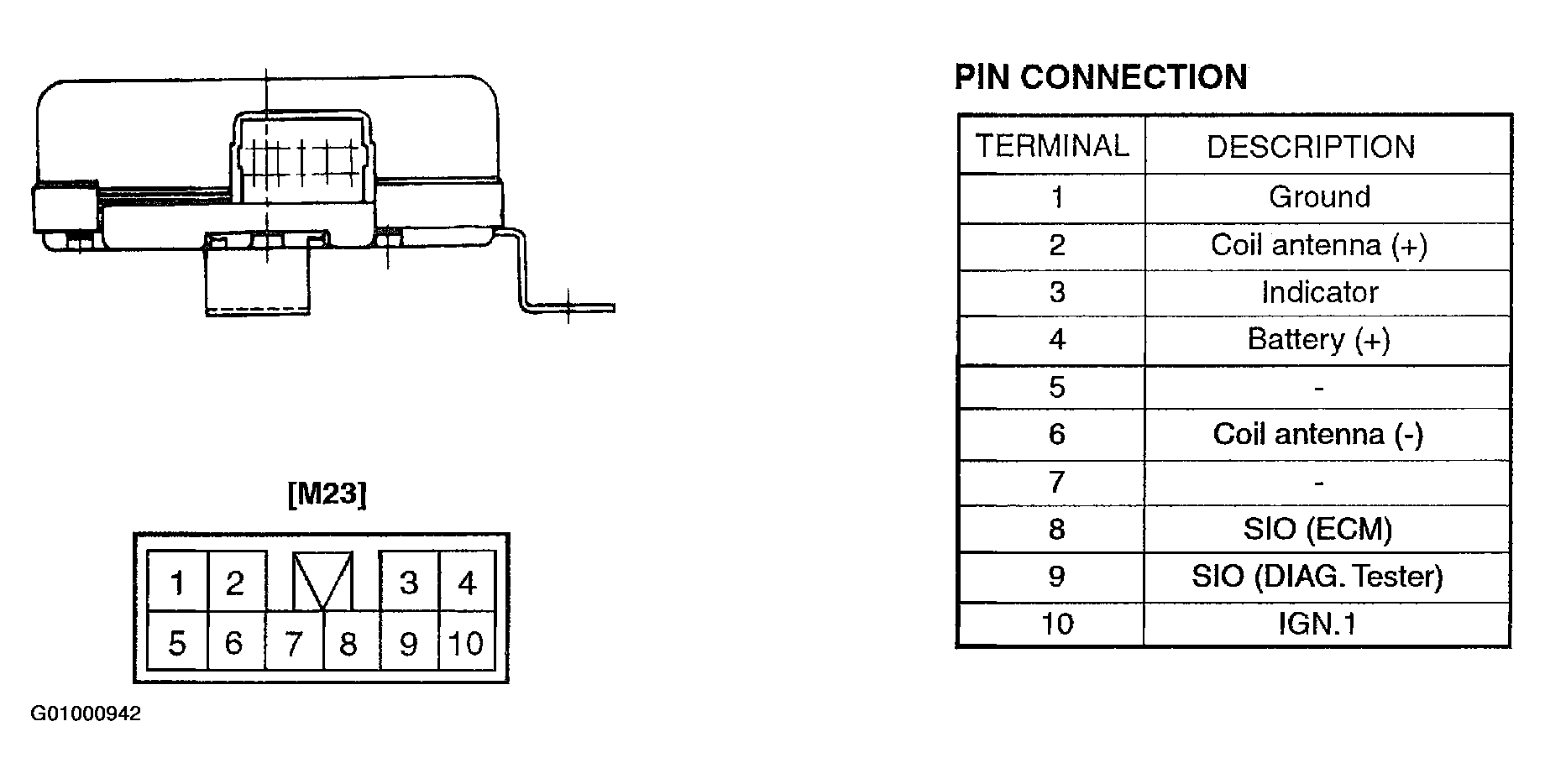

Fig 1: Immobilizer Control Module Connector End View

G01000942

Courtesy of HYUNDAI MOTOR AMERICA
