Power Seat Switch: Inspection

WARNING: This page is about a different car, the 2005 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the power seat switch connector.
  2. Operate the power seat switch (A) and check for continuity between terminals. If continuity is not as specified, replace the switch.

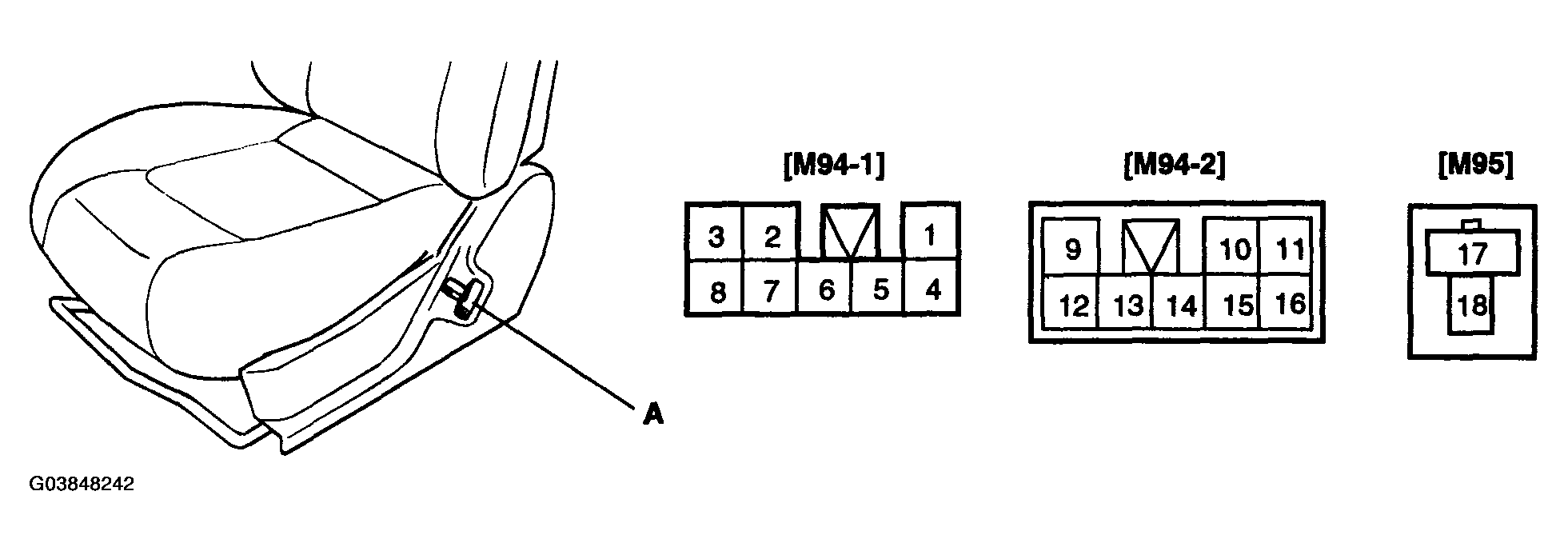

    Fig 1: Identifying Power Seat Switch Connectors
    G03848242Courtesy of HYUNDAI MOTOR CO.

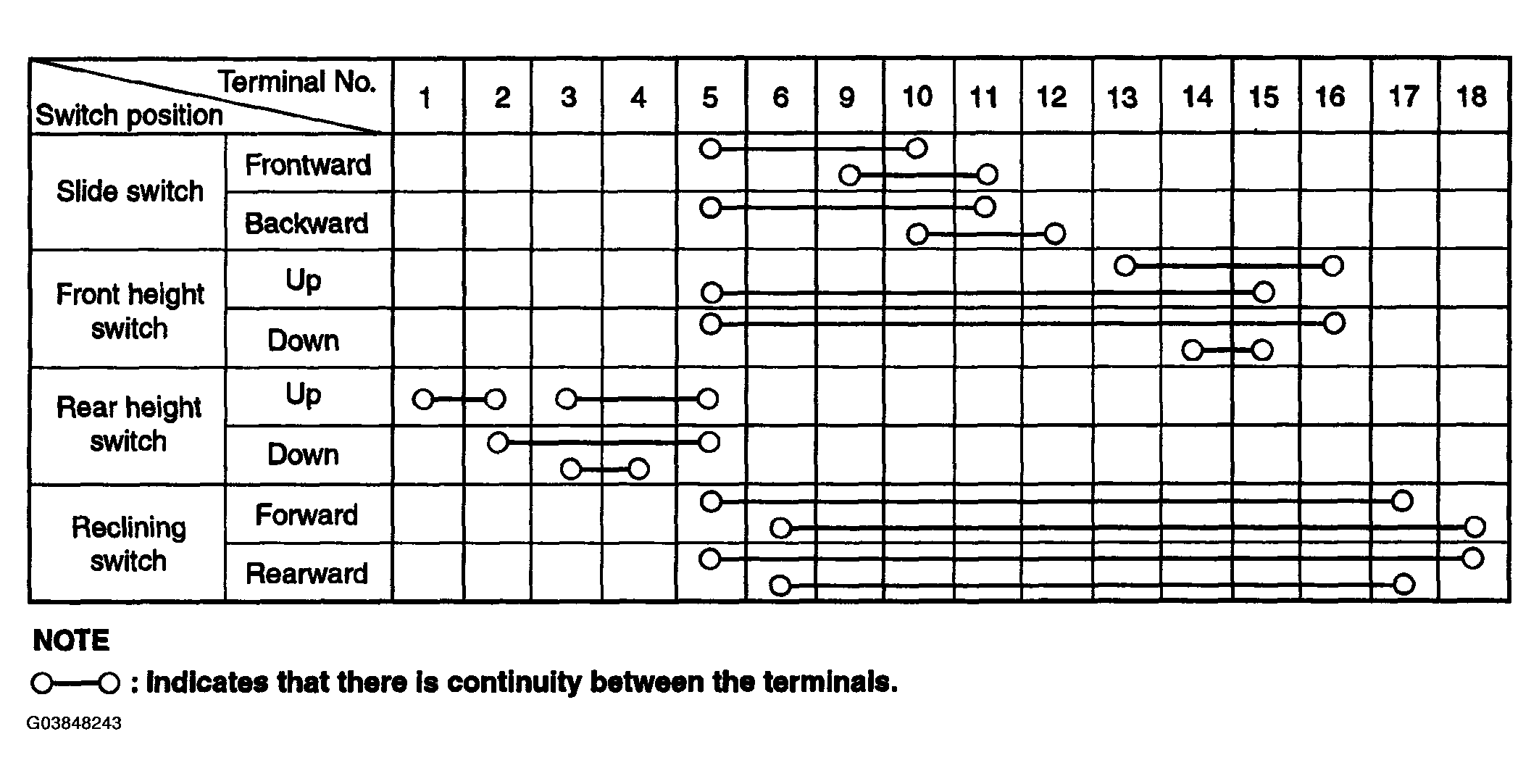

    Fig 2: Power Seat Switch Continuity Reference Table
    G03848243Courtesy of HYUNDAI MOTOR CO.
