Side Impact Sensor (Sis): Removal

WARNING: This page is about a different car, the 2005 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable and keep secure from battery.
CAUTION: Wait at least 30 seconds after disconnecting the battery cable before doing any further work.

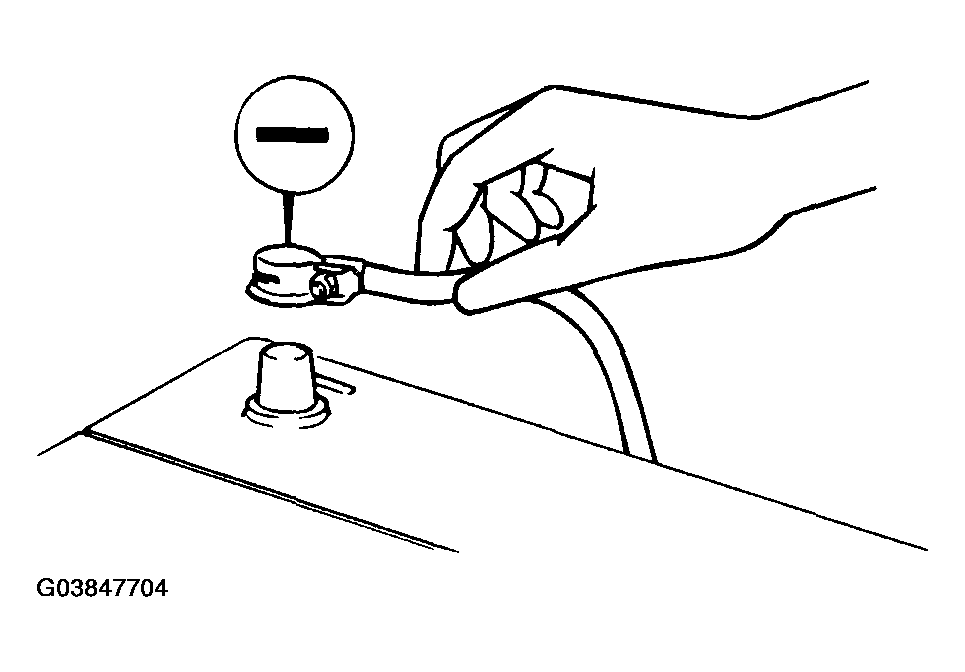

Fig 1: Disconnecting Negative Battery Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the front seat.
Remove the door scuff trim.
Remove the center pillar lower trim.
Disconnect the Side Impact Sensor connector and remove the Side Impact Sensor.
TORQUE: 8 ~ 10 Nm (80 ~ 100 kg.cm, 6 ~ 7.4 lb-ft)

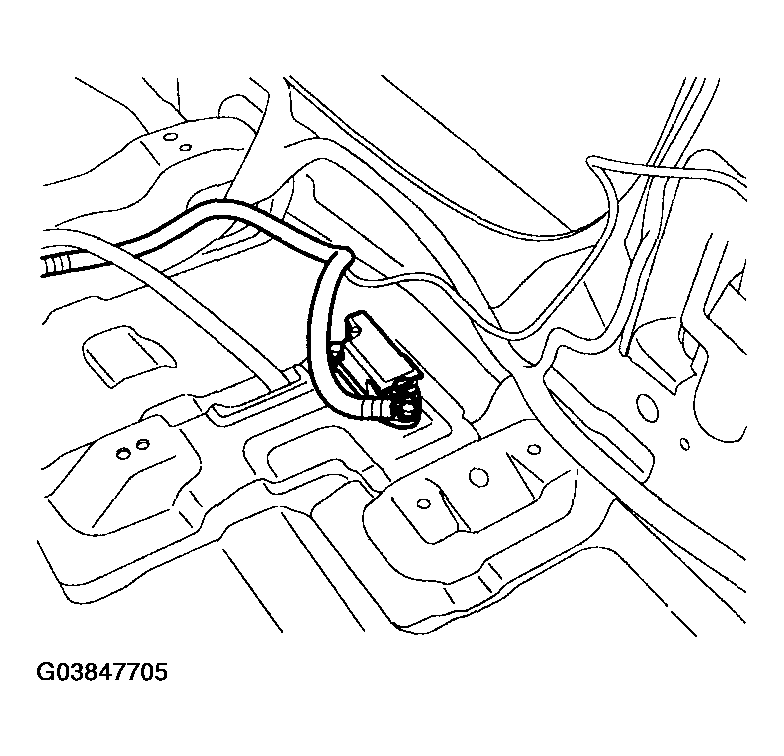

Fig 2: Disconnecting Side Impact Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
