SPECIAL SERVICE TOOL (CANADA)
| Tool (Number and name) | Illustration | Use |
|---|---|---|

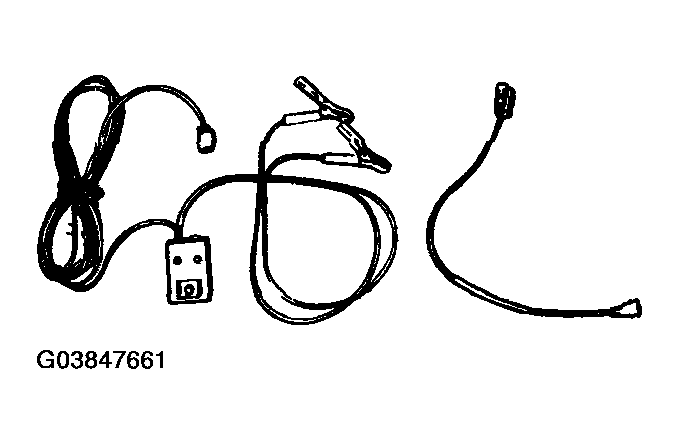

| 0957A-34100A Deployment tool |
Airbag deployment tool PAB, SAB: 0957A-38100 DAB, BPT: 0957A-38500 |
|

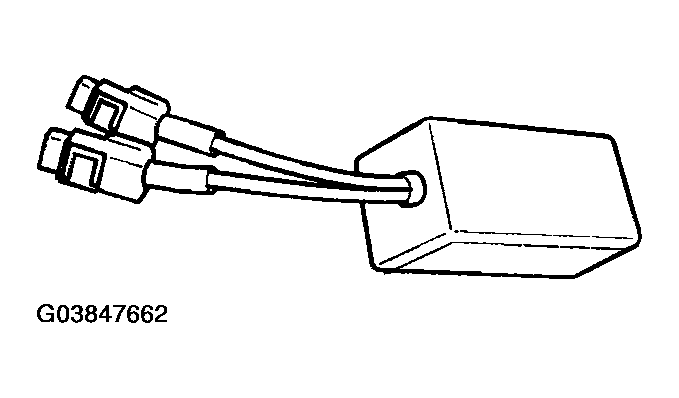

| 0957A-38200 Dummy |
Simulator to check the resistance of each wiring harness Dummy adapter PAB, SAB: 0957A-38300 DAB, BPT: 0957A-1C000 |
|
| 0957A-38100 Deployment adapter |
Use with deployment tool | |
| 0957A-38500 Deployment adapter |
Use with deployment tool | |
| 0957A-38300 Dummy adapter |
Use with dummy | |
| 0957A-1C000 Dummy adapter |
Use with dummy | |
| 09561-11002 Steering wheel puller |
Measurement of the main shaft preload |
