Clock Spring

WARNING: This page is about a different car, the 2005 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. If, as a result of the next check, even one abnormal point is discovered, replace the clock spring with a new one.
  2. Check connectors and the protective tube for damage, and terminals for deformities.

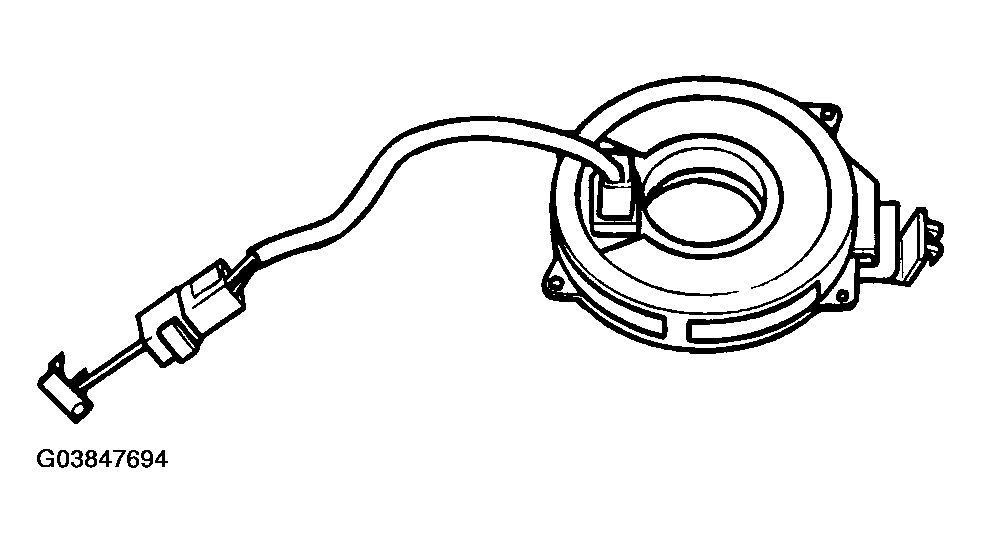

    Fig 1: Checking Connectors And Protective Tube For Damage And Terminals For Deformities
    G03847694Courtesy of HYUNDAI MOTOR CO.
