Air Bag Module (Drive Side) And Clock Spring: Components

WARNING: This page is about a different car, the 2005 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

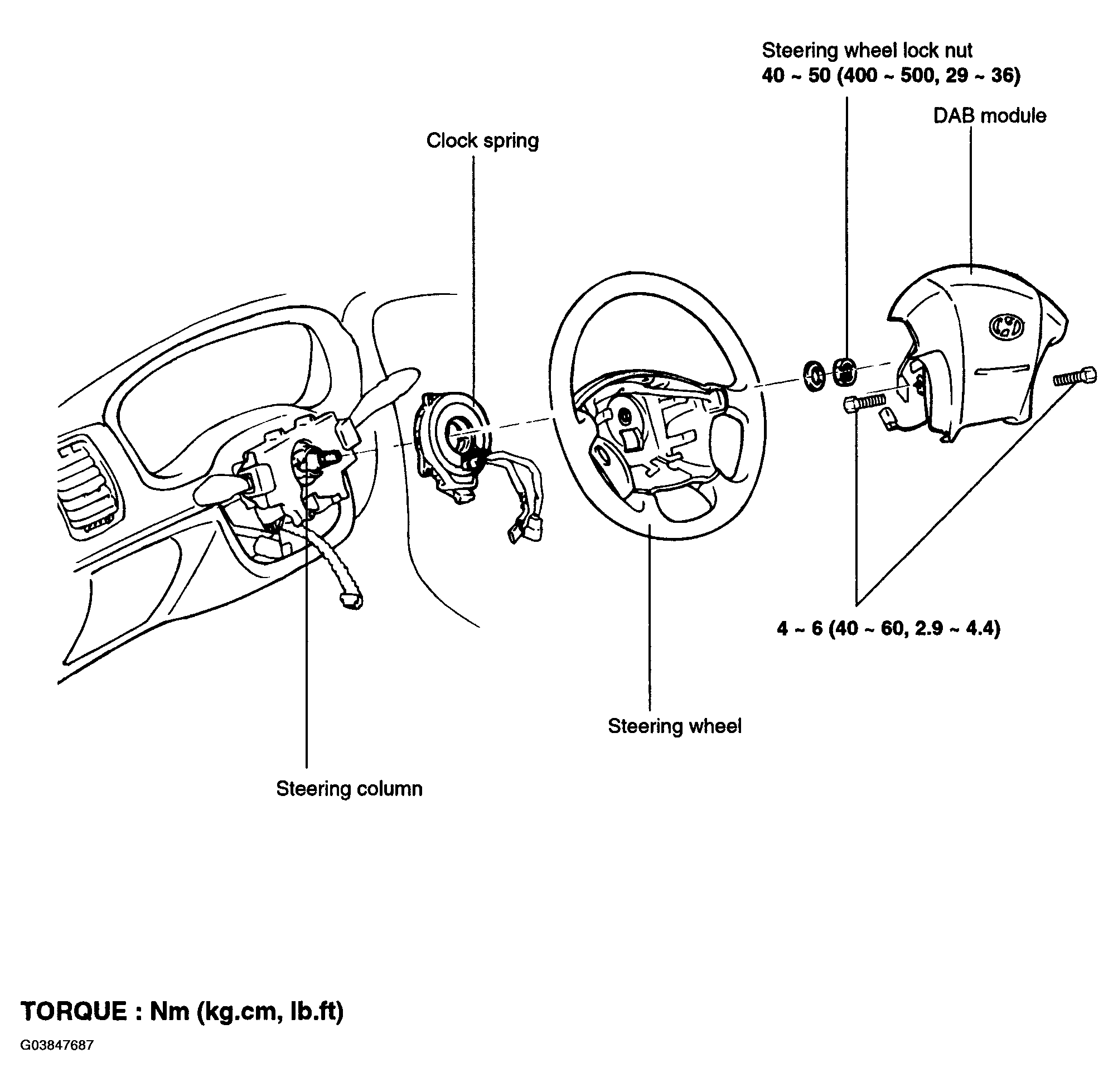

Fig 1: Air Bag Module (Drive Side) And Clock Spring Replacement Components With Torque Specifications
G03847687Courtesy of HYUNDAI MOTOR CO.
