Main Moving System: Crankshaft: Components

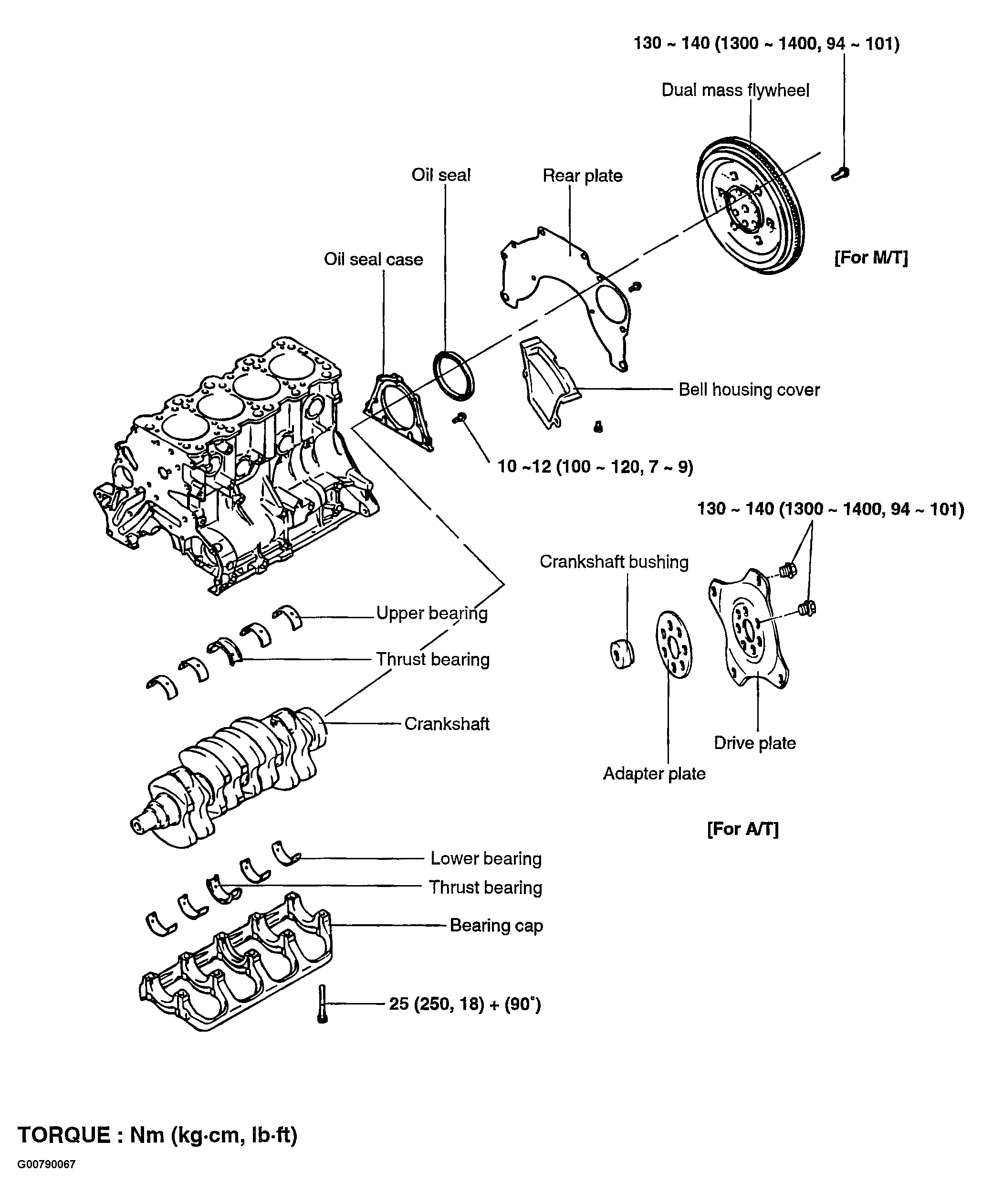

Fig 1: Crankshaft Components

G00790067

Courtesy of HYUNDAI MOTOR CO.
