Front Roll Stopper

Remove the front roll stopper bracket from the sub-frame.

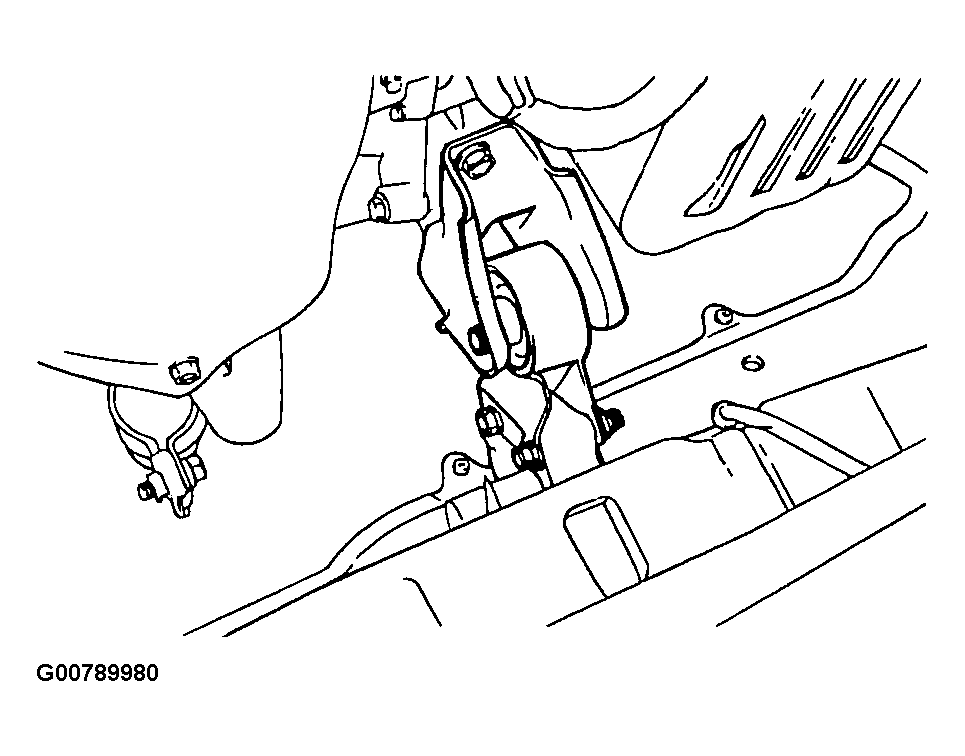

Fig 1: Identifying Front Roller Stopper Bracket

G00789980

Courtesy of HYUNDAI MOTOR CO.
