Front Door

Remove the screw holding the inside door handle trim.

Fig 1: Identifying Screw Holding Inside Door Handle Trim
Courtesy of HYUNDAI MOTOR CO.
Remove the screws holding the door trim panel.

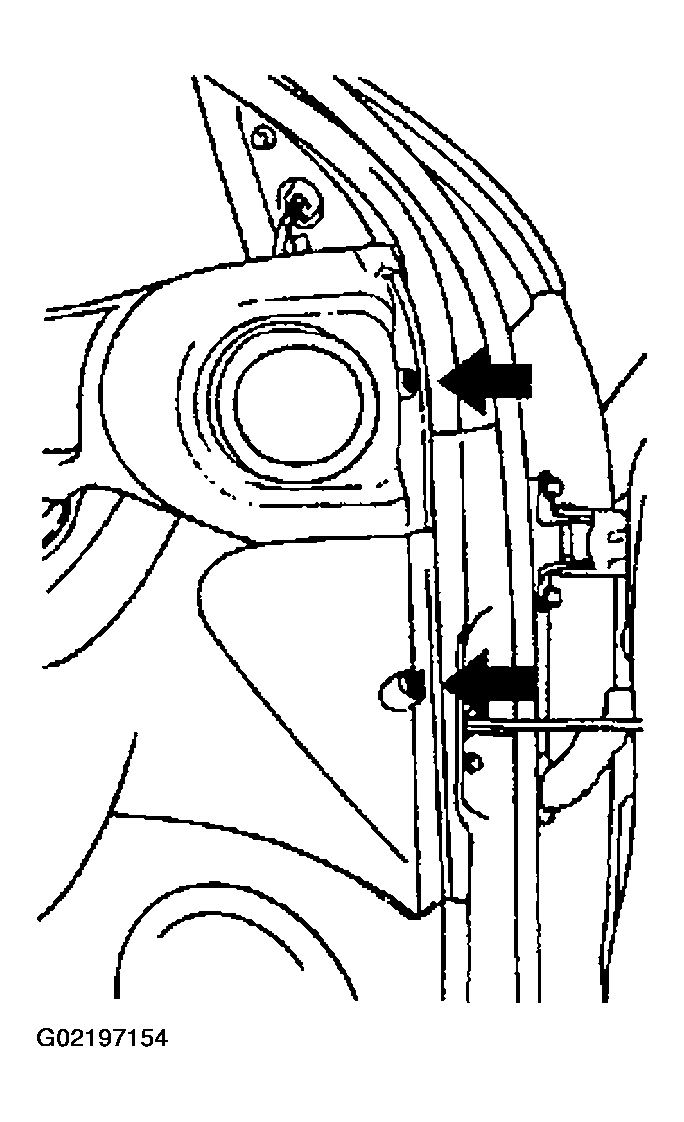

Fig 2: Identifying Screws Holding Door Trim Panel (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

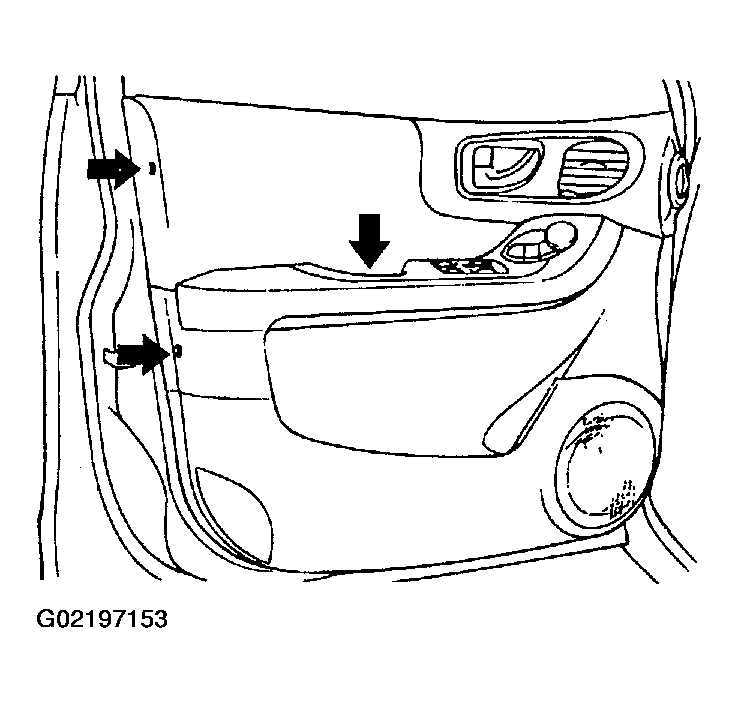

Fig 3: Identifying Screws Holding Door Trim Panel (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Insert a trim panel remover between the trim fasteners and the door trim panel to pry off.
Disconnect the wire connectors from the front door.

Fig 4: Inserting Trim Panel Remover
Courtesy of HYUNDAI MOTOR CO.
Remove the front speaker and the door vapor barrier.

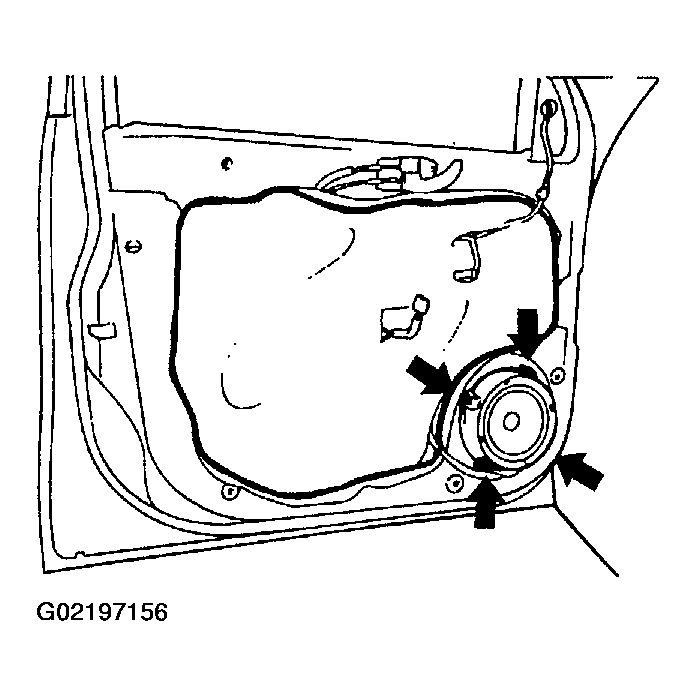

Fig 5: Removing Front Door Speaker & Door Vapor Barrier
Courtesy of HYUNDAI MOTOR CO.
Roll the door glass down and then remove the bolts holding the front door glass.

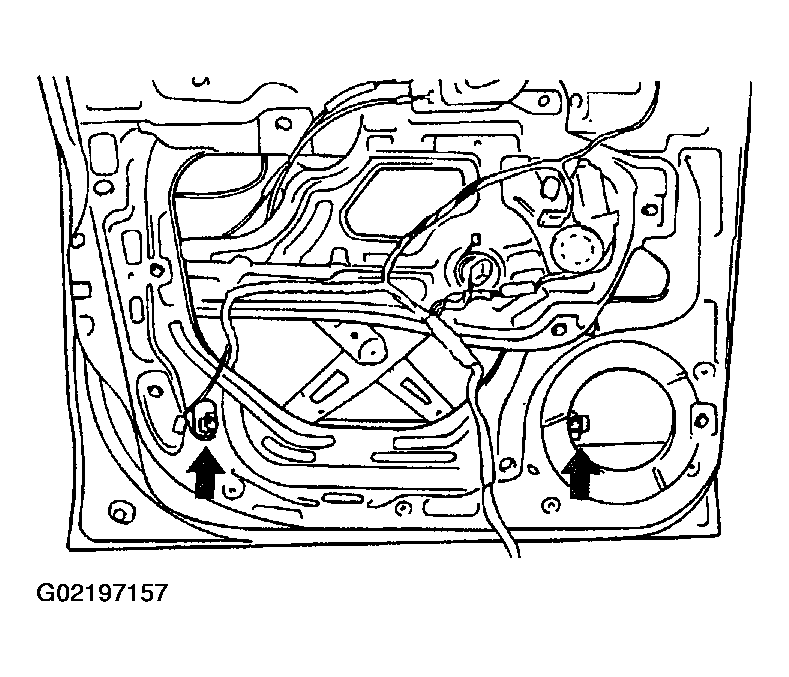

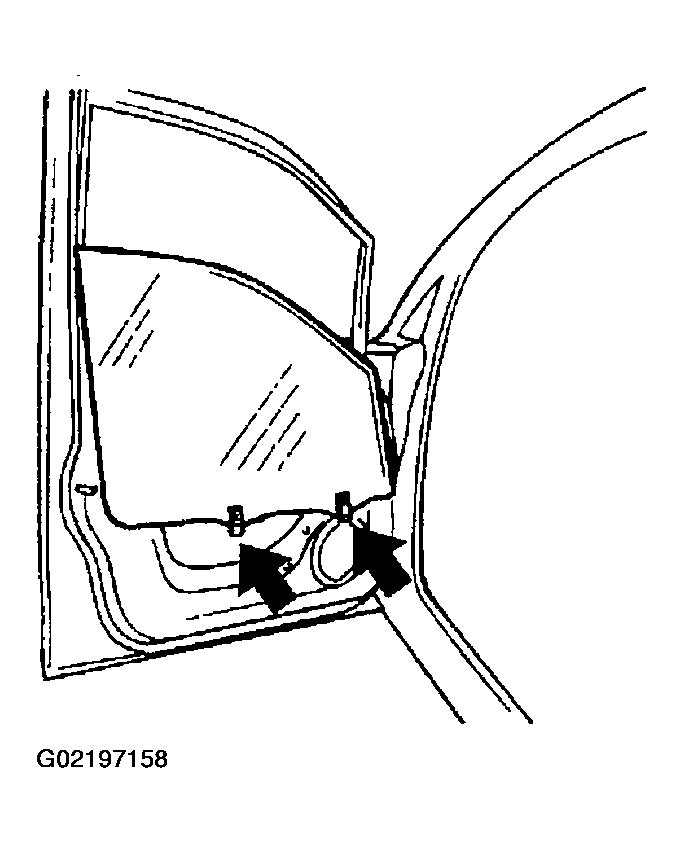

Fig 6: Identifying Bolts Holding Front Door Glass
Courtesy of HYUNDAI MOTOR CO.
Remove the front door glass from the front door module.

Fig 7: Removing Front Door Glass
Courtesy of HYUNDAI MOTOR CO.
Remove the front door window glass run.

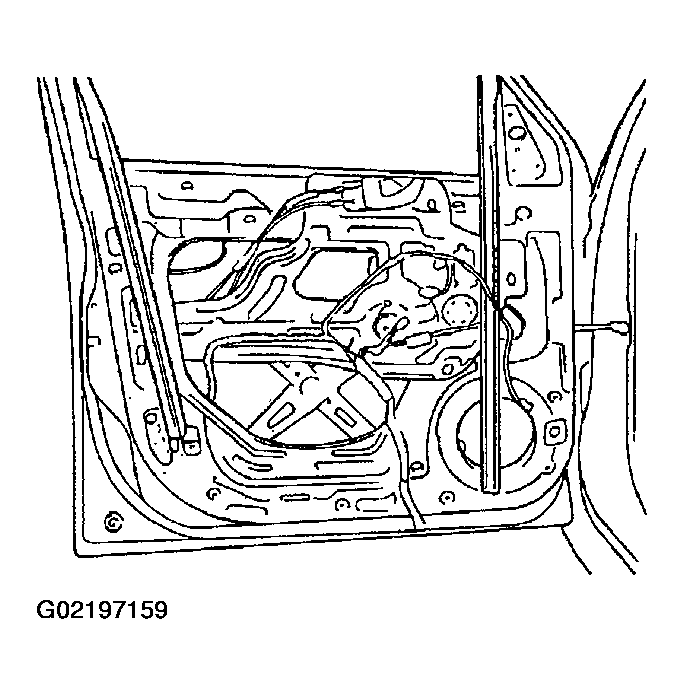

Fig 8: Removing Front Door Window Glass Run
Courtesy of HYUNDAI MOTOR CO.
Remove the front and rear channels from the front door.

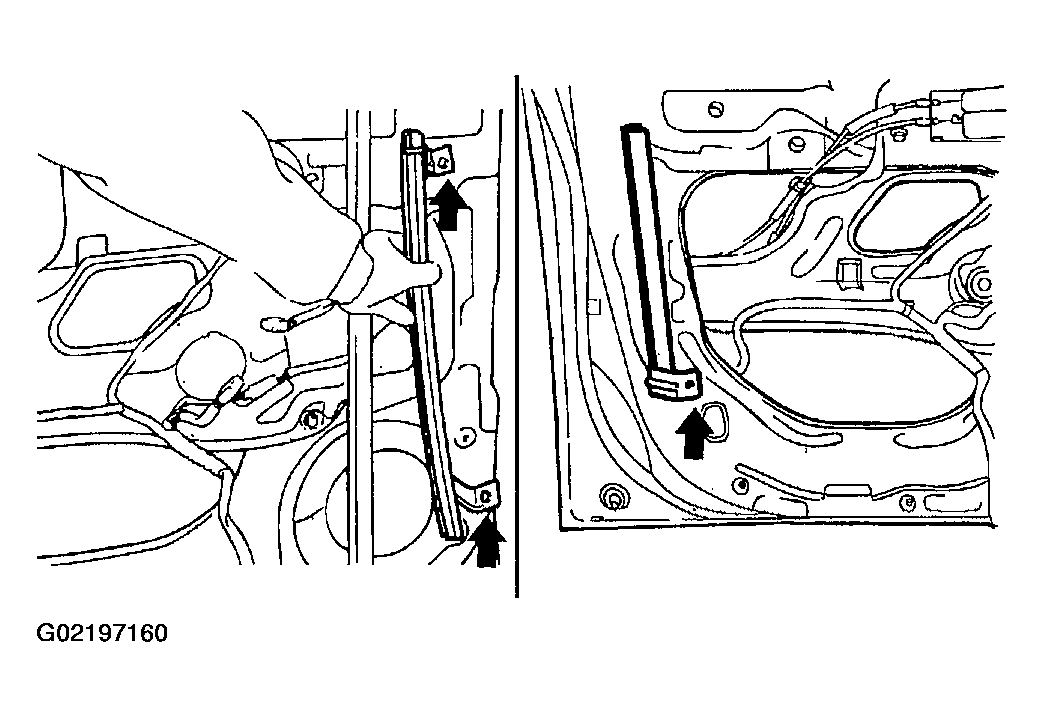

Fig 9: Removing Front & Rear Channels From Front Door
Courtesy of HYUNDAI MOTOR CO.
Disconnect the rod from the exterior handle. Remove the bolts holding the latch and the door lock actuator.

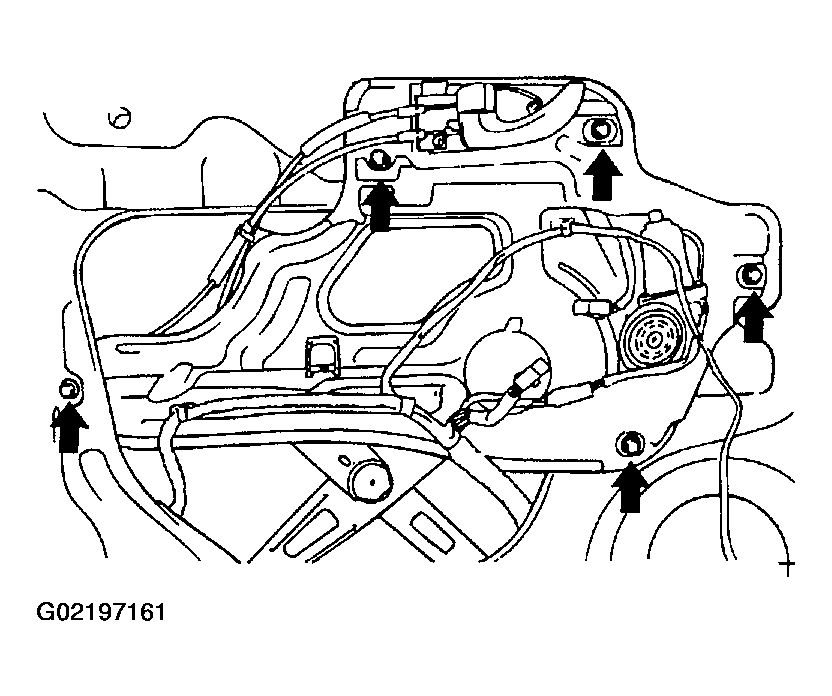

Fig 10: Identifying Front Door Module Assembly Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the wire harness and the front door module.

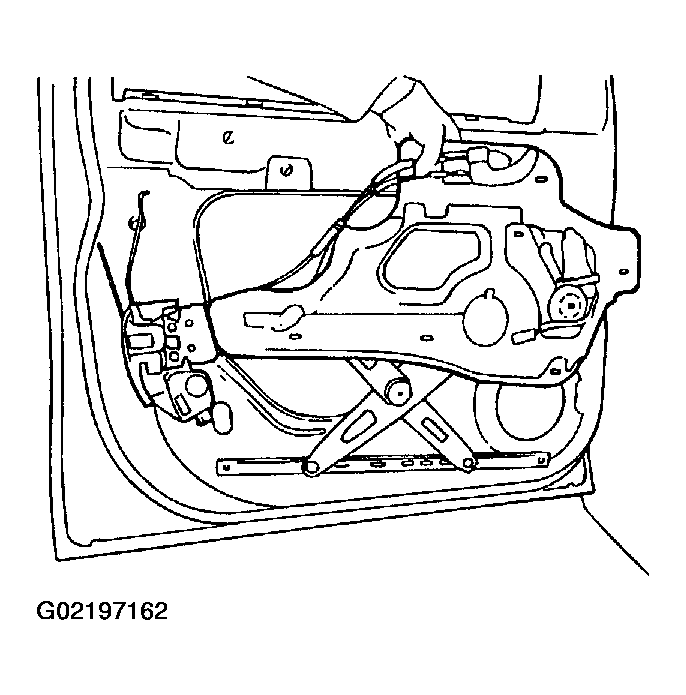

Fig 11: Removing Door Module Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
When installing the door vapor barrier, butyl tape should not be placed so it blocks the door trim fastener holes.
