Ignition Switch: Troubleshooting

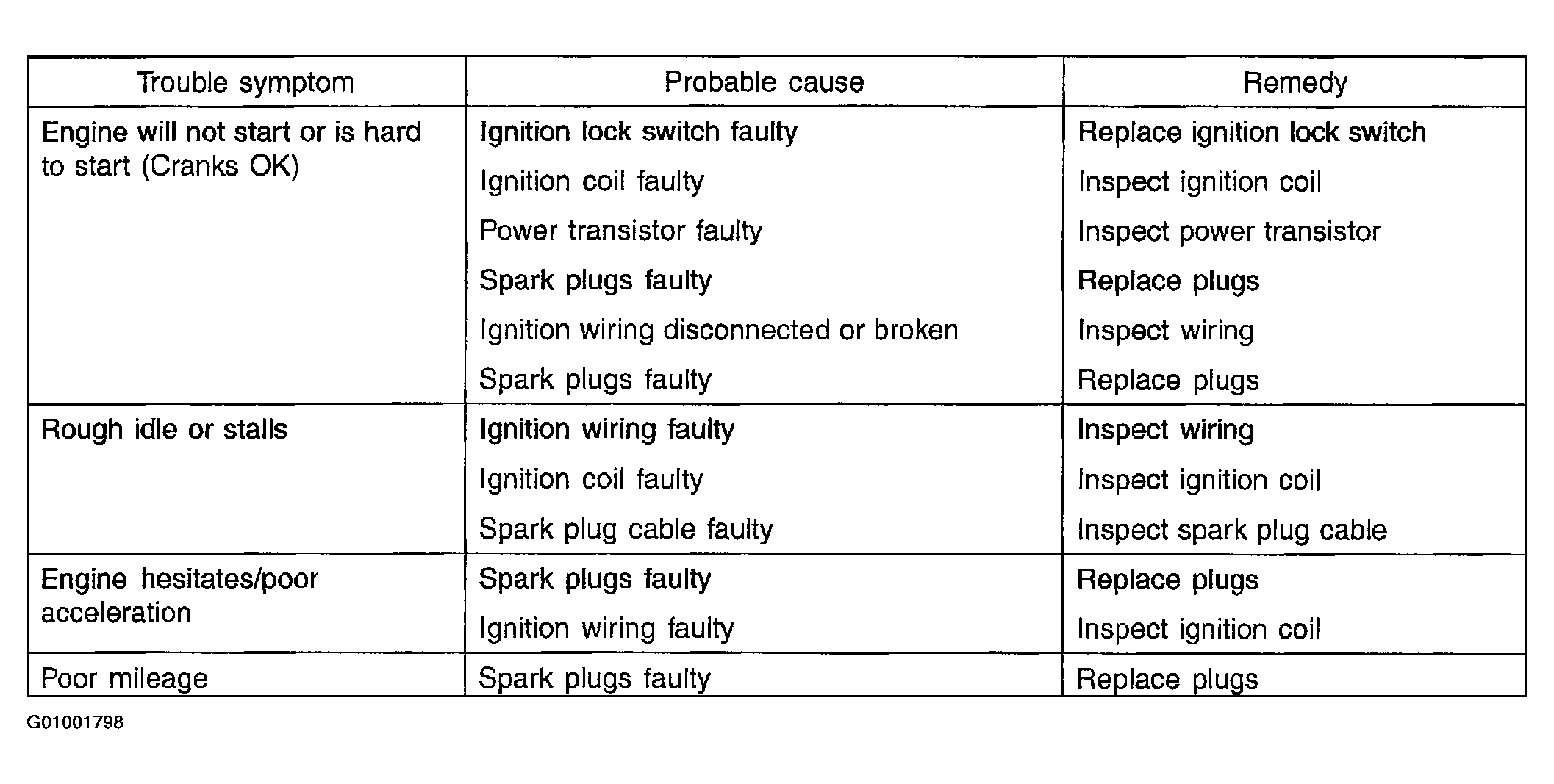

Fig 1: Troubleshooting Symptom Chart

G01001798

Courtesy of HYUNDAI MOTOR CO.
