Operation Check

Check that the lights operate according to the following timing chart.

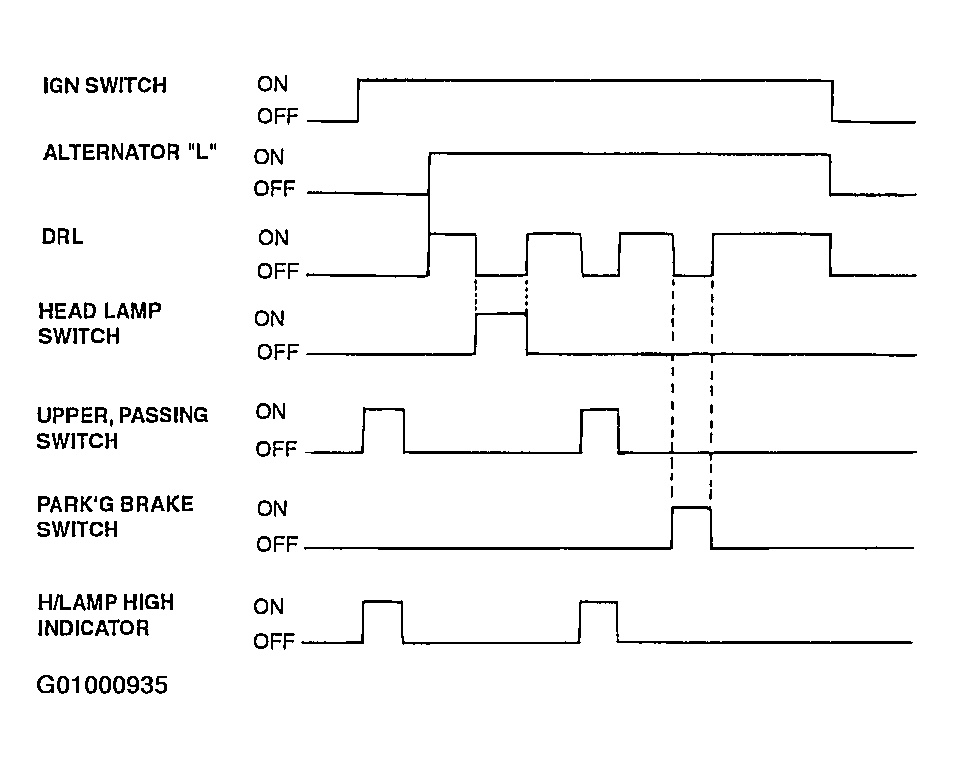

Fig 1: Daytime Running Light Timing Chart
G01000935Courtesy of HYUNDAI MOTOR CO.
