Manual Transaxle: Removal

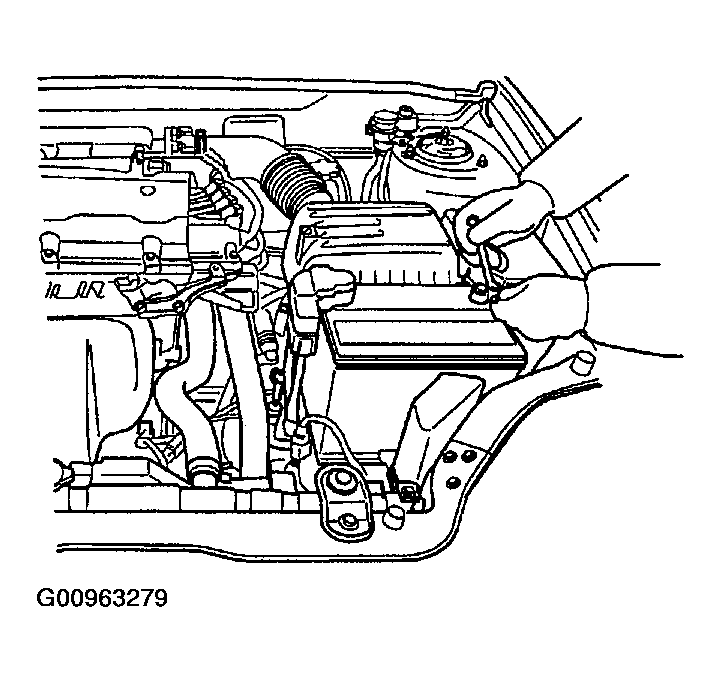

Remove the battery terminal.

Fig 1: Disconnecting Battery Terminal
Courtesy of HYUNDAI MOTOR CO.

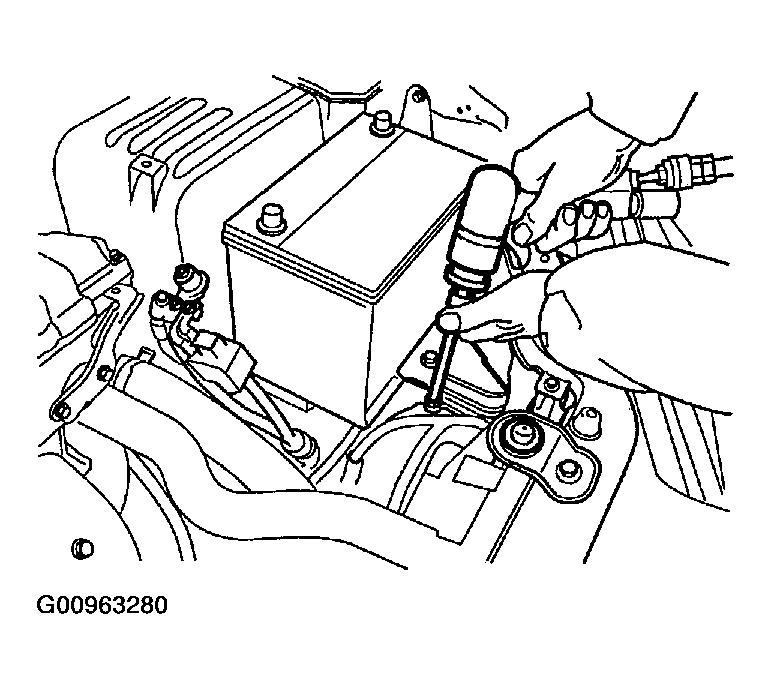

Remove the battery tray.

Fig 2: Removing Battery Tray
Courtesy of HYUNDAI MOTOR CO.

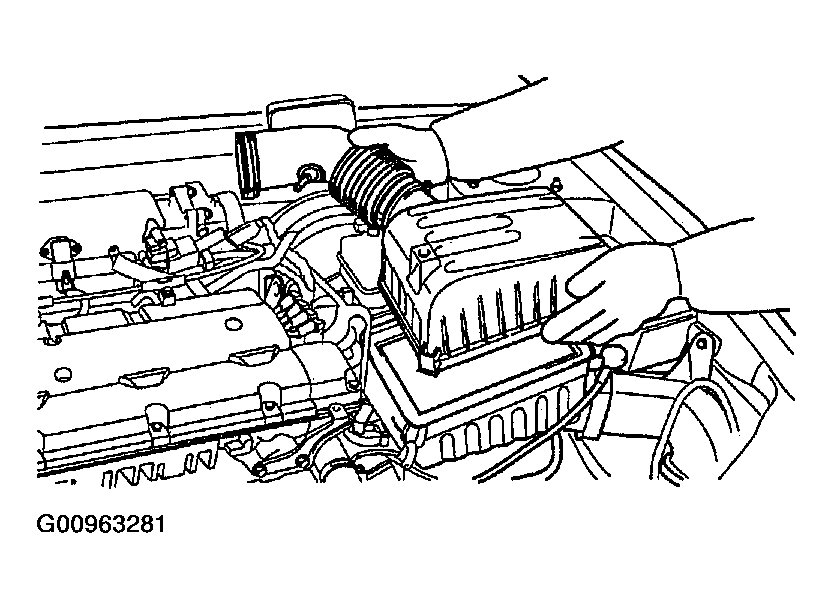

Remove the air cleaner.
1. Upper

  Fig 3: Removing Upper Air Cleaner
  Courtesy of HYUNDAI MOTOR CO.
2. Lower

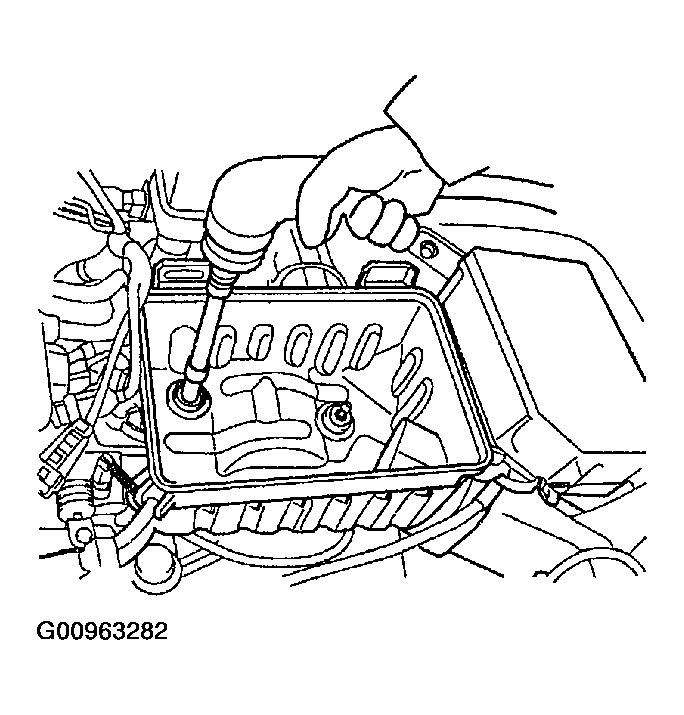

  Fig 4: Removing Lower Air Cleaner
  Courtesy of HYUNDAI MOTOR CO.
Remove the back-up lamp switch.

Fig 5: Removing Back-Up Lamp Switch
Courtesy of HYUNDAI MOTOR CO.
After removing the CKP sensor, O2 sensor and oil pressure switch wiring bracket, separate the connectors.

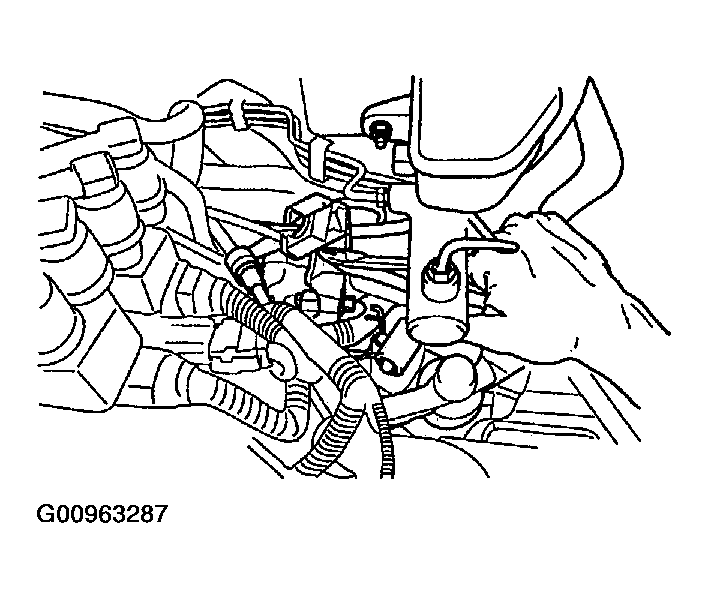

Fig 6: Removing Wiring Bracket
Courtesy of HYUNDAI MOTOR CO.
Remove the speedometer driven gear connector.

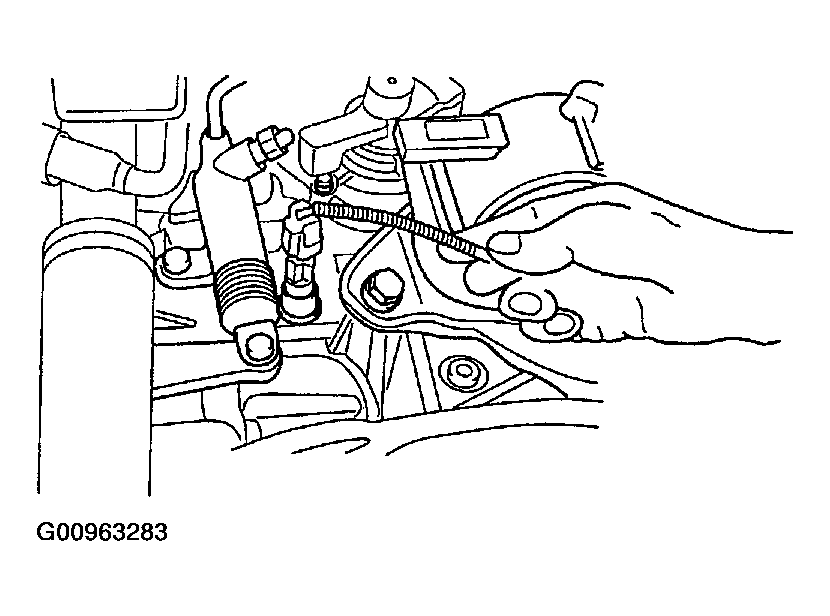

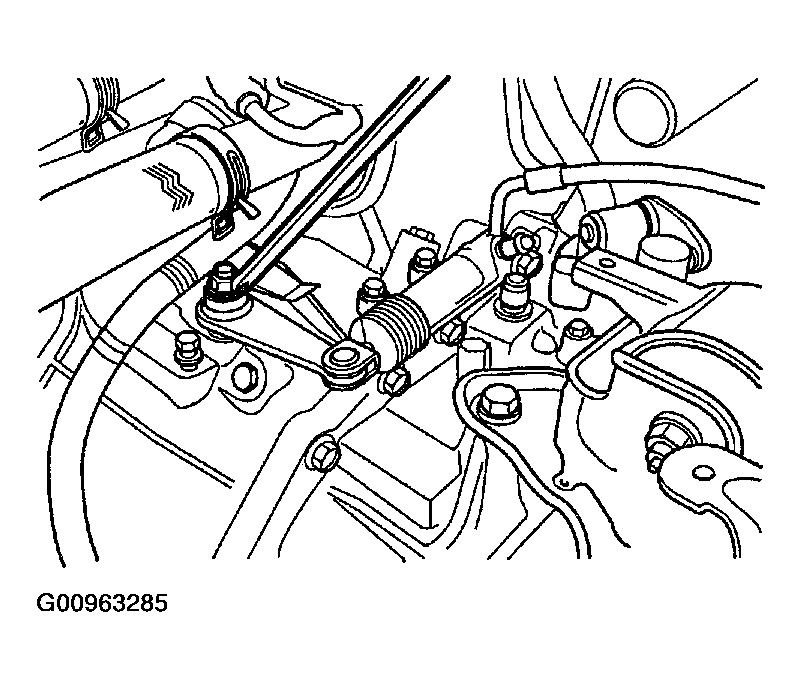

Remove the clutch release cylinder mounting bolt.

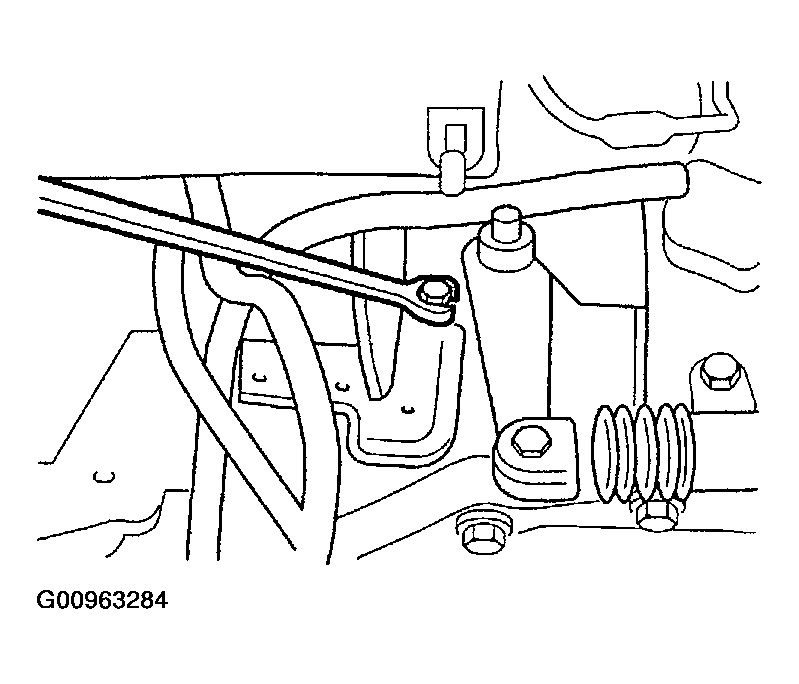

Fig 7: Removing Clutch Release Cylinder Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

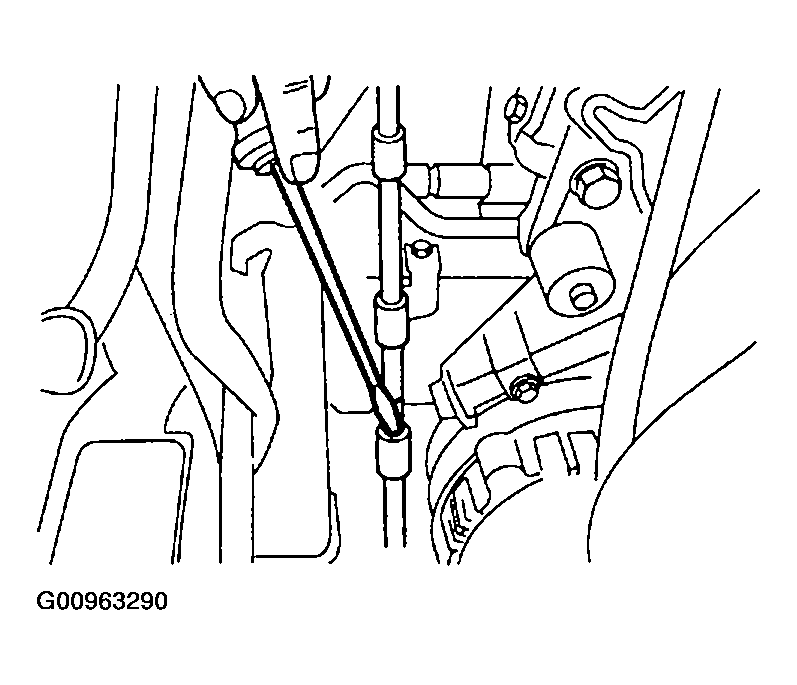

Remove the cotter pin of the shift cable (transaxle side).
Remove the cotter pin of the select cable (transaxle side).
Remove the clip of the shift cable (transaxle side).

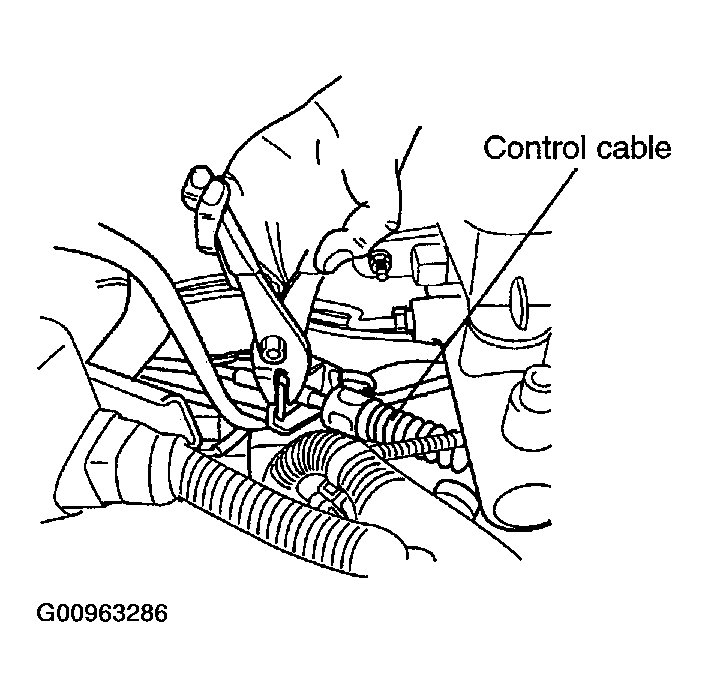

Fig 8: Removing Shift Cable Clip
Courtesy of HYUNDAI MOTOR CO.
Remove the clip of the select cable (transaxle side).

Fig 9: Removing Select Cable Clip
Courtesy of HYUNDAI MOTOR CO.
Separate the steering column shaft joint.

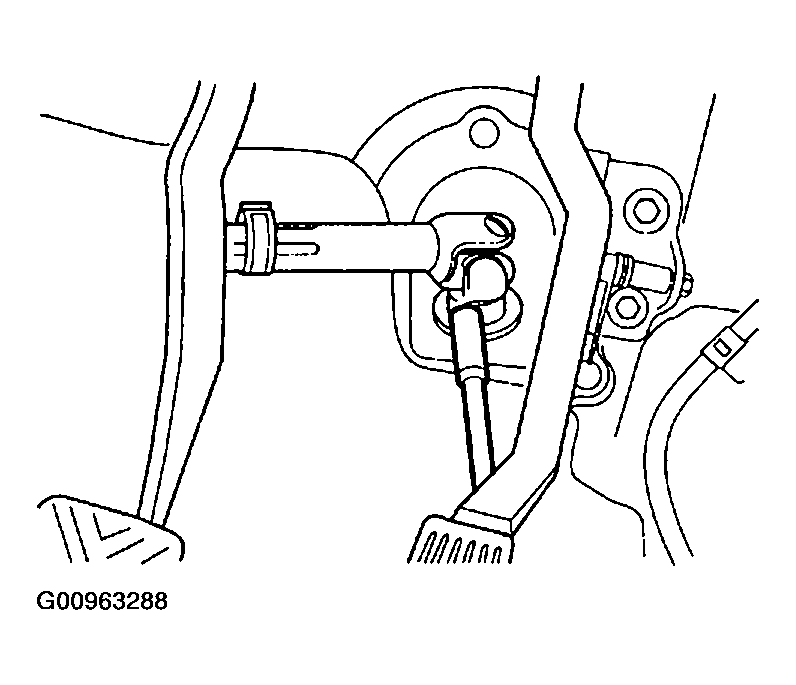

Fig 10: Separating Steering Column Shaft Joint
Courtesy of HYUNDAI MOTOR CO.
Separate the power steering oil pump hose.

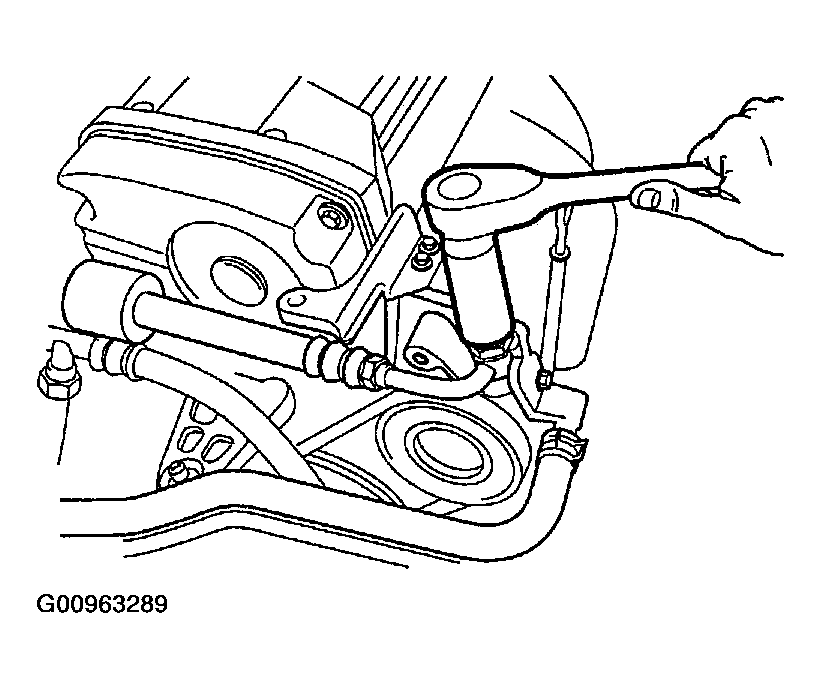

Fig 11: Separating Power Steering Oil Pump Hose
Courtesy of HYUNDAI MOTOR CO.

NOTE: Be careful not to leak after separating.
Separate the hose after removing the clip of the power steering return hose.

Fig 12: Separating Hose From Clips
Courtesy of HYUNDAI MOTOR CO.
Remove the upper connecting transaxle bolt.

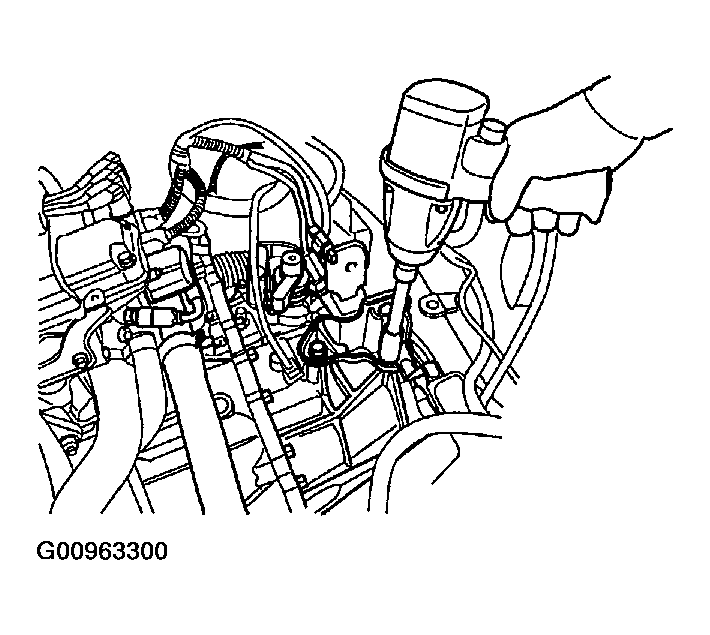

Fig 13: Removing Upper Transaxle Bolt
Courtesy of HYUNDAI MOTOR CO.
Separate the start motor.
Install the engine support fixture.

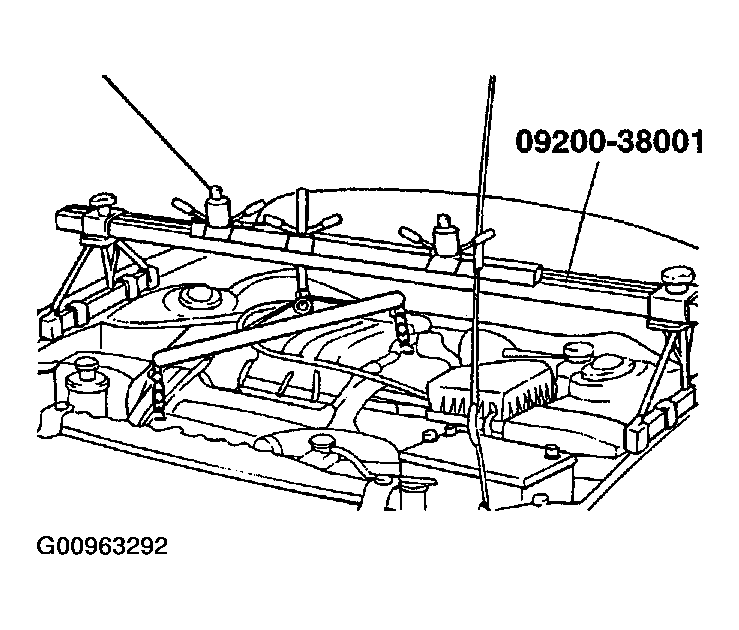

Fig 14: Installing Engine Support Fixture
Courtesy of HYUNDAI MOTOR CO.

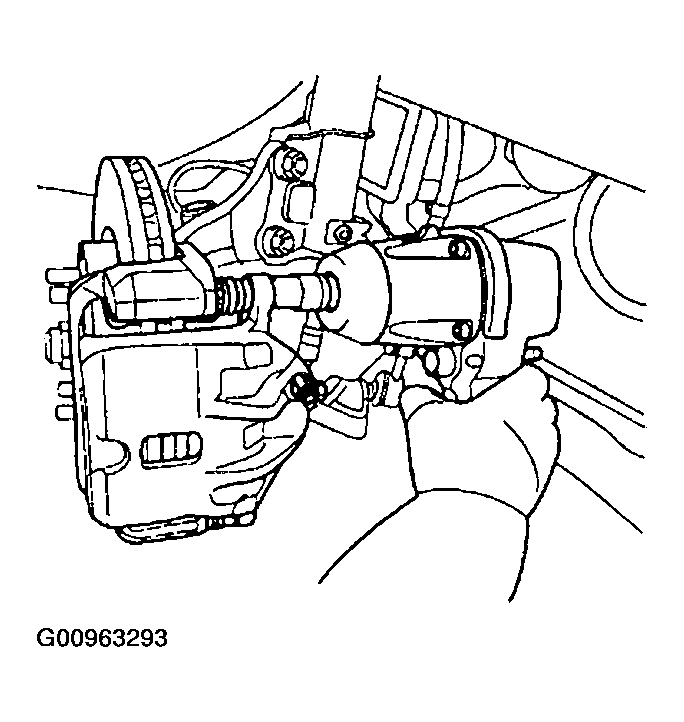

After removing the tire, remove the caliper.

Fig 15: Removing Brake Caliper
Courtesy of HYUNDAI MOTOR CO.

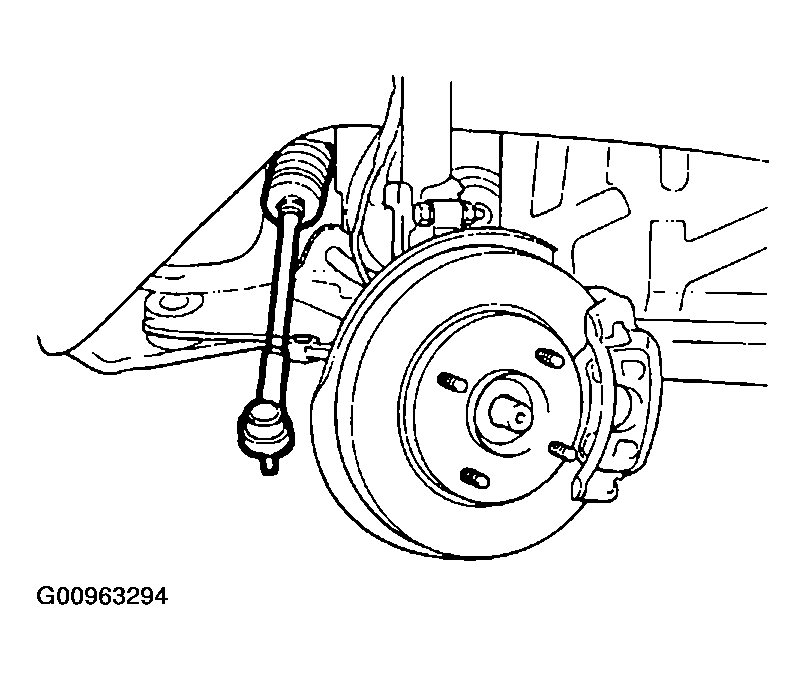

Separate the tie rod end.

Fig 16: Separating Tie Rod End
Courtesy of HYUNDAI MOTOR CO.

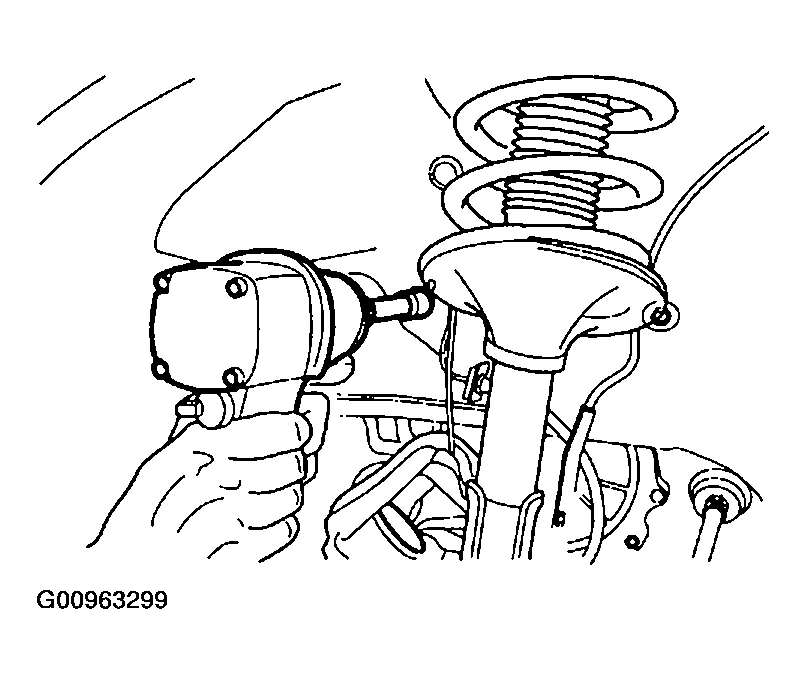

Remove the wheel speed sensor and the knuckle mounting bolt.

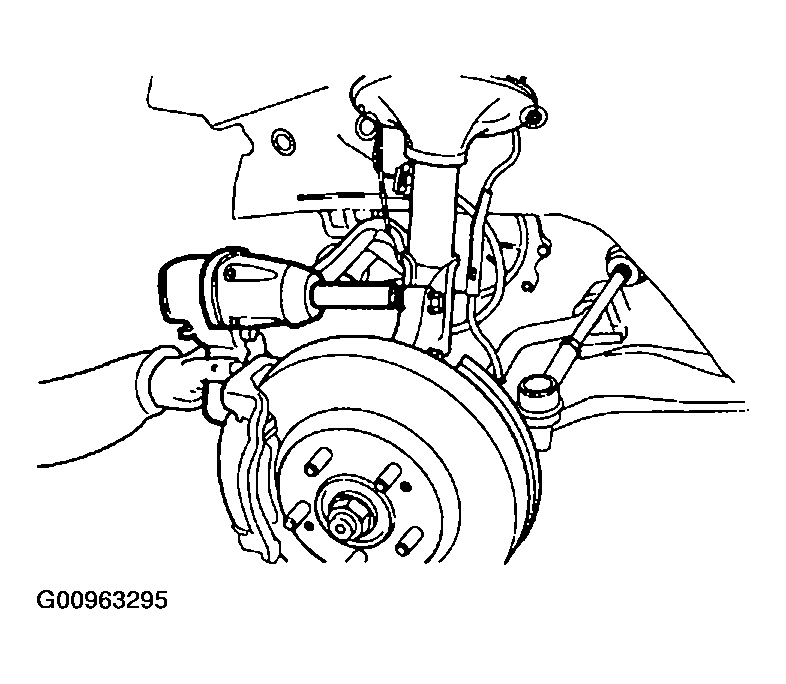

Fig 17: Removing Upper Knuckle Bolt
Courtesy of HYUNDAI MOTOR CO.
Drain the oil.

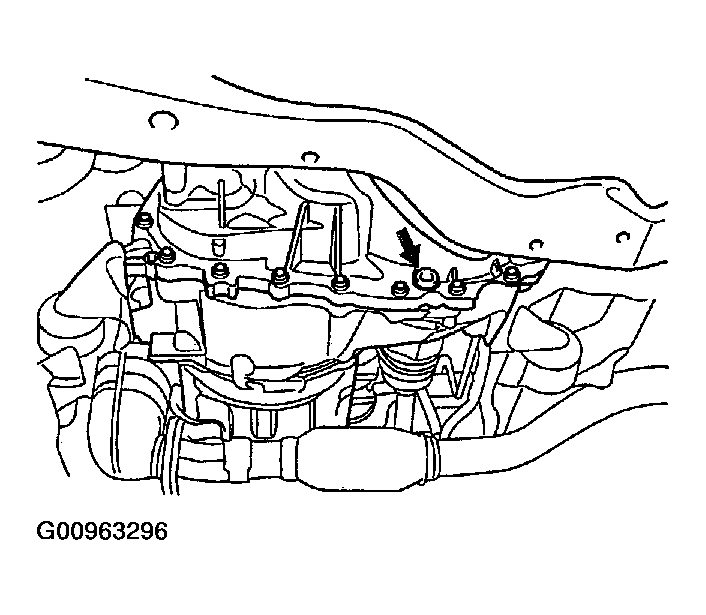

Fig 18: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR CO.

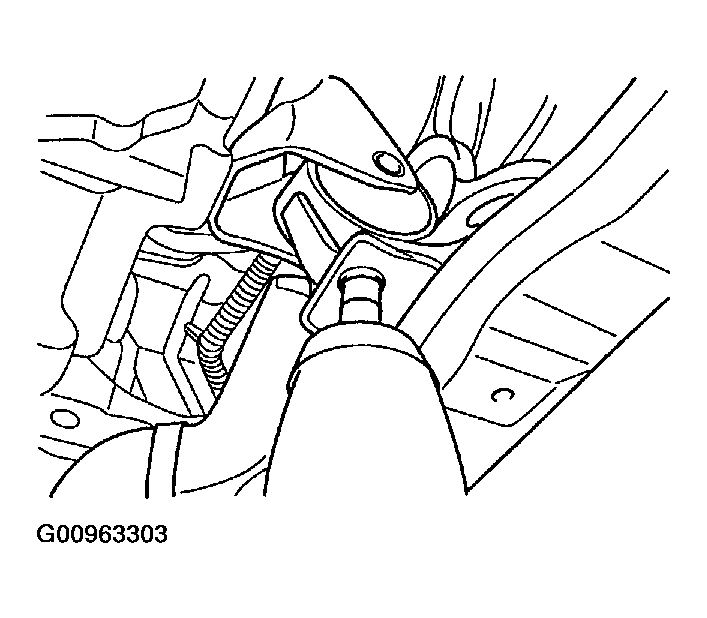

Remove the transaxle mounting bracket.
1. Insulator bolt

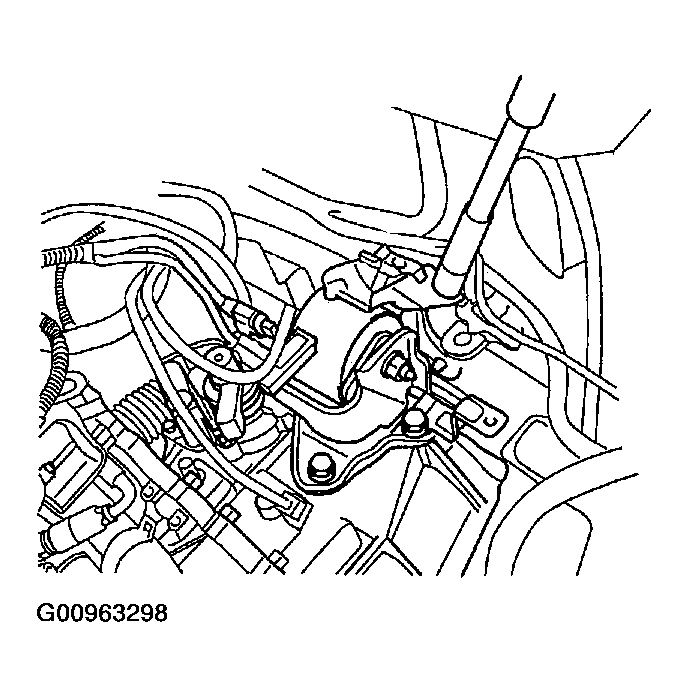

  Fig 19: Removing Transaxle Mounting Bracket Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Body side mounting bolt (Upper)

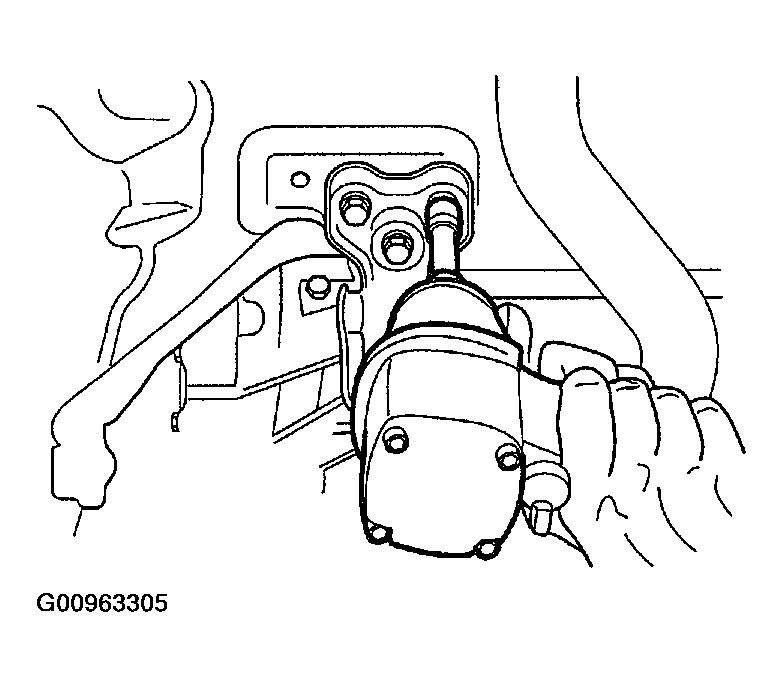

  Fig 20: Removing Upper Body Mount Bolt
  Courtesy of HYUNDAI MOTOR CO.
3. Body side mounting bolt (Side)

  Fig 21: Removing Side Body Mount Bolt
  Courtesy of HYUNDAI MOTOR CO.
4. Transaxle side mounting bolt.

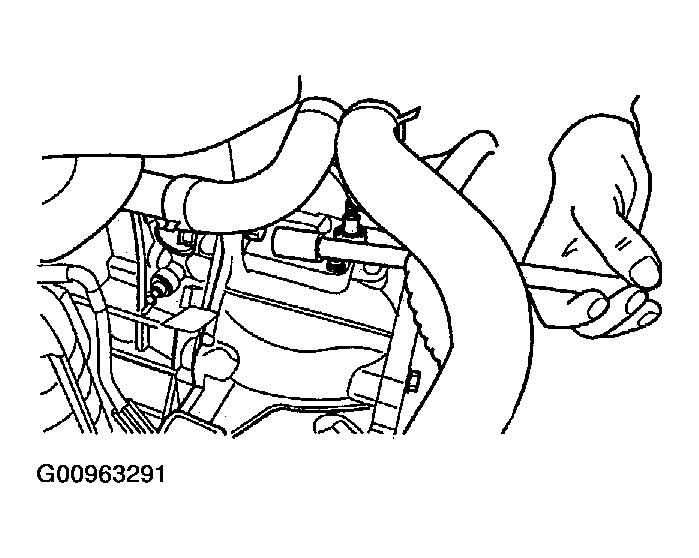

  Fig 22: Removing Transaxle Side Mounting Bolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the front roll stopper.
1. Insulator bolt

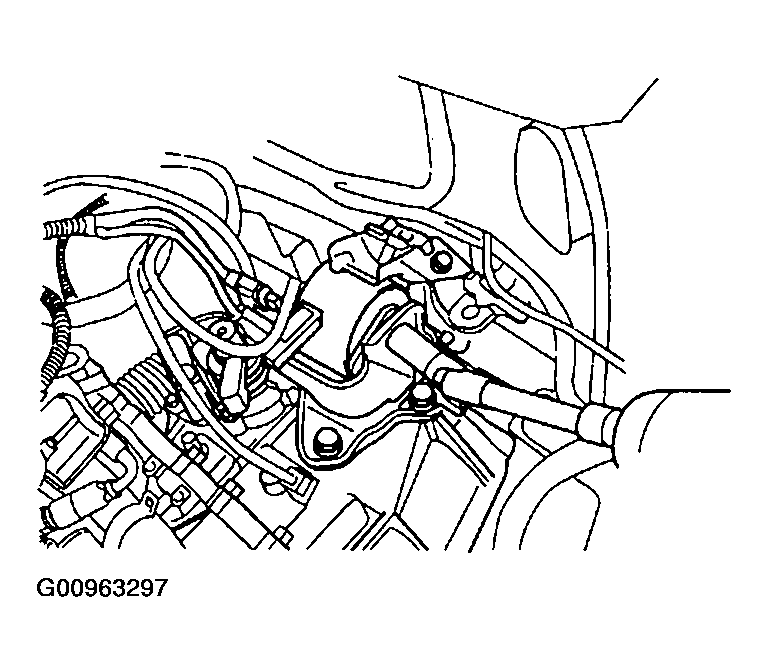

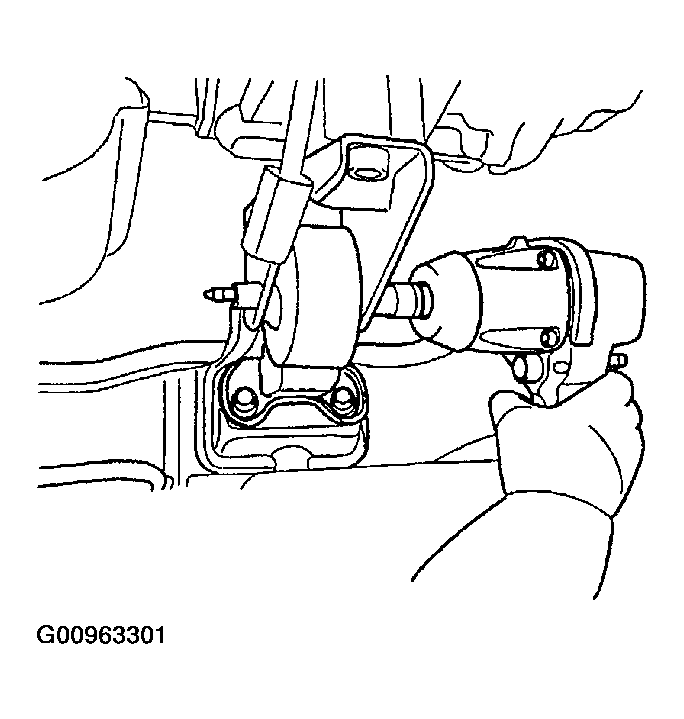

  Fig 23: Removing Front Roller Stopper Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt (Upper)

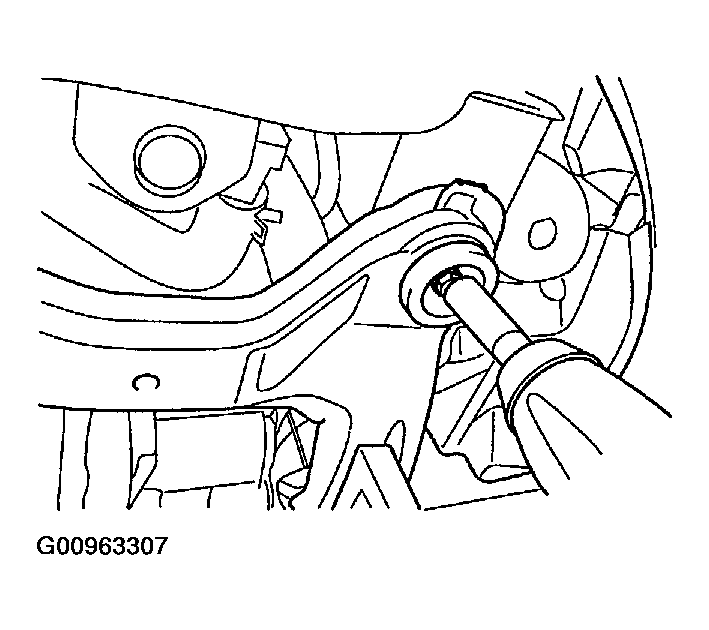

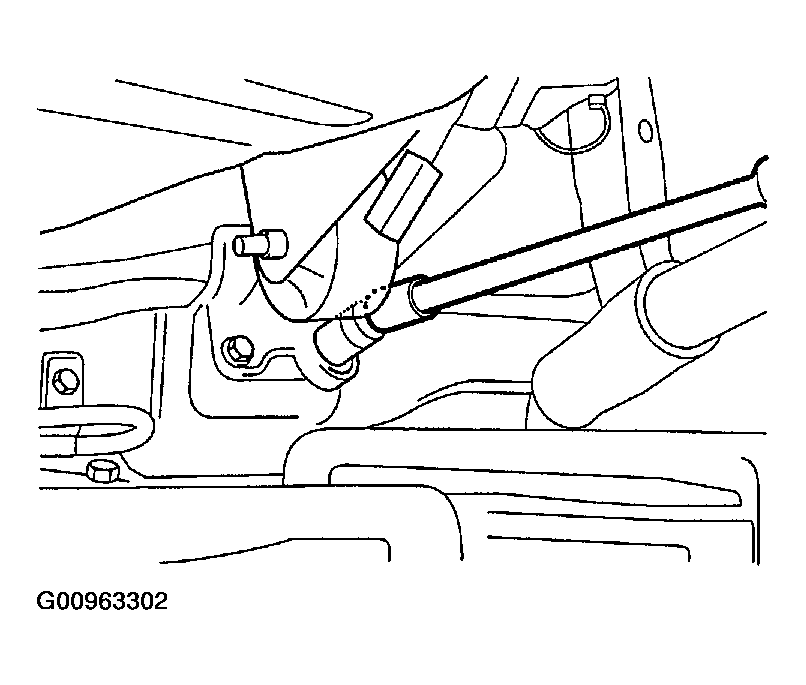

  Fig 24: Removing Upper Stopper Bolt
  Courtesy of HYUNDAI MOTOR CO.
3. Stopper bolt (Lower)

  Fig 25: Removing Lower Stopper Bolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the rear roll stopper.
1. Insulator bolt

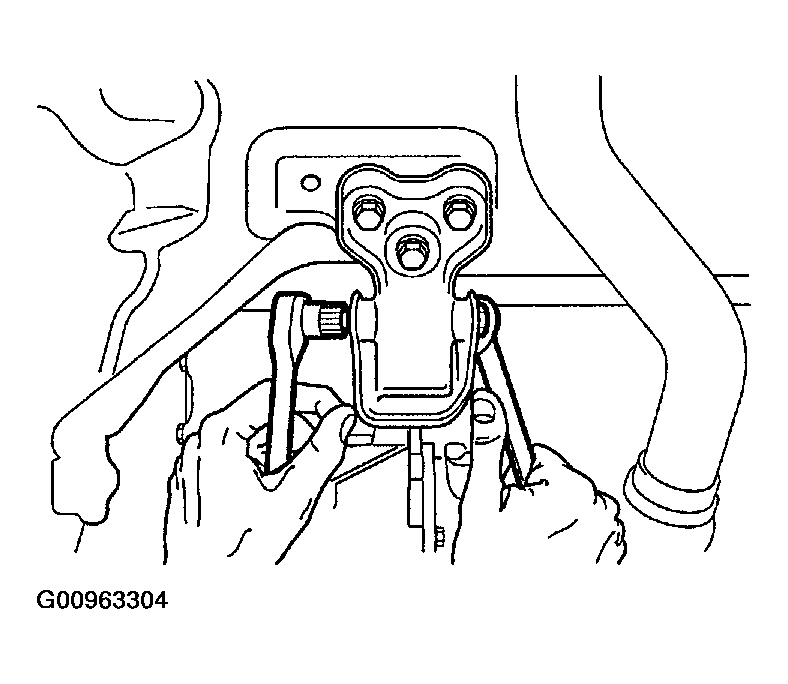

  Fig 26: Remove The Rear Roll Stopper Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt

  Fig 27: Removing Stopper Bolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the drive shaft.

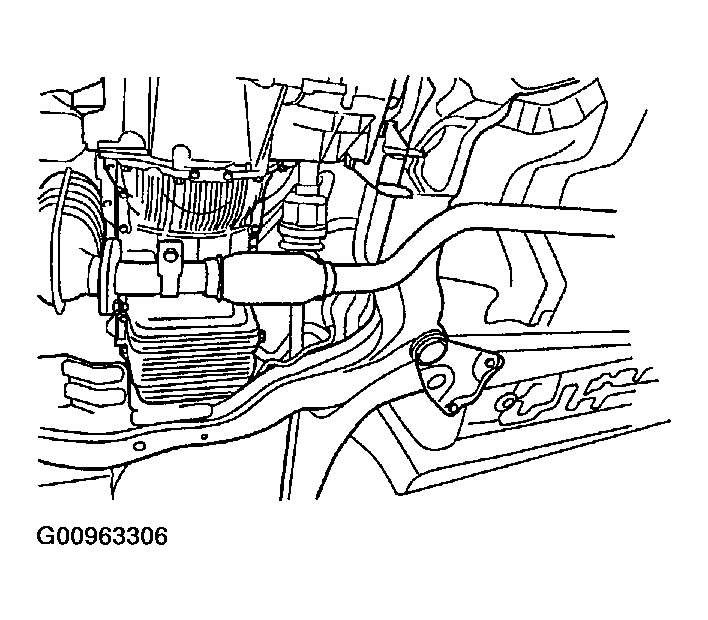

Remove the muffler.

Fig 28: Identifying Muffler
Courtesy of HYUNDAI MOTOR CO.
Remove the sub frame mounting bolt.

Fig 29: Removing Subframe Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

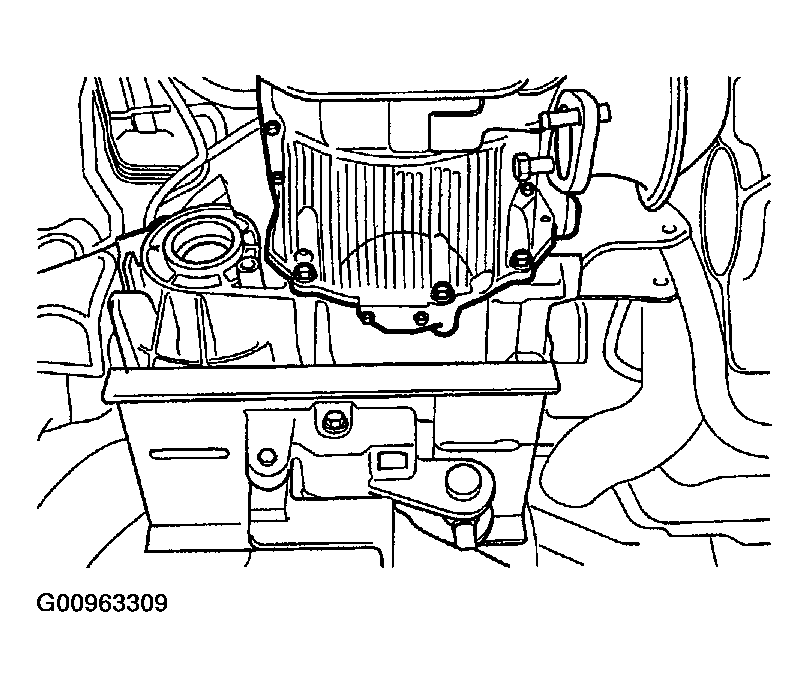

Install the transaxle jack.

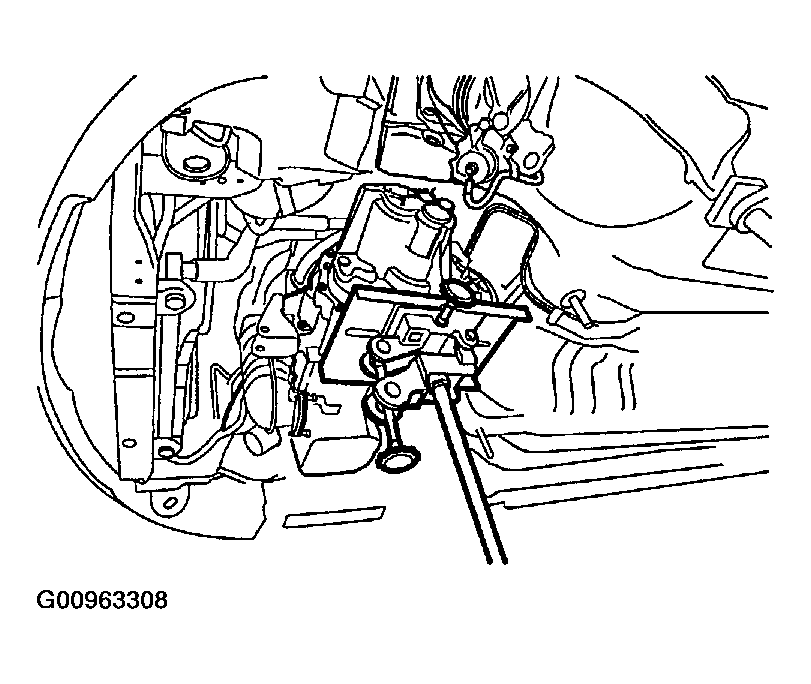

Fig 30: Installing Jack
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle lower mounting bolt to the engine.

Fig 31: Identifying Transaxle Mounting Lower Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle assembly.
